How To Wire A Single Light Switch: A Professional Step-by-Step Installation Guide
Wiring a single-pole light switch safely involves interrupting the ungrounded hot wire feeding a lighting fixture by routing it through the switch terminals while maintaining continuity for the neutral and ground conductors. Executing this installation requires verifying zero energy state with a non-contact voltage tester, utilizing 14-gauge or 12-gauge copper wiring, and torquing terminal screws to manufacturer specifications.
Pre-Operation & Equipment Checklist
Executing a successful electrical installation requires careful preparation, adherence to the National Electrical Code (NEC), and the deployment of specialized tools to guarantee safety and long-term circuit reliability.
- Essential Gear, Tools, and Materials: Single-pole toggle or decora light switch, non-contact voltage tester, digital multimeter, wire strippers, Lineman's pliers, needle-nose pliers, insulated standard and Phillips screwdrivers, non-metallic cable connectors, electrical box, and NM-B (Non-Metallic Sheathed) copper cable (14 AWG for 15-amp circuits or 12 AWG for 20-amp circuits).
- Mandatory Prerequisite Knowledge and Standards: Familiarity with local building codes, NEC Article 404 guidelines governing switch installations, and fundamental circuit theory regarding single-pole control loops. The installer must confirm the circuit breaker rating matches the wire gauge size (15 amps maximum for 14 AWG; 20 amps maximum for 12 AWG).
- Estimated Budget and Duration Benchmarks: Financial investment ranges between fifteen and forty dollars for tools and materials if starting from scratch. Completion time for an experienced DIYer or apprentice ranges from thirty to forty-five minutes per junction box.
Step-by-Step Electrical Installation Workflow
Step 1: De-energize the Circuit and Verify Zero Voltage
Locate the main service panel and switch off the specific circuit breaker controlling the light switch junction box. Secure the breaker panel door with a lockout tag if working in a shared environment. Remove the existing switch plate cover and pull the switch assembly forward from the electrical box without touching exposed terminal screws. Use a non-contact voltage tester around all incoming and outgoing cables, then double-check your reading with a digital multimeter placed between the hot wire and the bare copper ground to confirm zero potential difference exists.
Warning: Never rely solely on breaker panel labeling. Always verify absolute zero voltage using a calibrated diagnostic tool directly at the work site before touching any bare copper or terminal screw.
Step 2: Prepare the Cable and Conductors
If working with a new installation or stripping existing wires back to clean copper, use a wire stripper designed for your specific gauge (14 or 12 AWG) to remove approximately five-eighths of an inch of plastic insulation from the ends of the hot, neutral, and ground wires. Inspect the exposed copper strands for nicking or scoring; any gouged conductor must be clipped off and stripped anew to prevent high-resistance hot spots. Bend a precise three-quarter loop into the bare ends of the hot conductors using needle-nose pliers, sizing the loop to match the circumference of the switch terminal screws.

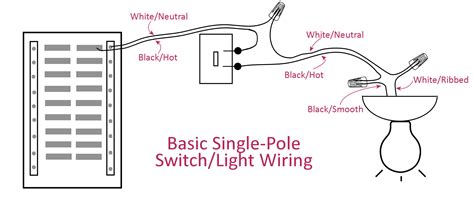

Step 3: Connect Ground, Neutral, and Hot Conductors
Connect the bare copper ground wires first. Twist the ground wire from the incoming power cable, the ground wire leading to the light fixture, and a six-inch green or bare copper pigtail wire together using an appropriately sized wire connector. Crimp them securely and fold the assembly neatly into the back of the electrical box, leaving the free end of the pigtail ready to attach to the green grounding screw on the switch. Note that neutral wires (usually white) bypass the single-pole switch entirely and must be joined together inside the box with a wire connector to maintain circuit continuity to the load. Loop the incoming ungrounded hot wire (usually black) clockwise around the top terminal screw of the switch, and loop the outgoing hot wire feeding the light fixture around the bottom terminal screw.
Pro-Tip: Always wrap wire loops clockwise around screw terminals. As you tighten the screw clockwise with a screwdriver, the turning motion pinches the wire loop tighter rather than pushing it outward.
Step 4: Secure the Switch and Install the Cover Plate
Tighten both terminal screws firmly to ensure a low-resistance connection, ensuring no bare copper insulation is pinched under the screw head and no excess copper is exposed outside the terminal block. Wrap a layer of electrical tape around the perimeter of the switch body to cover the terminal screws as an extra layer of arc protection. Gently fold the accordion-style wiring folds backward into the box, taking care not to dislodge any wire connectors. Push the switch body into the junction box, level the mounting yoke, and drive the top and bottom machine screws through the slotted mounting tabs until flush. Attach the decorative wall plate and tighten its center screw gently.
Step 5: Restore Power and Test System Functionality
Return to the main electrical service panel and switch the designated circuit breaker back to the ON position. Walk to the newly wired switch and toggle it up and down to verify mechanical actuation and smooth internal spring-action. Confirm that the connected lighting fixture illuminates when the switch is in the closed (ON) position and extinguishes completely when flipped to the open (OFF) position. If the light fails to operate or trips the breaker immediately, shut off power at the panel immediately and inspect your wiring configuration.
Two Switch One Light Wiring Diagram » Diagram Board
Technical Specifications and Wire Gauge Standards
| Parameter / Specification | 15-Amp Circuit Standard | 20-Amp Circuit Standard |
|---|---|---|
| Minimum Copper Wire Gauge | 14 AWG (American Wire Gauge) | 12 AWG (American Wire Gauge) |
| Maximum Circuit Breaker Rating | 15 Amps | 20 Amps |
| Standard Terminal Torque | 12 to 14 Inch-Pounds | 14 to 18 Inch-Pounds |
| Stripping Length for Terminals | 5/8 Inch (0.625 inches) | 5/8 Inch (0.625 inches) |
| Grounding Pigtail Requirement | Required (NEC Compliant) | Required (NEC Compliant) |
Common Site Failures and Field Fixes
- Root Cause: The light fixture remains constantly illuminated regardless of switch position.
- Actionable Fix: The hot wire from the power source and the hot wire leading to the light fixture are incorrectly landed on the same terminal, or a continuous hot bypass exists in the box. Power down the circuit, separate the hot conductors, and ensure each wire occupies a distinct terminal screw on the switch.
- Root Cause: Flipping the switch causes an immediate arc flash or trips the main circuit breaker.
- Actionable Fix: A dead short exists, typically caused by a loose hot wire touching the bare metal electrical box or a grounded neutral conductor touching a hot terminal screw. De-energize the circuit, inspect the terminal wrap, add electrical tape around the switch housing, and check that wires are properly folded inside a non-conductive box space.
- Root Cause: The light flickers intermittently when the switch toggle is bumped or operated.
- Actionable Fix: The wire loop around the terminal screw was wound counter-clockwise or the terminal screw was not torqued down adequately. Power down the system, remove the switch plate, reshape the wire loop in a clockwise direction, and retighten the terminal screw firmly against the copper conductor.
Frequently Asked Questions
Can I wire a single-pole light switch with the power left on?
Working on live electrical circuits presents severe electrocution risks and violates standard electrical safety codes like NFPA 70. Always switch off power at the main breaker panel and verify zero voltage with a tester before touching any wires.
Do white neutral wires connect to a standard light switch?
Standard single-pole light switches do not utilize neutral wires because they only interrupt the hot feed. The white neutral wires passing through the box must be spliced together continuously using a wire connector so the lighting fixture completes its return path.
What is the difference between a single-pole and a three-way switch?
A single-pole switch controls a single light fixture from one location and features two brass terminal screws plus a green ground screw. A three-way switch allows control of a fixture from two separate locations and features three brass terminal screws plus a ground screw.
Why does my switch feel hot to the touch after installation?
A warm or hot switch indicates a loose terminal connection, overloading of the circuit amperage limits, or an internal switch defect causing high electrical resistance. Turn off the breaker immediately, inspect the terminal screws for proper torque, and replace damaged hardware.
