How To Wire An Extractor Fan In A Bathroom Safely And Correctly

Wiring a bathroom extractor fan requires strict adherence to electrical codes, typically involving a dedicated circuit feed from a fused spur, a 3-pole isolator switch for maintenance safety, and proper integration with the lighting circuit via a timer-delay relay. Executing this installation successfully demands verification of dead circuits using a multimeter, maintaining safe zone clearances, and ensuring correct terminal identification for permanent live, switched live, and neutral conductors.

Pre-Operation and Equipment Checklist

Before beginning any electrical installation in a high-moisture environment, meticulous planning and adherence to regional building regulations—such as the IET Wiring Regulations in the UK or the National Electrical Code in the US—are mandatory. Bathrooms are categorized into specific zones based on the level of moisture ingress risk, which dictates the IP rating and exact positioning of your fan and switching equipment.

• Essential Gear and Tools: Digital multimeter or non-contact voltage tester, insulated VDE-rated screwdrivers (flathead and Phillips), wire strippers, cable cutters, utility knife, heavy-duty drill with core bits, fish tape, safety glasses, and a dust mask.
• Materials: 3-core and earth cable (typically 1.0mm² or 1.5mm² TPS/Twin and Earth depending on the circuit load), a 3-pole fan isolator switch, a 3-amp fused connection unit (unless spurred from an existing protected lighting circuit), cable clips, and damp-rated PVC junction boxes if required.
• Mandatory Prerequisite Knowledge: Competence in isolating power at the consumer unit, understanding circuit topographies (loop-in vs. junction box lighting systems), and knowledge of IPX4 minimum ingress protection requirements for splash zones.
• Estimated Scope: Duration ranges between 2 to 4 hours for a standard retrofit, requiring intermediate DIY electrical competence or a certified professional.

Step-by-Step Electrical Installation Workflow

Step 1: Power Isolation and Safety Verification

Locate your property's consumer unit (fuse box) and switch off the circuit breaker controlling the bathroom lighting and ventilation. Apply a physical lockout/tagout warning device to the breaker to prevent accidental re-energization by others. Proceed to the work area and use a calibrated digital multimeter or a reliable voltage tester to test between the live, neutral, and earth conductors at the installation point.

Warning: Never rely on wall switches alone to isolate a circuit. Always isolate at the main distribution board and double-check with a proven voltage indicator to verify zero energy state.

Step 2: Routing the Cable Infrastructure

Plan your cable path from the existing lighting circuit or fused spur to the 3-pole isolator switch, and subsequently from the isolator switch to the extractor fan housing. Run your 3-core and earth cable—comprising a brown permanent live, a black or grey switched live, and a green/yellow earth—through wall cavities, joists, or surface-mounted PVC conduit. Ensure cables are routed safely away from potential fastener paths, water pipes, and thermal insulation that could compromise current-carrying capacity.

Step 3: Installing the 3-Pole Isolator Switch

Mount the 3-pole fan isolator switch outside the bathroom or well beyond the splash zones (typically outside the room or high up on a wall outside Zone 2). Strip back the outer PVC sheath of the incoming and outgoing cables by approximately 50mm, and strip 8mm of insulation from individual copper conductors. Terminate the permanent live, switched live, and neutral wires into their respective clearly marked terminals on both the supply side and the load side of the isolator, ensuring no bare copper is exposed outside the terminal blocks.

Step 4: Mounting and Wiring the Extractor Fan Unit

Secure the fan body or duct liner through the core-drilled ceiling or wall penetration. Bring the 3-core and earth cable through the rubber grommet in the fan housing to maintain dust and moisture resistance. Locate the terminal block on the fan motor assembly, which typically features three primary connection points:

1. SL (Switched Live): Connected to the switched live conductor coming from the lighting circuit via the isolator, which triggers the fan when the bathroom light is turned on.
2. L or PL (Permanent Live): Connected to the permanent live conductor, supplying constant power to run the integrated timer-delay overrun mechanism after the lights are switched off.
3. N (Neutral): Completes the circuit loop back to the distribution board.
4. Earth Terminal (E): Connected to the protective earth conductor. If the fan is double-insulated (Class II, denoted by a double square symbol), safely terminate the earth wire in a dedicated connector block or parking terminal within the housing to maintain circuit continuity.

Step 5: Final Testing and Commissioning

Re-energize the circuit at the consumer unit. Test the functionality by turning on the bathroom light; the fan should engage immediately. Turn off the light; the fan should continue running for its pre-set over-run timer duration (usually between 2 and 30 minutes) before automatically shutting down. Verify that the mechanical duct shutter flaps open freely during operation and close completely when deactivated to prevent thermal drafts.

Technical Specifications and Component Parameters

Common Site Failures and Field Fixes

Even with careful installation, minor wiring discrepancies or mechanical errors can prevent proper operation. Review these frequent issues to diagnose and resolve problems quickly:

• Root Cause: Fan fails to run-on after the bathroom light is switched off.


  • Actionable Fix: The permanent live wire is either unpowered, disconnected at the isolator, or incorrectly wired into the switched live terminal instead of the permanent live terminal. Check continuity with a multimeter and re-route the conductor to the correct 'L' or 'PL' port.
• Root Cause: The miniature circuit breaker (MCB) trips immediately upon turning on the bathroom light.


  • Actionable Fix: A dead short exists, typically caused by a pinched neutral wire touching an earth conductor or a reversed live and neutral connection within the isolator switch. Inspect all terminal blocks for stray wire strands and verify insulation integrity.

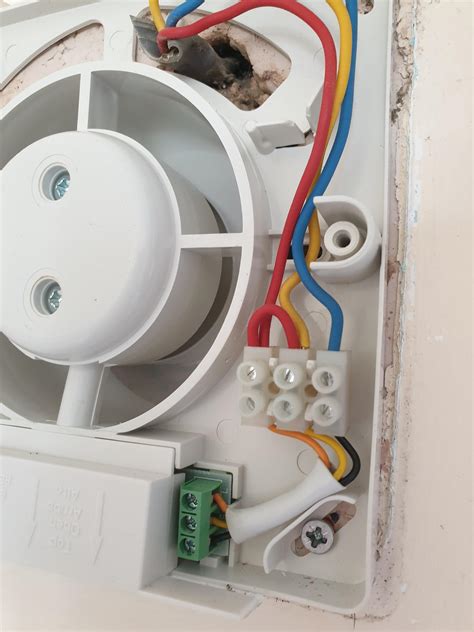

• Root Cause: The fan runs continuously without stopping.


  • Actionable Fix: The permanent live and switched live conductors are bridged or reversed, supplying continuous signal voltage to the trigger input. Isolate power and verify that the switched live is connected exclusively to the lighting switch feed.
• Root Cause: Excessive vibration noise during operation.


  • Actionable Fix: The fan housing was screwed unevenly onto an uneven wall or ceiling surface, warping the plastic chassis. Loosen the mounting screws slightly and insert rubber dampening washers between the chassis and the mounting surface.

Frequently Asked Questions

Can I wire a bathroom extractor fan directly to the lighting circuit?

Yes, you can wire an extractor fan directly into an existing lighting circuit, provided you incorporate a 3-pole isolator switch for maintenance safety and a timer-delay module if you want the fan to run after the lights are turned off. If the lighting circuit is protected by a high-amperage breaker, you may need to step down through a fused connection unit fitted with a 3-amp fuse.

Do extractor fans require an earth wire if they are plastic?

Many modern extractor fans are Class II double-insulated appliances, meaning they do not require an active earth connection to function safely. However, current electrical regulations still require you to run a 3-core and earth cable to maintain earth continuity throughout the circuit loop, terminating the bare copper earth wire securely in a connector block or dedicated parking terminal.

Where should the 3-pole isolator switch be placed?

The 3-pole isolator switch must be installed outside the bathroom or outside high-moisture splash zones (typically outside the room entrance or high up on a dry wall). This ensures that a technician or homeowner can completely disconnect all live and neutral poles safely without exposure to wet environments.

Why does my extractor fan have four terminals?

A four-terminal configuration typically includes Permanent Live (L), Switched Live (SL), Neutral (N), and Earth (E). The permanent live provides continuous power to run the run-on timer circuit, while the switched live acts as the trigger signal that tells the fan when the light switch has been activated.

What size cable should I use for a bathroom extractor fan?

For standard residential installations, a 1.0mm² or 1.5mm² 3-core and earth thermoplastic-sheathed (TPS) cable is standard. The exact size depends on the total cable run length, the installation method, and the protective device rating at your consumer unit.
