Mastering Vertical Pipe Support: How To Use Riser Clamps In Plumbing Systems

Properly using a riser clamp involves wrapping the heavy-duty steel clamp around a vertical pipe run, securely tightening the fastening bolts to a specified torque to establish a friction-grip, and allowing the clamp's extended ears to rest directly on the floor slab, structural steel, or engineered framing. This installation transfers the weight of the vertical pipe column and its fluid contents to the building's structural load-bearing components, conforming to MSS SP-58 standards. Following exact engineering protocols prevents pipe slippage, structural deflection, and mechanical system failures.

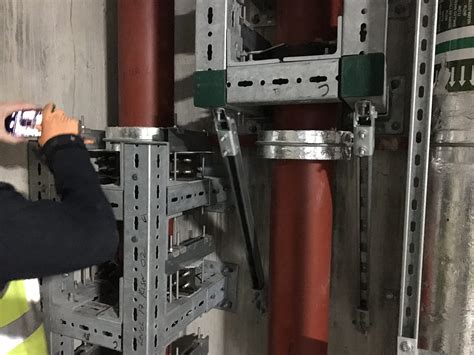

Engineering Standards and Pre-Installation Planning

Installing vertical pipe supports requires strict adherence to building codes and mechanical engineering standards. Under the Manufacturers Standardization Society (MSS) SP-58 and SP-69 guidelines, vertical pipe runs must be supported at specific intervals—typically at each floor level or at maximum intervals of 10 feet for copper and steel, and 4 feet for plastic piping like PVC, CPVC, and PEX.

Before mounting a riser clamp, you must calculate the total design load. This includes the dry weight of the piping material, the weight of the water filling the pipe during peak operation, and any additional inline valves or fittings. Riser clamps rely entirely on friction to prevent the vertical movement of the pipe. Therefore, choosing the correct clamp material, size, and fastening hardware is critical to avoiding structural collapse or catastrophic shear failure.

Required Materials, Tools, and Benchmarks

• Essential Gear and Equipment:




  • MSS SP-58 compliant riser clamps (carbon steel, copper-plated steel, or plastic-coated).
  • Calibrated torque wrench (measured in foot-pounds or inch-pounds).
  • Deep-well socket set and open-end box wrenches.
  • Threaded rod, washers, and heavy hex nuts (Grade 5 or higher if structural anchoring is required).
  • Metal strut channels (Unistrut) or structural steel angles for spanning wide floor slab penetrations.
  • Dielectric barrier material or rubber isolation inserts (for preventing galvanic corrosion or noise transmission).
  • Vernier calipers or pipe sizing tape.
  • Personal Protective Equipment: hard hat, safety glasses, cut-resistant gloves, and steel-toe boots.

• Mandatory Prerequisite Standards:




  • Familiarity with the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC) hanger spacing requirements.
  • Understanding of galvanic isolation principles (never place raw carbon steel in direct contact with copper piping).
  • Verification of floor slab load-bearing capacities from structural engineering blueprints.

• Project Benchmarks:




  • Estimated Budget: $15 to $150 per support location, depending on pipe diameter (2-inch to 12-inch) and structural steel requirements.
  • Estimated Duration: 30 to 45 minutes per clamp installation, excluding structural framing modifications.

Step-by-Step Riser Clamp Installation Protocol

Step 1: Calculate the Total Load and Define Hanger Locations

Analyze the plumbing schematics to identify floor penetrations and structural anchor points. Calculate the total weight of the vertical pipe run. For example, a 10-foot section of Schedule 40 steel pipe with a 4-inch nominal diameter weighs approximately 10.8 pounds per foot dry, and 16.3 pounds per foot when filled with water, totaling 163 pounds of dead weight per floor.

Identify the floor slabs where the clamp ears will rest. Ensure the slab edge or concrete core sleeve is structurally sound and free of loose debris. If the floor opening is larger than the wingspan of the riser clamp, plan to span the opening using structural steel channels anchored to the concrete floor.

Step 2: Select the Correct Clamp Material and Size

Measure the outer diameter of the pipe using a vernier caliper to ensure the clamp matches the exact outside diameter (OD) of the pipe, not just the nominal pipe size. Select the clamp material based on the piping metallurgy:

• Use copper-plated or plastic-coated riser clamps for copper tubing to prevent galvanic corrosion.
• Use electro-galvanized or hot-dip galvanized carbon steel clamps for carbon steel and ductile iron pipe.
• Use plastic-coated, rubber-lined, or standard carbon steel clamps over protective metal shields for plastic pipes (PVC/CPVC/PEX) to prevent the hard metal edge of the clamp from cutting into the pipe wall.

Warning: Never use a plain carbon steel riser clamp on a bare copper pipe. The dissimilar metals will initiate galvanic corrosion in the presence of ambient humidity, leading to localized pipe wall thinning and high-pressure pinhole leaks.

Step 3: Clean and Position the Pipe and Support Surfaces

Thoroughly clean the outer surface of the pipe where the clamp will sit. Remove all dirt, grease, cutting oils, and construction dust, as these substances significantly lower the coefficient of friction, reducing the clamp's load capacity and causing the pipe to slip.

Position the clamp around the vertical pipe. Ensure the clamp is oriented correctly: the flat face of the "ears" or "wings" must face downward toward the load-bearing surface (floor slab or structural channel). The ears must extend equally on both sides of the pipe to distribute the load evenly across the structural opening.

Step 4: Assemble the Fastening Hardware

Insert the structural bolts through the non-threaded ear holes of the two clamp halves. Thread the heavy hex nuts onto the bolts by hand. Ensure that the distance between the clamp ears on both sides of the pipe is equal. If one side is tightened completely while the other side remains loose, the clamp will sit crooked, causing uneven pressure distribution and decreasing the overall holding power of the support assembly.

Pro-Tip: Install lockwashers or use nylon-insert locknuts (Nyloc) in high-vibration environments, such as pump discharge risers or mechanical rooms, to prevent the fastening hardware from backing off over time.

Step 5: Torque the Bolts to Engineering Specifications

Use a calibrated torque wrench to tighten the fastening bolts. Tighten the bolts in an alternating pattern, turning the nut on the left side three to four rotations, then repeating on the right side. This ensures the two clamp halves draw together evenly and parallel to each other.

Tighten the hardware to the manufacturer's recommended torque values. For standard 3/8-inch carbon steel bolts on a small-diameter pipe clamp, this typically ranges between 20 to 25 foot-pounds. For larger high-strength structural bolts (such as 5/8-inch or 7/8-inch bolts on heavy-duty industrial clamps), torque values can exceed 100 foot-pounds.

Step 6: Verify Load Distribution and Anchorage

Slowly lower the vertical piping system until the riser clamp's ears make complete contact with the floor slab, structural steel, or support channels. Use a level to ensure the pipe remains perfectly plumb. Check that both ears of the clamp sit flat on the bearing surface.

If one ear is suspended in the air or carrying less load, shim the gap with structural steel shims or adjust the support channels until the load is split 50/50 between both sides of the clamp. For high-rise construction or areas subject to seismic activity, anchor the ears of the clamp to the concrete slab using approved masonry drop-in anchors and hold-down clips.

Riser Clamp Sizing and Load Performance Specifications

The table below provides engineering parameters for standard carbon steel riser clamps supporting vertical pipe runs. These metrics conform to standard industrial manufacturing tolerances and apply to both copper-plated and plain carbon steel configurations.

Structural Failures and On-Site Correction Procedures

Scenario 1: Pipe Slippage Through the Clamp Body

• Root Cause: The clamp bolts were under-torqued during installation, or the installer failed to clean cutting oils and grease from the pipe exterior. The friction coefficient was too low to hold the vertical wet-weight of the pipe column, causing it to slip downward through the closed clamp.
• Actionable Fix: Relieve the load on the clamp using temporary rigging or hydraulic jacks placed beneath an lower horizontal run or pipe fitting. Loosen the clamp bolts entirely, slide the clamp up, and thoroughly clean the pipe and clamp contact areas with a degreasing solvent. Reposition the clamp, and use a calibrated torque wrench to tighten the bolts to the exact torque specification shown in the manufacturer's documentation. Remove the temporary rigging and inspect for movement.

Scenario 2: Galvanic Corrosion at Support Points

• Root Cause: A raw carbon steel riser clamp was installed directly onto a bare copper vertical domestic water line, causing an electrochemical reaction that corroded the copper pipe wall.
• Actionable Fix: Erect temporary support scaffolding to hold the weight of the copper riser. Loosen and remove the corroded steel clamp. Inspect the copper pipe for structural integrity; if the wall thickness is compromised by more than 10%, cut out and replace the damaged copper section. Install a new copper-plated, PVC-coated, or epoxy-coated riser clamp. Alternatively, wrap the copper pipe in a commercial-grade elastomer isolation membrane (such as neoprene or heavy-duty 10-mil pipe wrap tape) before fastening a standard steel clamp over the protected area.

Scenario 3: Deformation and Crushing of Plastic (PVC/CPVC) Pipes

• Root Cause: The installer over-tightened the riser clamp bolts on a plastic pipe run, or failed to use a protective metal shield, causing the hard metal edges of the clamp to bite into and deform the soft thermoplastic pipe under load.
• Actionable Fix: Support the plastic vertical line using temporary strap hangers. Remove the over-tightened riser clamp. Inspect the plastic pipe for cracking, gouges, or severe deformation; replace any compromised sections of pipe. Install a structural pipe sleeve or a heavy-duty metal protection shield (such as an MSS SP-58 Type 40 shield) around the pipe. Install a new riser clamp over the shield, tightening the bolts only to the plastic pipe manufacturer's recommended torque limits—which are significantly lower than those for steel.

Scenario 4: Uneven Load Distribution Causing Pipe Deflection

• Root Cause: The concrete floor penetration sleeve was cast off-center, or the floor slab surface is un-level, causing only one ear of the riser clamp to contact the floor structure. This creates an eccentric load, bending the pipe off-plumb and stressing the downstream joints.
• Actionable Fix: Install adjustable, heavy-duty Unistrut metal framing or structural steel angles across the opening. Level the new structural steel platform perfectly using a spirit level and shim plates. Lower the riser clamp ears onto the newly leveled steel platform so that both ears sit completely flat and carry equal weight, restoring the vertical alignment of the pipe.

Frequently Asked Questions

Can you use a riser clamp to pull a pipe upward or adjust its elevation?

No, riser clamps are not designed for lifting or adjusting pipe elevation. They are structural load-bearing devices that rely on friction to hold a pipe's existing position. Trying to adjust a pipe's height by tightening a riser clamp and prying against a concrete floor slab can damage the pipe wall or strip the clamp threads. Use chain hoists, hydraulic jacks, or temporary rigging to adjust pipe elevation before locking it in place with a properly torqued riser clamp.

How often should riser clamps be installed on vertical pipe runs?

According to model plumbing codes (IPC and UPC) and MSS SP-69 standards, vertical steel and copper pipes must be supported at least once per floor level, or at maximum intervals of 10 feet. For vertical plastic piping systems like PVC, CPVC, and PEX, supports must be placed at smaller intervals, typically every 4 feet, along with mid-story guides to prevent lateral bowing or thermal expansion deflection.

What is the difference between a pipe clamp and a riser clamp?

A standard pipe clamp (such as a split-ring hanger or a clevis hanger) is suspended from an overhead threaded rod to support horizontal pipe runs, allowing for lateral movement caused by thermal expansion. A riser clamp is specifically engineered for vertical piping. It wraps around the pipe and has extended flat wings that rest on floor slabs or structural steel framing, transferring the entire vertical load of the pipe down to the building's main structure.

Is it acceptable to weld a riser clamp directly to a steel pipe?

Welding a riser clamp to a pipe is generally not permitted unless specified by a structural engineer and detailed in the project specifications. Standard riser clamps are engineered to function as friction-fit devices. Welding them directly to the pipe can alter the metallurgy of both the pipe and the clamp, potentially introducing localized stress concentrations, micro-cracks, and structural vulnerabilities that can fail under high-pressure conditions.
