Master Enclosure Acoustic Tuning: How To Tune A Subwoofer Box For Maximum Level & Bass Extension

Tuning a subwoofer box involves altering its physical port dimensions—specifically port length and cross-sectional surface area—relative to the internal net air volume to establish a target resonant frequency ($F_b$). Extending port length or reducing port cross-sectional area lowers the tuning frequency, while shortening the port raises it. Precise acoustic alignment requires physically locating the driver's cone excursion minimum using low-frequency sine wave sweeps and configuring the amplifier subsonic filter 3 Hz below the measured resonant point to prevent mechanical damage.

Acoustic Calculations & Enclosure Pre-Flight Protocols

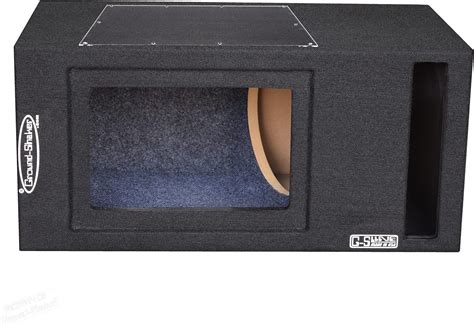

Before physically altering an enclosure or adjusting signal processing, you must establish baseline measurements of both your physical enclosure and the subwoofer driver's Thiele-Small (T/S) parameters. Physical tuning applies primarily to vented (ported), passive radiator, and bandpass enclosures. Sealed enclosures do not have a port frequency ($F_b$); their system resonance ($F_{c}$) is controlled strictly by internal enclosure volume ($V_b$) and air spring compliance.

Modifying port length alters the mass of the air column inside the vent. This air column interacts with the compliance of the air trapped inside the enclosure, creating a Helmholtz resonator. Lowering the resonant frequency demands a longer port or a smaller port cross-sectional area, whereas raising the resonant frequency requires a shorter port or a larger cross-sectional area.

Pre-Tuning Equipment & Parameter Checklist

• Essential Diagnostic & Execution Tools:




  • Digital Multimeter (DMM) capable of measuring AC voltage and low resistance ($\Omega$).
  • Audio Signal Generator app or test disc producing clean, uncompressed sine wave sweeps (20 Hz to 80 Hz in 1 Hz increments).
  • Measuring tape, digital calipers, and T-square for accurate port volume calculations.
  • Precision cutting tools (jigsaw, router with flush-trim bit, or table saw) and medium-density fiberboard (MDF) or Baltic Birch plywood for port wall extensions/reducers.
  • Acoustically non-hardening silicone sealant, wood glue, and clamping hardware.
  • Dense synthetic poly-fill (polyester fiberfill) or open-cell acoustic foam (optional for minor apparent volume modification).

• Mandatory Technical Parameters to Identify:




  • Driver Free-Air Resonance ($F_s$): The frequency at which the subwoofer driver's moving parts naturally oscillate.
  • Total Driver Q-Factor ($Q_{ts}$): Determines the mechanical and electrical damping characteristic of the driver. Values below 0.40 favor ported enclosures; values above 0.45 favor sealed designs.
  • Equivalent Compliance Volume ($V_{as}$): The volume of air that has the same acoustic compliance as the driver's suspension.
  • Net Enclosure Internal Volume ($V_b$): Total internal volume minus driver displacement, port structure displacement, and internal bracing.

• Execution Benchmarks:




  • Estimated Duration: 2 to 4 hours (includes measurement, physical port adjustment, and electrical filter calibration).
  • Project Budget: $0 to $60 (depending on whether existing port materials are modified or new port tubes/aeroports are installed).
  • Technical Skill Requirement: Intermediate car/home audio fabrication and basic AC electrical measurement capabilities.

Step-by-Step Port Tuning and Signal Alignment Workflow

Step 1: Establish Target Tuning Frequency ($F_b$) Based on Driver T/S Parameters

Begin by determining the optimal tuning frequency ($F_b$) for your specific listening goals and driver limitations. Tuning too far below the driver's natural free-air resonance ($F_s$) causes rapid power handling degradation, while tuning too high results in a sharp, boomy upper-bass peak with zero low-frequency extension.

1. Locate the driver's manufacturer specification sheet to find $F_s$ and $Q_{ts}$.
2. Calculate the Efficiency Bandwidth Product (EBP) using the formula: EBP = $F_s$ / $E_s$ (where $E_s$ is electrical Q, $Q_{es}$). An EBP near or above 80 dictates a vented enclosure design.
3. Select your target tuning frequency ($F_b$):


   • Sound Quality (SQ) / Deep Low-End Extension: Tune between 28 Hz and 32 Hz. Ideal for music featuring sub-35 Hz bass notes (reggae, modern hip-hop, organ tones).
   • Daily Balanced Output: Tune between 33 Hz and 37 Hz. Provides an optimal blend of transient response, power handling, and output across general pop, rock, and electronic genres.
   • SPL / Maximum Output Competition: Tune between 38 Hz and 45 Hz (or to the vehicle cabin's structural resonant frequency). This maximizes peak acoustic pressure within a narrow bandwidth.

Warning: Never physically tune a ported enclosure more than 15% below the driver's natural $F_s$. Doing so unloads the cone excessively across operational bandwidths, causing the voice coil to bottom out against the backplate, leading to physical damage.

Step 2: Measure Net Internal Enclosure Volume ($V_b$) and Current Port Dimensions

Accurate tuning adjustments require precise measurement of the current air mass inside the box. Measuring gross external volume will yield inaccurate tuning calculations.

1. Measure internal enclosure height, width, and depth in inches. Multiply these dimensions and divide by 1,728 to calculate Gross Internal Volume in cubic feet ($ft^3$).
2. Subtract the volume displaced by the physical subwoofer driver (typically 0.05 to 0.20 $ft^3$, listed in driver specs).
3. Subtract internal bracing displacement and physical port wall material volume.
4. Calculate current Port Surface Area ($A_v$):


   • For Slot Ports: $A_v = \text{Height} \times \text{Width}$ (in inches).
   • For Round Ports/Aeroports: $A_v = \pi \times r^2$ (where $r$ is the internal radius in inches).
5. Measure the physical centerline Port Length ($L_v$) from the outer face of the flare to the inside termination of the port wall.

Step 3: Modify Physical Port Dimensions to Shift Tuning Frequency

To lower $F_b$, you must lengthen the port ($L_v$) or reduce the cross-sectional area ($A_v$). To raise $F_b$, you must shorten the port or increase the cross-sectional area.

1. Calculate the required port length ($L_v$) for your target tuning frequency ($F_b$) using the classical physical vent equation:

$$L_v = \left( \frac{1.463 \times 10^7 \times A_v}{F_b^2 \times V_b} \right) - 0.732 \times \sqrt{A_v}$$

Where $L_v$ is port length in inches, $A_v$ is port area in square inches, $V_b$ is net box volume in cubic feet, and $F_b$ is target frequency in Hertz.

1. Physical Extension (Lowering $F_b$):


   • Round Aeroports: Remove the inner flare, add a PVC or ABS pipe coupling, attach a longer section of pipe, and reattach the inner flare. Ensure the internal end of the port maintains a clearance from the back wall equal to at least the port's internal diameter.
   • Slot Ports: Secure an internal MDF L-turn extension onto the existing port wall inside the enclosure using wood glue and countersunk screws. Seal all internal seams with 100% silicone.
2. Physical Trimming (Raising $F_b$):


   • Use a flush-trim router bit or hand saw to shorten internal slot port walls or cut down external aeroport tubing.
3. Alternative Method (Poly-Fill Damping):


   • If physical port modification is constrained by cabinet geometry, add synthetic poly-fill at a density of 0.5 to 1.0 pounds per cubic foot of net enclosure volume. Poly-fill isothermally slows down air velocity, simulating a 10% to 15% expansion in virtual volume ($V_b$), effectively lowering physical resonance ($F_b$) by approximately 1 to 3 Hz.

Pro-Tip: Ensure minimum port area requirements are satisfied to prevent acoustic turbulence. Maintain 12 to 16 square inches of port area ($A_v$) per cubic foot of net internal volume ($V_b$) for slot ports, or 8 to 10 square inches per cubic foot for dual-flared aeroports.

Step 4: Validate Physical Resonance ($F_b$) Using a Sine Wave Sweep

Never assume calculated port lengths match real-world tuning. Boundary loading inside a trunk or room and boundary layer friction inside the port will lower actual physical resonance below paper calculations.

1. Disconnect high-frequency speakers and leave only the subwoofer connected to the amplifier channel.
2. Turn off all bass boosts, equalizers, and signal processing on the head unit or DSP.
3. Play a low-amplitude sine wave sweep starting from 50 Hz down to 20 Hz in 1 Hz increments.
4. Observe driver cone displacement visually or place a light paper strip gently against the center dust cap:


   • Above Tuning ($F_b$ + 10 Hz): Cone displacement is high; low acoustic output comes from the port.
   • At Exact Tuning ($F_b$): Cone displacement drops to its absolute minimum (near total freeze), while air movement at the port exit reaches maximum velocity.
   • Below Tuning ($F_b$ - 10 Hz): Cone displacement increases rapidly (unloading) while port velocity collapses.
5. DMM Voltage Method (Precision Verification): Connect DMM test leads to the amplifier's speaker output terminals set to AC Volts. Play the 20–50 Hz sine wave sweep. The frequency that yields the minimum AC voltage reading represents the exact impedance minimum ($Z_{min}$) inside the ported system dip—this is your precise physical tuning frequency ($F_b$).

Step 5: Calibrate Active Subsonic Filters and DSP Crossovers

Physical port tuning is complete once $F_b$ is identified. You must now align signal processing to protect the woofer from mechanical destruction below $F_b$.

1. Locate the Subsonic (Infrasonic / High-Pass) filter dial on your amplifier or within your DSP software interface.
2. Set the subsonic filter cutoff frequency precisely 3 Hz to 5 Hz below your measured physical tuning frequency ($F_b$).


   • Example: If physical measurement confirms $F_b$ = 32 Hz, set the subsonic filter to 28 Hz - 29 Hz.
3. Use a 24 dB/octave Butterworth or Linkwitz-Riley filter slope whenever available. A steep slope allows full mechanical output down to $F_b$ while aggressively rolling off dangerous sub-audible frequencies below the port's control threshold.
4. Set the Low-Pass Filter (LPF) between 60 Hz and 80 Hz with a 12 dB or 24 dB/octave slope to ensure smooth acoustic summation with mid-bass drivers.

Subwoofer Box Tuning Specifications by Performance Profile

Enclosure Tuning Failure Modes & Field Remedies

Port Noise and Air Turbulence ("Port Chuffing")

• Root Cause: Cross-sectional port area ($A_v$) is too small for the volumetric displacement ($V_d$) of the driver. Air velocity inside the port vent exceeds 35 meters per second (m/s), creating severe aerodynamic boundary turbulence and non-linear chuffing noise that masks bass notes.
• Actionable Fix: Replace sharp square-edged internal and external port walls with radiused flares (minimum 1-inch flare radius). If turbulence persists, expand total port surface area ($A_v$) while lengthening the port overall ($L_v$) to maintain target tuning frequency ($F_b$).

Mechanical "Bottoming Out" or Driver Over-Excursion Below Tuning

• Root Cause: Operating the subwoofer below physical tuning frequency ($F_b$) without an active subsonic (infrasonic) filter. Below $F_b$, air spring compliance collapses, causing the driver to behave as if it were mounted in free air (cone unloading).
• Actionable Fix: Immediately engage an active high-pass/subsonic filter on the DSP or amplifier. Set the cutoff frequency 3 Hz to 5 Hz below physical tuning ($F_b$) with a slope of at least 18 dB/octave or 24 dB/octave.

Boomy, Single-Note Bass Peak (Upper-Bass Swell)

• Root Cause: Enclosure tuned excessively high (above 40 Hz) in a small vehicle cabin, causing cabin gain (transfer function) to stack directly on top of the enclosure's natural port resonance peak. Alternatively, net enclosure volume ($V_b$) is undersized for the driver's total Q-factor ($Q_{ts}$).
• Actionable Fix: Extend internal port length ($L_v$) to drop physical tuning ($F_b$) into the 32 Hz–34 Hz range. If physical port lengthening is impossible, pack 0.75 lbs of loose poly-fill per cubic foot into the enclosure to artificially damp the system peak and lower $F_b$.

Acoustic Phase Cancellation at the Crossover Region

• Root Cause: Phase shift introduced by the port's 180-degree output rotation relative to the front cone motion near resonance, combined with improper phase alignment at the Low-Pass Filter (LPF) junction with cabin mid-bass speakers.
• Actionable Fix: Toggle the amplifier or DSP phase control switch between 0 and 180 degrees while playing a 60 Hz test tone. Select the setting that yields maximum measured output on a Sound Pressure Level (SPL) meter or RTA mic at the primary listening position.

Frequently Asked Questions

How do I determine the current tuning frequency of an unmarked subwoofer box?

Play low-frequency sine wave tones from 50 Hz down to 20 Hz in 1 Hz increments through your subwoofer system at low volume. Watch the physical displacement of the subwoofer cone; the exact frequency where cone movement comes to a near-complete stop while maximum air blows out of the port is your enclosure's physical tuning frequency ($F_b$).

Can I tune a ported subwoofer box lower without changing its physical size?

Yes, you can lower physical tuning without changing external enclosure dimensions by either lengthening the internal port structure (such as adding an internal L-turn extension or extending an internal aeroport tube) or by reducing the internal cross-sectional port area. Adding synthetic poly-fill dampening material internally will also lower tuning by 1 to 3 Hz by slowing internal sound wave velocity.

What occurs when a subwoofer box is tuned too low for the driver?

Tuning an enclosure significantly below the subwoofer's natural free-air resonance ($F_s$) suppresses acoustic efficiency across high-output bands and creates an uneven frequency response. The driver will lose acoustic damping across its intended operational passband, increasing mechanical stress while producing significantly lower overall Sound Pressure Level (SPL).

How does poly-fill affect the physical tuning frequency of a vented box?

Poly-fill slows the compression and expansion cycle of air molecules inside the cabinet through an isothermal thermodynamic transformation. This tricks the driver into acting as if it is in an enclosure that is 10% to 15% larger in net volume ($V_b$), effectively lowering the overall system resonant frequency ($F_b$) by roughly 1 to 3 Hz without structural rebuilding.

Where should an amplifier subsonic filter be set relative to port tuning?

Set your amplifier subsonic (infrasonic) filter precisely 3 Hz to 5 Hz below the measured physical tuning frequency ($F_b$) of the enclosure. For instance, if your box is physically tuned to 33 Hz, set the subsonic filter to 28 Hz or 30 Hz using a steep 24 dB/octave slope to protect the driver from catastrophic low-frequency over-excursion.

Calibrate Your Audio System for Peak Performance

Tuning your subwoofer box correctly balances physical vent dynamics with electronic signal control to achieve effortless, linear low-frequency response. Apply these measurement techniques and signal-filtering thresholds to your setup today to unlock maximum acoustic output while shielding your equipment from mechanical overload.
