How To Tram A Mill: A Precision Alignment Guide For Machinists

Tramming a vertical milling machine is the process of calibrating the spindle axis to be perfectly perpendicular to the X-Y travel of the worktable. By sweeping a dial test indicator mounted in the spindle across a wide path on the table, you can identify and eliminate angular errors in both the left-to-right tilt and front-to-back nod. Achieving a variance of less than 0.0005 inches over a six-inch sweep is the industry standard for ensuring flat surface finishes, accurate pocket depths, and prolonged cutting tool life.

Pre-Alignment Inspection and Tooling Requirements

Before making any adjustments to the machine head, you must ensure the milling machine is clean, stable, and free of mechanical interference. Debris, microscopic burrs on the table, or a loose spindle quill can introduce measurement errors that make accurate tramming impossible.

Always stone the table surface lightly with a fine-grit oilstone and WD-40 or light spindle oil before beginning. This removes raised metal around accidental nicks and dings without wearing down the cast iron table. Wipe the surface completely clean with a lint-free cloth. Inspect the spindle taper and ensure the collet or tool holder runs true with minimal runout.

Equipment and Resource Checklist

• Essential Gear & Tools:




  • Dial test indicator (lever-type, 0.0005-inch or 0.0001-inch graduations).

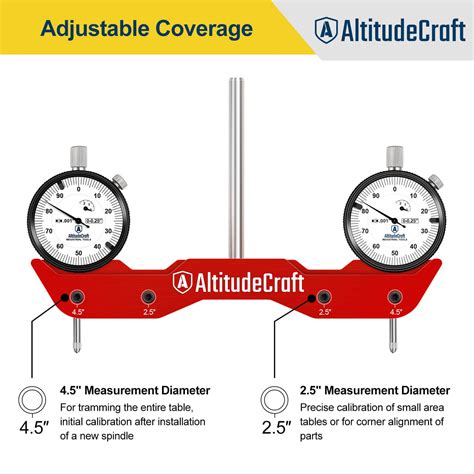

  • Universal indicator holder (or a dedicated tramming bar/fixture).
  • Fine-grit India oilstone and light lubricating oil.
  • Precision ground 1-2-3 blocks or a parallel bar (optional, for spanning table T-slots).
  • Wrenches or sockets sized for your mill's head-locking nuts and tilt adjustment screws.
  • Brass drift punch and deadblow hammer (for stubborn older manual mills).

• Mandatory Prerequisite Knowledge:




  • Understanding the difference between the tilt axis (rotation in the X-Z plane) and the nod axis (rotation in the Y-Z plane).
  • Knowledge of cosine error and how to keep the dial indicator finger at a shallow angle (less than 15 degrees) to the measurement surface.
  • Basic torque sequence principles for machine tool fasteners.

• Project Benchmarks:




  • Estimated Budget: $40 to $250 (depending on indicator brand and fixture style).
  • Time Commitment: 20 to 45 minutes for manual Bridgeport-style mills.
  • Target Calibration Spec: Less than 0.0005 inches of runout over a 6-inch diameter sweep.

Precision Calibration: Step-by-Step Mill Tramming Workflow

Step 1: Set Up and Clean the Workholding Area

Ensure the mill's power is disconnected or the spindle is securely locked in neutral to prevent accidental rotation. Thoroughly clean the machine table, T-slots, and the spindle taper. Mount a high-quality collet or chuck into the spindle and secure it.

Lightly run a fine oilstone over the table area where the indicator will sweep. Wipe away any grit or residue. If your mill table has wide T-slots that your indicator point might fall into during rotation, place a pair of matched, precision-ground 1-2-3 blocks or a large ground parallel bar on the table surface to bridge the gaps.

Warning: Do not skip the stoning step. A single microscopic burr on a cast-iron table can throw off your dial readings by several thousandths of an inch, leading to a false calibration.

Step 2: Mount and Configure the Sweep Tooling

Secure your dial test indicator in an indicator holder mounted inside the spindle collet. Adjust the arm of the holder so that the contact point of the indicator describes a circle of approximately 5 to 6 inches in diameter when the spindle is rotated.

Lower the quill until the indicator's contact finger touches the table surface (or the precision block) and registers approximately half a revolution of preload on the dial face. Lock the quill in this vertical position to eliminate any mechanical play in the Z-axis.

Pro-Tip: Position the indicator's contact finger at an angle of 15 degrees or less relative to the table surface. Setting the finger too steep introduces cosine error, which compresses the scale of your readings and hides actual alignment errors.

Step 3: Calibrate the Left-to-Right Tilt (X-Axis)

The left-to-right tilt is adjusted first because it is typically easier to control and has a dedicated worm gear adjustment on most Bridgeport-style vertical mills.

1. Rotate the spindle by hand to position the indicator at the far-left position (9 o'clock) on the table.
2. Set the bezel of the dial indicator to zero.
3. Slowly rotate the spindle 180 degrees to the far-right position (3 o'clock). Note the direction and magnitude of the needle movement.
4. If the dial reads positive or negative, the head is tilted. Slightly loosen the three or four locking nuts on the face of the milling head. Loosen them just enough so the head can move under friction, but not so much that it sags under its own weight.
5. Use the micro-adjusting screw or worm gear on the side of the head to tilt the spindle until the indicator shows exactly half of the measured error back toward zero.
6. Sweep back and forth between 9 o'clock and 3 o'clock, making micro-adjustments until the needle reads zero at both positions.

Step 4: Calibrate the Front-to-Back Nod (Y-Axis)

Once the X-axis is stable, proceed to the front-to-back nod, which controls perpendicularity along the Y-axis.

1. Rotate the spindle to place the indicator at the front of the table (6 o'clock) and zero the dial.
2. Rotate the spindle 180 degrees to the back of the table (12 o'clock) and read the deviation.
3. Loosen the locking bolts on the side of the ram adapter knuckle. Be cautious, as the weight of the motor can cause the head to nod forward abruptly once these bolts are freed.
4. Turn the Y-axis adjusting screw to bring the indicator back by half of the measured error.
5. Sweep between 6 o'clock and 12 o'clock, adjusting until the readings match.

Step 5: Secure the Fasteners and Run Final Verification

The act of tightening the head-locking bolts can pull the head out of alignment. You must secure the bolts using a progressive torque sequence to prevent warping.

1. Tighten the X-axis tilt locking nuts in a cross-pattern, applying torque in three incremental stages (e.g., 15 ft-lbs, 30 ft-lbs, and finally 45 ft-lbs).
2. Monitor the dial indicator while tightening. If you see the needle move, ease off the bolts and offset the head slightly in the opposite direction before retightening.
3. Tighten the Y-axis nod locking bolts in the same progressive manner.
4. Once all fasteners are fully torqued to specification, perform a final, uninterrupted 360-degree manual sweep of the spindle. The indicator should read zero (or within your target tolerance of 0.0005 inches) at the 12, 3, 6, and 9 o'clock positions.

Calibration Methodology and Tolerance Standards

Different alignment methods provide varying levels of speed, accuracy, and tool investment. The table below outlines the industrial standards and typical applications for each primary tramming methodology.

Diagnosing Alignment Anomalies and Mechanical Play

Even experienced machinists can encounter frustrating issues where indicator readings fail to repeat or drift during the calibration process. Use these real-world troubleshooting steps to resolve common alignment issues.

• Unrepeatable Indicator Readings (Chasing Zero)




  • Root Cause: The spindle bearings have excessive axial play, the quill lock is completely loose, or there is grit trapped inside the spindle collet holding the indicator fixture.
  • Actionable Fix: Snug the quill lock slightly to eliminate lateral play while still allowing the spindle to rotate freely. Remove the indicator tool, thoroughly clean the spindle taper with a wiping rag, inspect the collet face for burrs, and re-mount the tooling.

• The Head Shifts Position Significantly During Final Bolt Lockdown




  • Root Cause: Uneven clamping pressure on the swivel joint flange or worn, burred washers on the locking studs.
  • Actionable Fix: Replace worn hardened washers and clean any grease or oil off the clamping flanges. When tightening, use a progressive torque sequence, tightening each nut a fraction of a turn at a time. Anticipate the shift by setting the head slightly out of tram in the opposite direction of the pull.

• Perfect Tram at Table Level, but Heavy Error When Z-Axis is Raised




  • Root Cause: The mill column itself is out of square with the table's travel axes, or the knee/ways are worn unevenly (known as "saddle droop").
  • Actionable Fix: Check the column squareness using a precision cylinder square placed on the table. If the column is out of alignment on a knee mill, you must shim the base of the column or adjust the gibs on the slide ways to restore geometry.

• Inconsistent Readings When Crossing T-Slots




  • Root Cause: The indicator contact tip is catching on the chamfered edge of the T-slots or falling slightly into the slots during rotation.
  • Actionable Fix: Place matched 1-2-3 blocks on either side of the table to provide a continuous, elevated flat surface for the indicator finger. Ensure the blocks are clean and free of burrs.

Frequently Asked Questions

How often should I tram my vertical milling machine?

You should tram your mill after any major tool crash, when changing heavy setups, or before machining parts that require high flat-surface accuracy. In a standard production or job shop environment, check the tram at least once a month to compensate for vibration and thermal cycling.

Can I tram a mill head if it doesn't have a nodding axis?

Yes, many smaller benchtop mills and some heavy-duty industrial vertical mills only have a left-to-right tilt axis and no built-in nod adjustment. To correct front-to-back nod errors on these machines, you must shim the column-to-base joint or the headstock mounting plate using precision brass or steel shim stock.

Is a dial test indicator better than a plunger indicator for tramming?

A dial test indicator (lever-type) is superior for tramming because its contact point pivots on an arc, which minimizes sliding friction and lateral forces that can bend a standard plunger-type indicator stem. This pivoting design allows for smoother readings across cast iron table surfaces and T-slots.

Why do I get different readings when the quill is extended versus retracted?

This discrepancy is caused by wear in the quill housing bores, which allows the quill to tilt under the weight of the spindle and motor when extended. Always tram your mill with the quill retracted as far as possible up into the head, locking it lightly to eliminate mechanical play.

How does tramming affect surface finish?

When a mill head is out of tram, face mills and fly cutters will cut deeper on one side than the other. This leaves a stepped, ridged finish on the workpiece rather than a smooth, flat surface, and forces the cutting teeth to take uneven chips, accelerating tool wear.
