How To Tell If A Chimney Flue Is Open: A Complete Safety Guide
To determine if your chimney flue is open, look directly up into the fireplace throat with a flashlight to verify that the metal damper plate is angled vertically, feel for a distinct flow of cold air descending into the firebox, or hold a smoldering newspaper roll near the opening to confirm that smoke is pulled upward. Attempting to light a fire with a closed flue will immediately backdraft toxic smoke and carbon monoxide into your living space.
Pre-Inspection Safety Protocols & Tool Checklist
Before attempting to inspect or operate your chimney damper, you must establish a safe working environment. Working inside a fireplace hearth exposes you to accumulated soot, acidic creosote, and potentially sharp metal components. Additionally, operating a damper mechanism requires manual dexterity to avoid pinches or structural damage to old cast iron assemblies.
Always ensure the fireplace is completely cold to the touch. Do not attempt to inspect the flue if hot coals or embers are present from a previous fire, as toxic, odorless carbon monoxide gas can pool in the firebox even without visible smoke.
Essential Inspection Inventory
To safely and effectively inspect your chimney flue, gather the following gear and review the baseline project parameters:
- Safety Gear: Heavy-duty leather work gloves (to protect against sharp metal edges and soot) and ANSI-approved safety glasses (to shield eyes from falling soot or debris).
- Tools: A high-lumen LED flashlight or headlamp.
- Testing Materials: A single sheet of black-and-white newspaper or a long utility match.
- Prerequisite Knowledge: Identify whether your system utilizes a traditional throat damper (located just above the firebox) or a top-mount damper (located at the very top of the chimney cap).
- Estimated Duration: 2 to 5 minutes.
- Project Budget: $0 (assuming standard household tools are available).

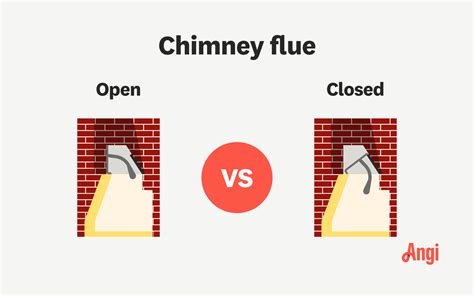

How to Verify Your Chimney Flue Status
Follow these structured diagnostic procedures to confirm whether your chimney flue is open or closed before striking a match to light your fireplace.
Step 1: Perform a Visual Inspection (The Flashlight Method)
The most reliable way to confirm the position of your damper is through direct visual confirmation. Because the throat of a fireplace is designed to narrow sharply to increase draft velocity, finding the damper plate requires looking past the lintel.
- Put on your safety glasses and leather gloves.
- Kneel down in front of the hearth and position your head completely inside the firebox opening.
- Point your high-lumen LED flashlight straight up through the opening directly above the hearth (known as the throat of the chimney).
- Examine the metal framework. If you see a flat, horizontal cast-iron or steel plate completely blocking the dark vertical passage, the damper is closed. If the metal plate is flipped vertically on its pivot, or if it has swung entirely out of the way to reveal a dark, open passage leading up into the clay flue tile liner, the damper is open.
Warning: Never stick your face directly into the throat of the chimney if you suspect soot or loose debris is falling. Always wear safety glasses, as loose creosote flakes can cause painful corneal abrasions.
Step 2: Execute a Physical and Tactile Verification
If soot accumulation or poor lighting prevents a clear visual check, you must interact with the control mechanism. Dampers are mechanical valves operated by levers, chains, or rotary dials.
- Locate the control mechanism. For a throat damper, this is typically a metal handle located on the interior front wall of the fireplace throat, or a rotary knob mounted on the exterior lintel wall just above the opening. For a top-mount damper, you will find a stainless steel chain anchored to a brass or iron bracket on the side wall of the firebox.
- Test the mechanical resistance.
- For push-pull levers: Push the lever upward and forward toward the back of the chimney to open it. Pulling it down and forward toward the room typically locks it closed in a notched groove.
- For rotary screw controls: Turn the handle clockwise to raise the damper plate to its open position. Turn it counterclockwise to seal it.
- For spring-loaded top-mount chains: Pull the chain down slightly and release it outward from the retaining bracket. The spring at the top of the chimney will pull the chain upward, opening the cap. To close it, pull the chain down firmly and lock a chain link into the wall-mounted bracket.
- Listen and feel for structural movement. You should hear the distinct clink of cast iron meeting iron or the shifting of a heavy metal plate. If the control moves with zero resistance and no sound, the linkage may be broken.
Step 3: Conduct the Temperature and Draft Assessment
Chimneys act as natural thermal pumps, drawing air out of the home due to differences in air pressure and temperature between the interior and exterior environments. You can leverage this physical law to verify your flue status.
- Place your bare hand directly inside the center of the open firebox.
- Pay attention to the movement of air. If the damper is open, and the outdoor temperature is colder than the indoor temperature, you will immediately feel a distinct, cold downdraft of air rushing down the chimney and across your skin.
- If the air inside the firebox feels completely stagnant, warm, and insulated from the outside climate, the damper plate is highly likely closed, sealing out the outdoor air.
Pro-Tip: If your home is highly insulated and tightly sealed, a closed flue can sometimes create a slight vacuum. Cracking open a nearby window by one inch during this test can help initiate a clear, perceptible draft if the flue is open.
Step 4: Execute the Controlled Smoke Test
If you are still uncertain after visual and physical checks, perform a smoke test. This is the final safety validation before loading firewood.
- Take a single sheet of newspaper and roll it tightly into a makeshift torch.
- Light one end of the rolled newspaper inside the firebox.
- Once it begins to burn, blow out the flame so that the paper smolders and produces a steady stream of thick, white smoke.
- Hold the smoldering paper high up inside the throat of the fireplace, right below the damper opening.
- Watch the trajectory of the smoke:
- If the smoke is drawn rapidly upward, curling cleanly into the throat and disappearing into the flue, the chimney is drafting correctly and the flue is open.
- If the smoke rolls lazily around the top of the firebox and spills out into the room, the flue is closed, or you are experiencing a "cold air plug" (where heavy, cold air is trapped in the chimney, blocking the draft).
How To Tell If HVAC Damper Is Open Or Closed | Storables
Technical Specifications of Common Damper Systems
Different fireplace designs utilize varying mechanical assemblies to control draft. Knowing the exact type of damper installed in your home allows for accurate troubleshooting and operation.
| Damper Type | Location | Operation Mechanism | Sealing Efficiency | Common Failure Points |
|---|---|---|---|---|
| Traditional Throat Damper | Located at the base of the chimney, just above the firebox throat. | Cast-iron pivot handle, rotary screw, or ratchet arm. | Moderate (metal-on-metal seal allows minor heat loss). | Rust from moisture; warped metal plates due to over-firing; broken cotter pins on the linkage. |
| Top-Sealing / Top-Mount Damper | Installed at the very top of the chimney stack, doubling as a chimney cap. | Stainless steel cable running down the flue to a wall bracket. | Excellent (rubber gasket seals tightly against the chimney top). | Cable snapping due to friction; spring mechanism seizing; animal nesting blocking the spring cap. |
| Vestal Damper | Built into historical masonry throats; uses a multi-position slotted bracket. | Flat steel poker handle that hooks into a series of teeth. | Moderate (prone to warping over decades of use). | Teeth on the adjustment bracket wearing smooth; handle slipping out of the adjustment slots. |
Common Flue Malfunctions & Diagnostic Fixes
Even when you follow the correct operational steps, age, wear, and environmental factors can prevent a chimney flue from opening. Below are the most common mechanical failures and how to remedy them safely.
Scenario 1: The lever moves freely, but the damper remains closed
- Root Cause: The cotter pin, connecting rod, or bolt linking the operating lever to the heavy cast-iron damper plate has sheared off, rusted through, or disconnected. The handle moves back and forth in the air without actually engaging the plate.
- Actionable Fix: Put on protective gloves and safety glasses. Use your flashlight to look up into the throat. Physically push the damper plate upward with a gloved hand or a piece of scrap wood. If it swings freely despite the lever position, the linkage is broken. You must replace the cotter pin or connecting bolt. Secure the damper in the open position manually if you require emergency heat, but do not burn wood long-term until a professional chimney sweep repairs the linkage.
Scenario 2: The damper is frozen solid and will not budge
- Root Cause: Rust, calcified soot, and corrosive creosote have bonded the cast-iron pivot points or the plate edges to the frame. This occurs most frequently in chimneys without a cap, where rain flows directly down the flue.
- Actionable Fix: Do not force the lever, as cast iron is brittle and can snap under sudden high pressure. Spray a generous amount of penetrating oil (such as WD-40 or PB Blaster) directly onto the hinges, pivot pins, and perimeter of the damper plate. Let the lubricant sit for 20 to 30 minutes. Take a rubber mallet or a block of wood wrapped in a towel and gently tap the underside of the damper plate to break the rust seal. Try operating the lever again. Once open, clean the edges with a wire brush to prevent future sticking.
Scenario 3: The flue is open, but smoke still backs up into the room
- Root Cause: This is typically caused by a "cold air plug" or a severe structural blockage. Heavy, dense cold air sitting inside an uninsulated exterior chimney acts like a solid barrier, preventing warm air from rising. Alternatively, animal nests or accumulated creosote may be physically blocking the passage.
- Actionable Fix: First, rule out physical blockages by shining a flashlight up the flue to check for debris. If clear, you must "prime" the chimney to break the cold air plug. Roll up a sheet of newspaper, light it, and hold it high up near the open throat for 1 to 2 minutes. The intense, localized heat will warm the air column, reversing the cold draft and initiating a positive upward draft. You will hear a distinct "whoosh" sound when the draft corrects itself.
Frequently Asked Questions
Can you leave a chimney flue open all the time?
No, you should not leave your chimney flue open when the fireplace is not in use. Leaving the flue open acts exactly like leaving a window wide open, allowing warm, conditioned indoor air to escape up the chimney during the winter, and bringing hot, humid air inside during the summer. Close the damper as soon as the ashes are completely cold to maximize your home's energy efficiency.
Which way is open on a chimney damper lever?
For standard throat dampers, pushing the lever upward and away from you (toward the back of the fireplace) opens the flue. Pulling the lever downward and toward the room (often hooking it into a notch) closes it. If your system uses a rotary knob on the outside of the brickwork, turning it clockwise opens the damper, while turning it counterclockwise closes it.
What happens if you light a fire with a closed flue?
Lighting a fire with a closed flue will cause smoke, soot, and dangerous combustion gases—including carbon monoxide—to rapidly fill your home. Because the smoke has no escape route, it will roll out of the fireplace opening and damage your walls, ceilings, and furniture. This also poses an immediate life-safety hazard due to smoke inhalation and toxic gas poisoning.
How do you open a chimney flue that is stuck?
To open a stuck chimney flue, spray penetrating oil onto the rusted hinges and linkages, let it penetrate for 30 minutes, and then tap the plate gently with a rubber mallet. If it is a top-mount damper, ensure the pull chain is not snagged on the fireplace wall and check that snow, ice, or debris is not weighing down the exterior cap assembly on your roof.
Why is cold air rushing out of my fireplace when the flue is closed?
If you feel a cold draft when the flue is closed, your damper plate is likely warped, rusted, or missing its seal. Traditional throat dampers feature metal-on-metal seals that do not form an airtight barrier. Over time, heat warps the iron, leaving gaps. Installing a top-sealing damper with a rubber gasket at the top of your chimney is the most effective way to eliminate these drafts.
Secure Your Home with Professional Chimney Care
To ensure your chimney operates safely and efficiently all season long, schedule a professional inspection with a CSIA-certified technician. Regular annual maintenance not only clears dangerous creosote build-up but also ensures your mechanical damper assemblies operate flawlessly.
