How To Sharpen Bandsaw Blades: A Professional Guide To Precision Maintenance

Sharpening bandsaw blades requires precise control of rake angles, tooth pitch, and gullet depth using a specialized triangular file or an automated grinding machine. Mastering this process restores cutting efficiency, prevents motor strain, and extends carbon-steel or bimetal blade longevity across hundreds of board feet of lumber.

Pre-Operation & Equipment Checklist

Maintaining bandsaw blades yourself significantly cuts down on consumable tooling costs, provided you employ the right workshop setup. Whether you are dealing with a narrow 1/4-inch scroll blade or a wide 1-inch resaw blade, preparation dictates the final cut quality. A dull blade forces woodworkers to apply excess feed pressure, which leads to blade drift, scorched lumber, and premature fatigue on the bandsaw's thrust bearings and rubber tires.

• Essential Gear, Tools, and Materials:

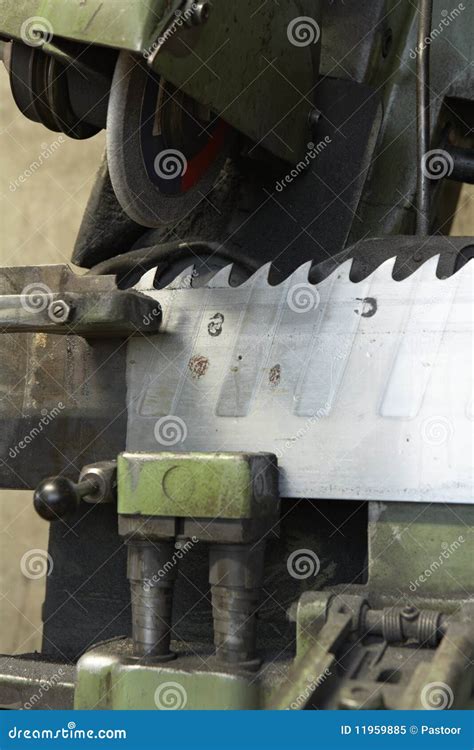

  • Slim taper triangular file (typically 4-inch or 6-inch regular or extra-slim, depending on tooth pitch) or a motorized bandsaw blade sharpener (CBN grinding wheel).
  • Vise or custom wooden blade-clamping jig designed to hold the blade flat and secure without marring the tooth set.
  • Heavy-duty leather work gloves and safety glasses (bandsaw teeth are razor-sharp during handling).
  • Solvent-based degreaser or mineral spirits and a brass wire brush for cleaning pitch and resin buildup.
  • Diamond-coated dressing stone or ceramic stick for deburring.

• Mandatory Prerequisite Knowledge and Standards:




  • Understanding tooth geometry: rake face, clearance face, gullet, and tooth set (alternate left/right or raker patterns).
  • Familiarity with carbon steel blades (hand-fileable) versus bimetal or carbide-tipped blades (require specialized diamond or CBN grinding infrastructure).

• Estimated Budget and Duration Benchmarks:




  • Manual filing kit investment: $15 to $30. Automated sharpening machine investment: $150 to $600+.
  • Time required per blade: 30 to 45 minutes for a standard 105-inch woodworking blade.

Step-by-Step Bandsaw Blade Restoration Workflow

Step 1: Blade Removal and Cleaning

Safely unload tension from your bandsaw tensioning mechanism and remove the blade from the wheels, wearing heavy leather gloves to prevent severe cuts. Lay the blade flat on a clean workbench or coil it carefully if transporting to a clamping station. Soak a rag in mineral spirits or a dedicated resin and pitch remover, then scrub the entire length of the blade. Pitch buildup insulates the steel, traps heat, and masks the true condition of the tooth tips, making accurate filing impossible.

Warning: Never attempt to clean or sharpen a blade while it is mounted under tension on running machine wheels. Always ensure zero energy state before handling removed blades.

Step 2: Securing the Blade in a Clamping Jig

Construct or mount a dedicated blade-holding jig consisting of two hardwood boards clamped together in a bench vise, with a channel routed out to expose only the teeth and gullets. The blade must be held firmly along its back edge so that the teeth project uniformly just above the wood surface. If the blade vibrates or shifts vertically while you apply filing pressure, your tooth heights will become inconsistent, causing a wavy cut.

Step 3: Determining the Tooth Geometry and Pitch

Count the number of teeth per inch (TPI) and examine the existing factory grind angle. Most standard woodworking bandsaw blades feature a 0-degree or 10-degree positive rake angle with a standard hook or skip tooth profile. Match your stroke style and file size to the tooth spacing; the triangular file must fit entirely into the gullet without jamming against the opposing tooth faces.

Step 4: Executing the Manual Filing Stroke

Starting at a marked reference tooth (use a piece of painter's tape), place the slim taper file into the gullet. Push the file horizontally and slightly downward, matching the original factory angle of the tooth face and the back clearance angle. Apply smooth, consistent forward strokes—typically two to three passes per gullet—ensuring you file every single tooth uniformly. Maintain an identical stroke count and pressure for every tooth to preserve balance and prevent tracking issues.

Pro-Tip: Mark your starting tooth with a permanent marker or a strip of colored tape so you know precisely when you have completed a full 360-degree circuit around the blade loop.

Step 5: Deburring and Inspection

Once you have completed the circuit around the entire blade, inspect every tooth under bright, angled lighting. Tiny wire edges or burrs will cling to the back of the cutting edges. Run a fine ceramic sharpening stone or a specialized leather strop lightly along the flat sides of the blade to remove these burrs. Clean the blade once more to eliminate metallic filings before reinstalling it onto your bandsaw wheels.

Bandsaw Blade Type and Maintenance Parameter Matrix

Common Blade Maintenance Failures and Field Fixes

Even experienced woodworkers encounter performance issues after sharpening a bandsaw blade manually. Recognizing the root cause of these cutting anomalies ensures rapid corrective action before ruining expensive lumber stock.

• Root Cause: The blade pulls aggressively to the left or right immediately upon entering the timber.




  • Actionable Fix: You applied uneven pressure or stroke counts while filing, resulting in an asymmetrical tooth set. Re-clamp the blade, check your set gauge, and carefully re-tension the set teeth using a specialized bandsaw tooth-setting pliers tool.

• Root Cause: The cut surface is extremely rough, leaving deep scoring marks on the wood.




  • Actionable Fix: One or more teeth were over-filed, making them taller than their neighbors, or a severe burr remains on the tooth tip. Inspect the blade under magnification, stone the sides flat, and level any high teeth down to match the rest of the profile.

• Root Cause: The blade snaps or cracks at the gullets shortly after being put back into service.




  • Actionable Fix: You created sharp, angular corners at the bottom of the gullets while filing, which act as primary stress risers. Always use a file sized correctly for the gullet radius and maintain sweeping, continuous strokes to keep gullets rounded.

• Root Cause: The saw makes a loud squealing noise and burns the wood without feeding properly.




  • Actionable Fix: The clearance angle behind the tooth points was lost during filing, causing the heel of the tooth to rub against the wood fibers instead of slicing them. Regrind the clearance face behind each tooth to re-establish the proper relief angle.

Frequently Asked Questions

How many times can you sharpen a bandsaw blade?

Standard carbon-steel woodworking bandsaw blades can typically be sharpened two to three times before the tooth set degrades and the steel becomes too brittle. Resharpening bimetal blades is possible multiple times using automated CBN grinding equipment, whereas carbide-tipped blades require industrial diamond wheel service providers.

Do I need to reset the tooth set every time I sharpen?

Not necessarily. If the blade tracks straight and the kerf width remains wide enough to clear the body of the blade without binding, you only need to sharpen the face and back of the teeth. If the blade starts pinching in the kerf, you must reset the alternate left-right angle using a blade setter.

Can narrow scroll bandsaw blades like 1/8-inch or 1/4-inch be sharpened?

Hand-filing blades narrower than 3/8-inch is extremely difficult because the tooth pitch is too fine for standard triangular files. Blades under 1/4-inch are generally treated as disposable consumables due to the microscopic scale of the teeth and the high risk of breaking the blade body.

Why is my newly sharpened blade cracking along the weld?

Blade cracking near the factory weld is usually caused by excessive blade tension on the bandsaw wheels combined with work-hardening of the steel during filing. Ensure your bandsaw tension gauge matches the blade width specifications and avoid inducing excessive heat while filing.

What is the best file size for a 4 TPI bandsaw blade?

A 4 TPI blade has wide tooth spacing and requires a larger file, typically a 6-inch regular or slim taper file. Matching the file face width to the gullet ensures that you can file the entire gullet and tooth face in a single, fluid motion without rounding over the cutting tips.

Upgrade your workshop efficiency today by establishing a regular blade inspection and maintenance routine that saves money and guarantees flawless lumber resawing results.
