How To Reset Trailer Brake System: Complete Diagnostic And Calibration Guide
Resetting a trailer brake system typically involves clearing electronic fault codes on proportional brake controllers, recalibrating inertia sensors, and manually adjusting mechanical star-wheels or bleeding hydraulic surge actuators. Performing this reset correctly restores synchronous braking force, prevents premature trailer tire lockup, and ensures DOT compliance for heavy loads.
Pre-Operation and Equipment Checklist
Understanding the architecture of your specific trailer braking system is essential before attempting a reset. Trailer brakes generally fall into two categories: electric brakes, which rely on a proportional or time-delayed electronic controller mounted in the tow vehicle, and surge brakes, which use a master cylinder actuator on the trailer tongue activated by vehicle deceleration momentum. Ensuring all components are functional prevents compounding electrical or hydraulic faults during the calibration phase.
- Essential Tools and Materials: Digital multimeter, wheel chocks, flathead screwdriver or brake spoon for manual star-wheel adjustment, jack and heavy-duty jack stands, heavy-gauge copper wiring repair kit, brake cleaner, and a high-temperature lithium-complex wheel bearing grease.
- Prerequisite Knowledge and Standards: Familiarity with 7-way blade trailer plugs, trailer breakaway kit battery voltage requirements (minimum 12.7 volts), and SAE J2867 standards for electric trailer brake controllers.
- Time and Budget Benchmarks: Budget between 45 minutes to 2 hours for a complete diagnostic and reset procedure, with an estimated cost of zero if tools are on hand, or up to fifty dollars if replacement seals, fuses, or brake cleaner are required.
Step-by-Step Trailer Brake Reset and Calibration Workflow
Step 1: Secure the Rig and Disconnect Power
Park the tow vehicle and trailer on a flat, level surface, place the transmission in park (or reverse for manual transmissions), engage the emergency parking brake, and chock the trailer wheels securely to prevent unintended rolling. Disconnect the 7-way blade connector from the tow vehicle to isolate the trailer's electrical circuit, and disconnect the breakaway switch cable temporarily to prevent accidental circuit energization during mechanical adjustments.
Warning: Never crawl underneath a trailer supported solely by a hydraulic or mechanical jack; always transfer the load to certified heavy-duty jack stands rated above the Gross Vehicle Weight Rating (GVWR) of the trailer.
Step 2: Clear and Reset Electronic Brake Controller Faults
Locate your aftermarket proportional or time-delayed brake controller inside the cab of the tow vehicle. Reconnect the 7-way trailer plug, turn the vehicle ignition to the ON position, and inspect the controller display screen for active diagnostic error codes such as "SC" (short circuit), "NC" (no connection), or "OL" (overload). Access the controller settings menu, select the factory reset or clear diagnostics option, and adjust the gain and boost levels back to their baseline manufacturer specifications.
Pro-Tip: If your controller lacks a digital menu reset, disconnecting the negative terminal of the tow vehicle's starting battery for ten minutes will perform a hard reset on the vehicle's towing module and integrated brake controllers.
Step 3: Perform Mechanical Star-Wheel Adjustment
Lift the trailer axle using a hydraulic jack placed securely on the frame rail, and place jack stands underneath for safety. Spin each trailer wheel by hand to check for drag, then locate the rubber dust plug on the backside of the brake backing plate. Remove the plug, insert a brake adjusting spoon or flathead screwdriver into the slot, and push the star-wheel upward (for most standard Dexter and Lippert axles) to expand the brake shoes until the wheel locks completely. Back the star-wheel off by clicking it downward between 8 to 12 notches until the wheel spins freely with only a faint, audible whisper of the friction material brushing against the brake drum.
Step 4: Calibrate Inertia Sensors and Conduct Dynamic Testing
Lower the trailer back to the ground, reconnect the breakaway cable, and perform a slow-speed test drive in a safe, controlled environment such as an empty parking lot. Accelerate to approximately 20 miles per hour and manually engage the brake controller override lever to verify that the trailer brakes pull the vehicle smoothly without grabbing or locking up. Adjust the controller gain upward if braking feels weak, or downward if the trailer tires skid, until the tow vehicle and trailer brake synchronously as a single unified unit.
How To Bleed Brakes After Changing Calipers at Sandra Moody blog
Trailer Brake System Types and Technical Specifications
| System Type | Primary Actuation Method | Adjustment & Reset Protocol | Maintenance Interval |
|---|---|---|---|
| Electric Brakes | 12V electromagnets and armatures | Manual star-wheel adjustment; controller soft/hard reset | Every 3,000 miles or annually |
| Surge Brakes | Hydraulic master cylinder and pushrod | Hydraulic bleeding; mechanical pushrod clearance check | Every 6,000 miles or bi-annually |
| Electric-Over-Hydraulic | Electro-hydraulic pump and actuators | Electronic controller calibration; line bleeding | Every 10,000 miles or annually |
Common Trailer Brake Failures and Field Fixes
- Root Cause (No Trailer Brakes Detected): Corrosion, oxidation, or physical damage inside the 7-way vehicle socket or trailer plug pins interrupting the blue brake power line.
- Actionable Fix: Clean the connector pins with fine-grain sandpaper and electrical contact cleaner, apply dielectric grease, and test continuity along the blue wire using a multimeter.
- Root Cause (Trailer Brakes Lock Up Instantly): The brake controller gain is set excessively high, or the inertia pendulum inside a proportional controller is improperly leveled.
- Actionable Fix: Level the controller mounting bracket strictly according to the manufacturer manual and reduce the gain setting incrementally until smooth deceleration is achieved.
- Root Cause (Intermittent Braking or Grabbing): Greased or contaminated brake friction linings caused by a failing inner grease seal on the spindle hub.

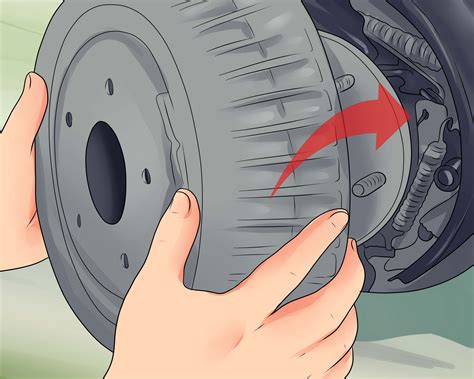

- Actionable Fix: Remove the brake drum, inspect the spindle seal, replace contaminated brake shoes, and clean the drum surface thoroughly with non-chlorinated brake cleaner.
Frequently Asked Questions
How do I know if my electronic trailer brakes have successfully reset?
A successful reset is indicated by the clearing of error codes on the tow vehicle's dash or brake controller display, accompanied by a balanced, proportional braking response during a low-speed manual override test. The trailer should decelerate smoothly ahead of the tow vehicle without jerking or locking its tires.
Why is my brake controller displaying a "No Connection" error after plugging in the trailer?
This error typically points to a broken ground wire, a blown fuse in the tow vehicle's dedicated towing circuit, or a corroded 7-way plug pin. Inspect the white ground wire connection on the trailer frame where it is bolted bare metal-to-metal, and check the vehicle's fuse box for open towing fuses.
How often should manual star-wheel adjusters be reset on standard electric brakes?
Manual star-wheel adjusters should be inspected, cleaned, and adjusted every 3,000 miles or at least once a season. Normal wear on the friction lining creates excessive clearance between the shoe and drum over time, which reduces overall braking efficiency if left unadjusted.
Can I reset surge trailer brakes electronically?
No, surge brakes are entirely mechanical and hydraulic systems that operate independently of electronic controllers. Resetting or servicing a surge system requires bleeding air from the hydraulic lines at the actuator and wheel cylinders, alongside checking the manual lockout solenoid during reverse maneuvers.
What causes a trailer breakaway battery to trigger a system fault?
A breakaway battery that falls below 10.5 volts will trigger a continuous fault state or engage the breakaway switch fail-safe. Test the battery voltage with a multimeter, clean the terminal connections, and replace the battery if it fails to hold a full 12-to-13-volt charge.
Ensure Safe Towing Performance Today
Take a proactive approach to road safety by regularly inspecting your connections, resetting controller parameters, and maintaining your trailer brake hardware before every long haul. Proper calibration safeguards your cargo, protects other motorists, and guarantees predictable handling in every driving condition.
