How To Replace Your Subaru Key Fob Battery: A Comprehensive Technical Guide

Replacing a Subaru key fob battery is a straightforward maintenance task that restores full proximity sensor functionality and remote locking/unlocking range. By utilizing a CR2032 3-volt lithium coin cell battery and following precise leverage techniques, vehicle owners can resolve low-power signal issues without requiring professional dealership intervention.

Essential Preparation and Tool Requirements

Before initiating the replacement process, ensure you have the correct battery chemistry and physical dimensions to maintain compatibility with your Subaru’s transmitter. Subarus manufactured from approximately 2010 to the present overwhelmingly utilize the CR2032 standard, but verification via the physical battery currently inside your fob is the safest practice.

• Essential Equipment:

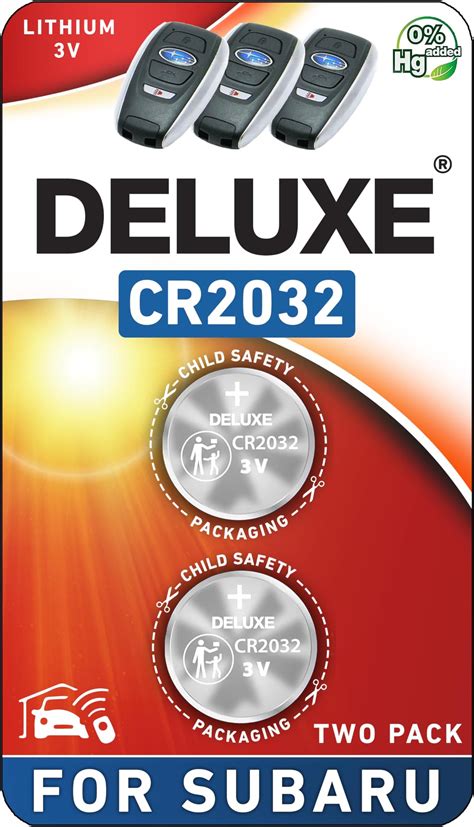

• One fresh CR2032 3V lithium coin cell battery (High-quality brands like Duracell, Energizer, or Panasonic are recommended for longevity).
• A small, flat-head precision screwdriver (typically 1.4mm or 2.0mm gauge).
• A clean, non-abrasive workspace to prevent surface scratching of the plastic housing.
• A soft microfiber cloth to wipe the internal battery contact points of oils or debris.
• Estimated Duration: 5 to 10 minutes.
• Estimated Cost: $3.00 to $7.00 depending on battery brand and quantity.

Procedural Execution: The Battery Replacement Workflow

The internal architecture of Subaru proximity keys varies slightly between the traditional tear-drop design and the newer rectangular push-button start fobs. The following steps address the most common variants found in models such as the Outback, Forester, Crosstrek, and Ascent.

Step 1: Extract the Mechanical Emergency Key

Every modern Subaru smart key contains a hidden mechanical key blade. On the back of the fob, look for a small sliding release lever or a depressed release button. Slide the lever or hold the button down, then pull the silver mechanical key blade out of the fob housing. This step is mandatory as it reveals the primary seam used to split the fob case.

Step 2: Pry the Transmitter Housing Open

Insert the flat-head screwdriver tip into the slot previously occupied by the mechanical key, or along the visible seam line if your specific model lacks a primary slot. Use gentle, even pressure to twist the screwdriver, causing the plastic casing to snap apart along the perimeter.

Warning: Do not force the screwdriver deep into the housing. Excessive depth can damage the internal printed circuit board (PCB) or the delicate micro-switches responsible for button activation.

Step 3: Remove the Expended Power Cell

Once the casing is separated, you will see the circular battery secured by small plastic clips or a metal contact plate. Use the precision screwdriver to gently lift the edge of the CR2032 battery from its seat. Note the orientation of the battery before removal; typically, the positive (+) side faces upward (away from the circuit board), but confirm this by looking for the engraved symbol on the contact plate.

Step 4: Clean and Seat the New Battery

Before inserting the new cell, inspect the metal contact fingers for oxidation or residue. Use your microfiber cloth to wipe these contact points clean. Slide the new CR2032 battery into the housing, ensuring it is flush and firmly clicked under any retaining tabs.

Pro-Tip: Avoid touching the flat surfaces of the new battery with your bare fingers. The oils from your skin can cause premature corrosion or create a high-resistance layer that disrupts current flow. Use non-conductive plastic tweezers or a clean cloth to handle the battery.

Step 5: Reseal and Test Functionality

Align the two halves of the key fob casing. Press firmly around the edges until you hear a series of audible snaps, indicating the plastic clips have re-engaged. Reinsert the mechanical key blade. Finally, move within range of the vehicle and test the lock, unlock, and panic functions to confirm the system is synchronized and operational.

Technical Specifications and Compatibility Matrix

The following table details the standard requirements for common Subaru transmitter models. While the CR2032 is the industry standard for Subaru, verify against your specific fob casing.

Troubleshooting Common Transmitter Failures

Even with a fresh battery, certain conditions can prevent the key fob from communicating effectively with the vehicle's immobilizer system.

• Root Cause: Dirty or Misaligned Contact Points.


  • Actionable Fix: If the fob remains unresponsive, open the case again and use a small amount of isopropyl alcohol on a cotton swab to clean the metal contact prongs. Ensure the prongs are slightly bent upward to maintain firm pressure against the battery surface.
• Root Cause: Improper Battery Orientation.


  • Actionable Fix: Remove the battery and verify the polarity. If the battery is installed upside down, the fob will not transmit. Ensure the positive symbol (+) is facing the orientation indicated by the markings on the PCB or the battery tray lid.
• Root Cause: Signal Interference or Desynchronization.


  • Actionable Fix: If the fob works inconsistently, check for external signal interference (e.g., proximity to high-frequency electronics). If the vehicle has been dormant for an extended period, you may need to perform a hard reset by pressing a button on the fob while standing inside the vehicle, or consult the owner's manual for remote-to-vehicle pairing procedures.

Frequently Asked Questions

How do I know if my Subaru key battery is dead?

The most common indicator is a significantly reduced range for the remote lock/unlock features, or the vehicle displaying a "Key Not Detected" warning on the multi-function display when attempting to start the engine. You may also notice the LED indicator on the key fob failing to illuminate when you press the buttons.

Does replacing the battery require reprogramming the key?

No, the Subaru key fob will retain its pairing information even when the battery is removed. The internal memory of the transmitter is non-volatile, meaning you can swap the battery as often as necessary without losing the link to your specific vehicle's immobilizer system.

Can I use a different battery size if I don't have a CR2032?

No, you must use a CR2032 battery. The number indicates the physical size (20mm diameter, 3.2mm height), and attempting to use a different size will either fail to fit within the housing or prevent the metal contacts from creating a circuit, potentially causing electrical damage to the fob.

What should I do if the key fob still doesn't work after battery replacement?

If the fob remains non-functional after ensuring the battery is correctly oriented and clean, the transmitter internal hardware may be faulty. Verify if the physical buttons are damaged or if the internal board has suffered water ingress. If issues persist, professional diagnostic testing at a certified service center is the recommended next step.

Restore Your Vehicle Access Today

Maintaining your Subaru’s key fob ensures you never face a lockout situation during your daily commute or remote adventures. Follow this guide to keep your transmitter operating at peak performance and ensure your vehicle remains accessible under all conditions.
