How To Repair A Leaning Fence: A Permanent Structural Restoration Guide
Fixing a leaning fence requires addressing the root structural failure rather than applying temporary cosmetic props, usually involving post stabilization, soil compaction, or complete post replacement. By utilizing proper concrete footings, heavy-duty brackets, and accurate grading techniques, you can permanently restore structural plumb and extend the life of your timber or vinyl boundary by over a decade.
Pre-Operation & Equipment Checklist
A successful structural stabilization project begins with accurate diagnostic assessment and the staging of heavy-duty construction gear. Most wooden and vinyl fences lean due to rot at the soil line, frost heave, or compromised concrete footings caused by poor drainage.
- Essential Tools & Materials: Post-hole digger, round-point shovel, heavy-duty framing level (minimum 4 feet), 4x4 or 6x6 pressure-treated replacement posts, quick-setting concrete mix, 2-inch exterior wood screws, galvanized mending plates, 4x4 post spikes, temporary 2x4 bracing lumber, and a sledgehammer.
- Prerequisite Knowledge & Standards: Verify underground utility lines by calling 811 before excavating. Local frost line regulations dictate that concrete footings must extend a minimum of 24 to 36 inches deep to prevent seasonal heaving.
- Project Benchmarks: Budget between fifty and three hundred dollars depending on whether you are bracing existing posts or pouring entirely new footings. Allocate one weekend for excavation, post setting, and concrete curing.
Step-by-Step Structural Realignment and Repair
Step 1: Structural Assessment and De-tensioning
Inspect the leaning section to determine if the failure lies in the wood post itself or the soil-concrete interface below grade. Remove any fence pickets, rails, or tension wires attached to the compromised post if it requires total extraction. If the post is merely loose within the footing, keep the panels intact for simultaneous realignment.
Warning: Never attempt to pull a leaning fence straight with a vehicle winch or strap without first excavating around the base, as this will snap the post at the rot line or warp the attached panels.
Step 2: Temporary Bracing and Excavation
Erect temporary structural bracing on the non-leaning side of the fence using 2x4 lumber screwed to the posts at a 45-degree angle and anchored into stakes driven into the ground. Dig out the soil and old concrete surrounding the failing post down to the bottom of the footing using a post-hole digger and a narrow trenching shovel.
Pro-Tip: Keep the excavation hole narrow and deep rather than wide; a bell-shaped hole that is wider at the bottom than the top provides superior resistance against future frost heave.
Step 3: Realignment and Post Stabilization
Use a sledgehammer and a wooden block to gently tap the post back into absolute plumb, verifying the alignment with a 4-foot carpenter's level on two adjacent sides. Secure the temporary braces tightly to hold the fence in this exact vertical position while you prepare the foundation. If using a steel mending stake to repair a partially rotted post set in solid concrete, drive the heavy-duty metal spike directly alongside the timber and bolt it securely through the post grain.
Step 4: Pouring the New Concrete Footing
Fill the excavated hole with fast-setting concrete mix, adding water according to the manufacturer specifications while constantly agitating the mixture with a stick to eliminate air pockets. Shape the top of the concrete surface into a slight dome sloping away from the wooden post using a trowel to ensure standing water drains away from the timber base. Leave the temporary braces in place undisturbed for a minimum of 48 to 72 hours to allow the concrete to reach its structural compressive strength before removing the supports.

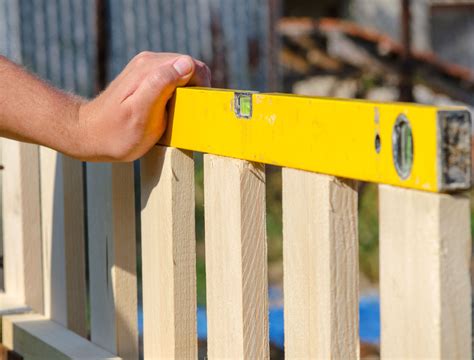

How to Fix a Leaning Fence
Fence Post Stabilization Methods Compared
| Stabilization Method | Best Applied To | Estimated Lifespan | Labor Intensity |
|---|---|---|---|
| Complete Post Replacement | Severely rotted wood or cracked vinyl posts | 15–20 Years | High |
| Steel Post Mending Stakes | Sound concrete footings with surface-level rot | 8–12 Years | Moderate |
| Re-pouring Concrete Footings | Structurally sound posts loosened by shifting soil | 10–15 Years | High |
| Wood Reinforcement Cleats | Minor leaning on non-load-bearing garden fences | 3–5 Years | Low |
Common Site Failures and Field Fixes
- Root Cause: Concrete footing poured flat or concave, trapping pooling water against the wooden post and accelerating rot.
- Actionable Fix: Chip away the top layer of old concrete with a cold chisel and create a sloped mortar collar that sheds rainwater away from the wood grain.
- Root Cause: High clay content soil expanding and contracting aggressively with seasonal moisture changes, pushing the post out of plumb.
- Actionable Fix: Excavate a wider pocket around the footing, backfill the lower section with coarse gravel for drainage, and pour a thicker concrete base below the local frost line.
- Root Cause: Using standard non-pressure-treated lumber in direct contact with wet ground.
- Actionable Fix: Cut out the compromised section entirely and splice in an above-ground post anchor bracket attached to a newly poured concrete pier.
Frequently Asked Questions
Can I fix a leaning fence without digging up the concrete?
Yes, if the concrete footing is solid and the post is not completely rotted at the base, you can use heavy-duty steel spur brackets driven deep into the ground alongside the existing post. Bolt the steel bracket directly to the fence post to lock it permanently into a plumb position without disturbing the original concrete.
How do I straighten a fence post without breaking it?
To prevent snapping a dry or aging wood post, loosen the surrounding soil completely and remove any weight from attached panels before applying gentle leverage. Use a combination of a high-lift farm jack, a sturdy pry bar, and temporary wooden braces to ease the post back into vertical alignment gradually.
What is the best concrete to use for fence posts?
Fast-setting concrete mix is the industry standard for fence posts because it eliminates the need for manual mixing in a wheelbarrow. You simply pour the dry mix directly into the excavated hole filled with water, and it sets firm within 20 to 40 minutes while curing to full structural strength within a few days.
Why do fence posts lean over time?
Fence posts typically lean due to a combination of high winds exerting lateral force on the panels, saturated soil losing its load-bearing capacity, and wood rot weakening the post right at the soil line. Additionally, shallow footings that fail to reach below the local frost line are constantly pushed and tilted upward by seasonal freezing and thawing cycles.
How deep should a fence post hole be?
As a general rule of thumb, a fence post hole should be excavated to a depth equal to one-third to one-half of the total above-ground height of the fence. For a standard 6-foot privacy fence, this means sinking the posts at least 24 to 36 inches deep into solid, undisturbed subsoil.
Restore the structural integrity of your property boundary today by gathering your materials, securing proper safety equipment, and tackling that leaning fence before minor shifting turns into a complete collapse.
