How To Remove Double Hung Window Sash: A Master Craftsman Guide

Removing a double hung window sash safely requires understanding balance systems, such as block-and-tackle or constant-force mechanisms, and releasing the tilt latches or jamb liners correctly. This comprehensive manual details the exact mechanical steps needed to extract both upper and lower sashes on modern vinyl, wood, and aluminum-clad frames without damaging the glass or surrounding trim.

Pre-Operation & Equipment Checklist

Proper execution of sash extraction relies on having the correct hand tools and understanding the structural design of your specific window model. Whether you are dealing with a standard vinyl replacement window or a traditional wood architectural unit with hidden weights, preparation prevents accidental glass breakage, seal failure, or frame distortion.

• Essential Tools and Materials: Flathead screwdriver, medium Phillips screwdriver, heavy-duty utility knife, clean safety glasses, puncture-resistant work gloves, painter's tape, and a sturdy step stool.
• Prerequisite Standards & Knowledge: Identify your window type before starting. Modern vinyl units feature tilt-in latches and constant-force coil springs, while older wooden units often utilize side-mounted fabric cords, chains, and counterweight pockets behind the interior trim stop.
• Time and Budget Benchmarks: Expect to spend 15 to 30 minutes per window unit. The operational cost is zero if you already own basic hand tools, though replacement jamb liners or balance shoes may occasionally cost between fifteen and forty dollars if parts are worn out.

Step-by-Step Window Sash Extraction Protocol

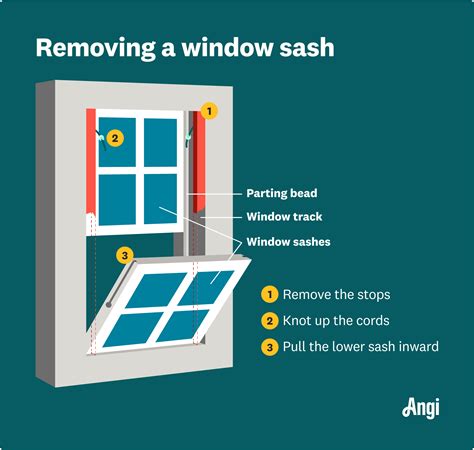

Step 1: Lower and Position the Bottom Sash

Begin by unlocking the window and sliding the bottom sash downward until it rests completely against the interior sill. If your unit is a modern tilt-wash model, locate the two plastic tilt latches positioned at the top corners of the bottom sash rail. Slide both latches inward simultaneously toward the center of the sash to disengage the pivot pins from the side jamb tracks. Carefully tilt the bottom sash inward until it forms a 90-degree angle with the window frame.

Warning: Never allow a tilted sash to hang unsupported by only one pivot pin, as the excessive torque will snap the plastic components and potentially shatter the insulated glass unit.

Step 2: Disengage and Remove the Bottom Sash

With the bottom sash held steady at a 90-degree angle, lift the entire sash upward uniformly on both sides until the left and right pivot bars slide completely out of the balance shoes housed within the side jamb liners. Set the bottom sash down gently on a soft, flat surface away from your primary workspace to prevent surface scratching or edge chipping.

Pro-Tip: Once the bottom sash is removed, immediately allow the balance shoes to slide slowly upward to their resting position, but secure them or insert a dedicated tension tool to prevent them from snapping violently up into the header.

Step 3: Lower and Release the Upper Sash

Locate the upper sash, which is now fully exposed within the frame opening. Unlock any secondary travel blocks or stops near the top sides of the upper sash frame. Pull the upper sash downward into the space previously occupied by the bottom sash, bringing it roughly to the middle of the frame height. Just like you did with the lower sash, locate the upper sash's tilt latches, slide them inward, and tilt the upper sash inward to a 90-degree angle.

Step 4: Extract the Upper Sash and Balance Mechanism

Lift the tilted upper sash straight up out of the upper balance shoes, exactly as performed with the lower sash. Inspect the exposed jamb liners, tilt latches, and balance springs for signs of structural cracking, rust, or binding. If you are replacing the entire sash unit, clean out any accumulated exterior debris, insect nests, or dried paint build-up from the side tracks using a vacuum and a damp microfiber cloth before attempting installation of the new components.

Technical Comparison of Window Sash Balance Systems

Common Site Failures & Field Fixes

• Root Cause: A balance shoe snaps violently upward into the top of the window frame when the sash is removed, losing its tension calibration.


  • Actionable Fix: Use a flathead screwdriver or a specialized charging tool to pull the balance shoe back down the track to its original height, then lock it in place before attempting to re-insert the sash pivot bars.
• Root Cause: The tilt latches are jammed with old paint or accumulated dirt, preventing them from retracting fully into the sash frame.


  • Actionable Fix: Score around the perimeter of the plastic latches with a utility knife to break any paint seals, apply a silicone-based lubricant spray, and gently tap the latch inward using a small wooden block and mallet.
• Root Cause: The sash is too heavy or wide to balance safely during extraction, leading to frame binding.


  • Actionable Fix: Enlist a helper to support the opposite side of the sash simultaneously, ensuring the pivot pins lift out of both balance shoes at the exact same vertical angle.

Frequently Asked Questions

Can I remove a double hung window sash without tilting it inward?

Older non-tilt wood windows require removing the interior wooden stop moldings using a stiff putty knife to pull the sashes straight out into the room. Modern vinyl windows are explicitly engineered around the tilt-in mechanism, meaning forcing them straight out without tilting will permanently break the vinyl side tracks.

How do I know if my balance shoes are locked or jammed?

If a balance shoe is stuck deep inside the vinyl jamb track and will not accept the sash pivot bar, it has typically tripped its safety lock. You can reset a locked constant-force shoe by inserting a flathead screwdriver into the center slot and rotating it a quarter turn to release the internal brake mechanism.

Is it necessary to remove both sashes if I only want to replace the glass?

Replacing an insulated glass unit (IGU) usually requires removing only the specific sash that houses the damaged glass. Leaving the other sash intact within the frame minimizes the risk of structural misalignment and saves working time.

What should I do if the vinyl jamb liner cracks during sash removal?

A cracked jamb liner compromises the thermal seal and the smooth operation of the window, requiring complete replacement. You must unscrew the damaged liner from the wood framing, order an exact profile match from the window manufacturer, and snap the new liner into the rough opening.

Mastering double hung window sash extraction ensures you can complete maintenance, repairs, or retrofits efficiently while preserving the structural integrity of your fenestration investment.
