How To Optimize Next-Gen Fiber Networks For Maximum Throughput And Minimum Latency

Optimizing next-gen fiber networks requires a comprehensive approach involving dense wavelength division multiplexing (DWDM), coherent optics deployment, and strict attenuation budget management. Network engineers must leverage software-defined telemetry to mitigate chromatic dispersion, eliminate micro-bending losses, and maintain sub-millisecond round-trip times across multi-terabit infrastructure.

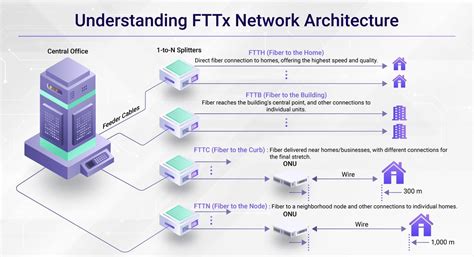

Architectural Planning & Infrastructure Readiness

Preparing an infrastructure for next-generation fiber optimization requires strict adherence to international telecommunications standards, specialized optical testing equipment, and a thorough assessment of existing physical and logical topologies. Upgrading from legacy single-mode fiber (SMF-28) to ultra-low-loss (ULL) or hollow-core fiber architectures demands precise capital allocation and specialized tooling to protect high-bandwidth investments.

• Essential Gear & Tools: Optical Time Domain Reflectometers (OTDR) with dynamic range exceeding 45 dB, fusion splicers with core-alignment accuracy under 0.02 dB, high-resolution optical spectrum analyzers (OSA), and automated laser source meters.
• Mandatory Prerequisite Knowledge & Standards: Familiarity with ITU-T G.652, G.655, and G.652.D fiber classifications, IEEE 802.3 Ethernet frame standards, and ITU-T G.694.1 spectral grid specifications for DWDM channel spacing.
• Estimated Budget & Duration Benchmarks: Enterprise-grade core optimization projects typically require a multi-phase capital expenditure ranging from fifty thousand to several hundred thousand dollars per regional node, with deployment cycles spanning four to twelve weeks depending on span distances.

Step-by-Step Optimization Protocol

Step 1: Conduct Comprehensive Optical Link Characterization

Before modifying active transmission parameters, measure baseline physical layer performance by executing bidirectional OTDR traces at 1310 nm, 1550 nm, and 1625 nm wavelengths. Record insertion loss, splice loss, and connector reflectance to establish a reliable baseline against future degradation.

Warning: Never bypass safety protocols when dealing with Class 1M and Class 3B laser sources; always inspect connector end-faces with a high-magnification fiber microscope before mating to prevent catastrophic transceiver damage.

Step 2: Implement Coherent Optics and Advanced Modulation Formats

Upgrade traditional non-return-to-zero (NRZ) or simple on-off keying transceivers to coherent optical transceivers utilizing probabilistic constellation shaping (PCS) and quadrature phase-shift keying (QPSK) or 16-QAM modulation. These formats maximize spectral efficiency over long-haul distances without requiring complete physical cable replacement.

Pro-Tip: Utilize probabilistic shaping to dynamically adjust symbol loading based on real-time signal-to-noise ratio (SNR) fluctuations, extracting up to 30 percent more capacity from existing legacy spans.

Step 3: Configure Software-Defined Networking and Automated Telemetry

Deploy streaming telemetry protocols such as gRPC and NETCONF to collect real-time performance metrics from optical line terminals (OLTs) and reconfigurable optical add-drop multiplexers (ROADMs). Feed these metrics into automated network orchestration platforms to predict degradation and proactively reroute traffic before packet loss occurs.

Step 4: Mitigate Chromatic and Polarization Mode Dispersion

Calculate chromatic dispersion (CD) and polarization mode dispersion (PMD) penalties across high-speed 100G, 400G, and 800G lambdas. Install tunable dispersion compensation modules (DCMs) or leverage the advanced electronic dispersion compensation (EDC) built into modern digital signal processors (DSPs) to reconstruct distorted optical pulses at the receiving end.

Technical Parameter Comparison for Fiber Optimization Strategies

Common Fiber Network Failures and Field Fixes

• High Insertion Loss at Splice Points:


  • Root Cause: Angular misalignment, core contamination, or improper arc-fusion heat calibration during the splicing process.
  • Actionable Fix: Strip the fiber cleanly using a high-precision diamond cleaver, recalibrate the fusion splicer arc power for the specific fiber manufacturer, and resplice while verifying the estimated loss is below 0.02 dB on the monitor.
• Excessive Macro-Bending in Slack Loops:


  • Root Cause: Fiber cables or patch cords routed with a radius tighter than the minimum bend radius specified by the manufacturer (typically 30 mm for standard single-mode fiber).
  • Actionable Fix: Reroute internal cabinet slack management trays, enforce strict bend-radius limiter installation, and replace any crimped or pinched jumper cables.
• Connector End-Face Contamination:


  • Root Cause: Airborne dust, oils from handling, or residue transfer through mating adapters causing high back-reflection (return loss).
  • Actionable Fix: Clean all patch panel connectors and transceiver ports using specialized one-click cleaners and 99% isopropyl alcohol lint-free wipes, then verify cleanliness with a video inspection scope.

Frequently Asked Questions

What is the primary cause of signal degradation in modern fiber networks?

Signal degradation is primarily driven by physical attenuation, chromatic dispersion, and nonlinear effects such as self-phase modulation and four-wave mixing. These factors distort optical pulses over long spans, resulting in elevated bit error rates.

How does coherent optical transmission improve network capacity?

Coherent optics utilize advanced digital signal processing to transmit data across multiple phases, amplitudes, and polarizations simultaneously. This approach packs significantly more data into a single optical wavelength compared to legacy intensity-modulation techniques.

What is the acceptable decibel loss limit for a standard fusion splice?

An acceptable fusion splice should exhibit an insertion loss of no more than 0.05 dB, with industry best practices targeting values consistently below 0.02 dB. Anything higher indicates core misalignment or equipment calibration issues.

How do software-defined networking platforms enhance fiber maintenance?

SDN platforms provide real-time visibility into optical signal-to-noise ratios, laser bias currents, and receive power levels across every active channel. This telemetry allows network operators to automate fault isolation and execute preventative maintenance before service outages occur.

When should an organization transition to hollow-core fiber?

Hollow-core fiber should be deployed when ultra-low latency is paramount, such as in high-frequency financial trading networks or specialized data center interconnects requiring light propagation speeds closer to the vacuum speed of light.
