Precision Guide: How To Measure A Euro Cylinder Lock Accurately

Measuring a euro cylinder lock requires taking two distinct dimensions from the center of the retaining bolt hole to the outer edge of both the internal and external faces. Recording these figures in millimeters—such as 35/45—ensures correct alignment with door handles and prevents security vulnerabilities caused by lock protrusion. Precision down to the millimeter guarantees compatibility with high-security anti-snap standards like TS007 3-Star and BS EN 1303.

Pre-Measurement Protocol & Essential Locksmith Tools

Before removing or measuring a euro profile cylinder lock, you must gather the appropriate tools and understand the mechanical assembly of multipoint locking systems. Euro cylinders operate within uPVC, composite, timber, and aluminum doors, working in tandem with a central mortise gearbox. Measuring a lock while it is still installed inside a door can introduce significant errors due to handle backplate thickness, protective escutcheons, and door beveling. The most reliable method requires removing the cylinder completely from the door leaf.

Modifying or replacing a lock cylinder must comply with regional security standards. In the United Kingdom and Europe, replacing standard cylinders with anti-snap variants (compliant with TS007 3-Star or Sold Secure Diamond standards) is the single most effective defense against lock-snapping forced entries. Acquiring exact physical dimensions ensures that these defensive features—such as sacrificial snap lines—align perfectly with the outer face of your door architecture.

Equipment & Readiness Checklist

• Essential Hardware & Tools:


  • Pozidriv Screwdriver (typically PZ2) or Flathead screwdriver matching the cylinder retaining bolt head.
  • Precision Metric Vernier Caliper or a rigid steel ruler with clear millimeter (mm) increments.
  • Existing Operational Key (required to align the central rotating cam during extraction).
  • Pen and paper to map internal versus external dimensions.
• Mandatory Technical Standards & Knowledge:


  • BS EN 1303:2015 (Standard governing lock cylinders for building hardware).
  • TS007:2014+A2:2018 (British standard for enhanced security housing and cylinders).
  • Understanding the "External Face" designation: High-security anti-snap locks are unidirectional and feature sacrificial cuts exclusively on the side facing outside.
• Operational Benchmarks:


  • Estimated Duration: 10 to 15 minutes.
  • Tooling Budget: $0 to $20 (assuming standard hand tools are on site).
  • Measurement Tolerance: +/- 1.0 millimeter.

Step-by-Step Euro Cylinder Removal and Measurement Workflow

Step 1: Locate and Remove the Cylinder Retaining Screw

Open the door leaf to access the edge control plate (the faceplate running vertically along the edge of the door). Locate the cylinder retaining bolt, which sits directly beneath the main locking bolt or latch mechanism, aligned horizontally with the bottom of the euro profile cylinder. Using your PZ2 screwdriver, turn the screw counterclockwise to loosen and remove it completely. The retaining screw is usually quite long (50mm to 80mm), so continue unthreading until it slides entirely out of the lock case.

Warning: Do not force or strip the head of the retaining bolt. If the screw spins without unthreading, gentle outward pressure on the handle or cylinder can help clear stuck threads within the gearbox mortise.

Step 2: Align the Cam and Extract the Cylinder

Insert the original working key into the internal side of the lock cylinder. Turn the key approximately 10 to 15 degrees clockwise or counterclockwise (roughly to the 1 o'clock or 11 o'clock position). This action retracts the black central rotating cam into the body profile of the cylinder. While maintaining slight key rotation to keep the cam flush, pull gently on the key or grasp the face of the cylinder to slide the unit horizontally out of the door mortise.

Pro-Tip: If the cylinder catches on internal components during withdrawal, do not use heavy impact force. Gently jiggle the key back and forth between the 10 o'clock and 2 o'clock positions while pulling to find the exact clearance point where the cam sits completely flush with the lock body.

Step 3: Identify the Center Point and Record Section Dimensions

Place the extracted cylinder flat on a solid surface. Locate the threaded fixing screw hole at the base of the cylinder body. This hole serves as the absolute zero-point datum for all measurements. Euro cylinder dimensions are always expressed as two distinct lengths separated by a slash (e.g., 35/45mm or 35-10-45mm).

1. Measure Side A (Internal Dimension): Place your ruler or vernier caliper zero mark precisely at the exact center of the threaded retaining screw hole. Measure outward to the outermost flat face of the cylinder on Side A. Record this number in millimeters (e.g., 35mm).
2. Measure Side B (External Dimension): Measure from the exact center of the threaded retaining screw hole to the opposite flat face on Side B. Record this number in millimeters (e.g., 45mm).
3. Calculate Overall Length: Measure the complete length from outer tip to outer tip. Verify that Side A plus Side B equals this overall dimension. For example, 35mm + 45mm = 80mm total cylinder length.

Example Measurement Notation: Internal Side (35mm) + External Side (45mm) = 35/45 Cylinder (80mm Total Length)

Step 4: Identify External Orientation and Sacrificial Snap Lines

If you are ordering an anti-snap high-security cylinder, you must clearly mark which side faces external elements. Examine the lock profile for a pre-machined sacrificial break point (a shallow vertical groove cut into the body roughly 10mm to 12mm inward from the face). High-security cylinders feature this cut to ensure that under attack, the lock snaps intentionally along a designated shear line, leaving the central locking core and internal mechanism intact. Note down the external dimension specifically to ensure the replacement lock’s anti-snap side is installed facing outward.

Warning: Installing an anti-snap cylinder backward places the sacrificial cut on the inside of the property, leaving the external side vulnerable to destructive bypass techniques. Always verify your internal versus external measurements twice before ordering.

Step 5: Account for Door Furniture and Escutcheon Adjustments

If you must measure the cylinder while installed on the door because the key is missing or the lock is jammed, you must adjust for handle backplates. Place a straight edge against the door handle backplate or decorative escutcheon surrounding the cylinder. Measure from the center of the edge fixing bolt out to the face of the handle furniture on both sides.

Subtract or add millimeters as needed so that the replacement cylinder will sit flush with—or extend no more than 3mm past—the exterior door furniture. A cylinder protruding more than 3mm past the faceplate presents an extreme security risk by granting burglars leverage for lock-snapping tools.

Standard Euro Cylinder Dimensioning & Security Standard Specifications

Selecting the correct replacement lock requires translating physical measurements into standardized technical specifications. The matrix below outlines standard sizes, offset configurations, hardware tolerances, and security compliance categories.

Common Measurement Errors and Field Failure Remediation

Excessive External Cylinder Protrusion

• Root Cause: Measuring solely the total length without accounting for asymmetry, or failing to factor in handle backplate removal when measuring an uninstalled lock body.
• Actionable Fix: Measure from the center fixing bolt hole to the exact outer edge of the exterior handle furniture. Choose a shorter external cylinder offset so the lock face sits completely flush or protrudes less than 3mm from the exterior plate, mitigating snap risks.

Cylinder Cam Binds or Jams During Removal

• Root Cause: The internal cam is angled slightly outside the main lock profile housing, catching on the internal mortise lock body or gearbox frame.
• Actionable Fix: Insert the key and rotate it slowly between the 10 o'clock and 2 o'clock positions while applying light pull force. If the key cannot turn due to a missing or broken key, loosen the handle backplate mounting screws by 3-4 turns to reduce clamping tension on the gearbox.

Incorrect Thumbturn Dimensioning

• Root Cause: Order placement mistakes caused by swapping internal thumbturn sides with external keyway sides on asymmetrical offset locks.
• Actionable Fix: Always record thumbturn measurements with a "T" suffix attached explicitly to the internal measurement dimension (e.g., 45T/35mm indicates a 45mm internal side with a thumbturn and a 35mm external keyway side).

Over-Tightening Retaining Bolt distorts Lock Function

• Root Cause: Driving the long cylinder fixing screw into the cylinder housing with excessive torque, causing operational binding or key rotation stiffness.
• Actionable Fix: Loosen the cylinder retaining bolt by 1 to 2 full clockwise/counterclockwise turns until key operation becomes smooth. Hand-tighten the screw until firm resistance is met; never use high-torque power drivers on lock fixing hardware.

Frequently Asked Questions

Can I measure a euro cylinder lock without removing it from the door?

Yes, you can measure an installed cylinder by placing a ruler against the center of the retaining bolt on the door edge and measuring out to the edge of the door furniture on both sides. However, removing the cylinder completely is strongly recommended, as backplate thickness and decorative covers often cause errors of 2mm to 5mm.

Which side of the euro cylinder measurement comes first?

By global industry convention, euro cylinder measurements are typically written as Internal / External or Overall Length split (e.g., 35/45). However, because sizing notation can vary by manufacturer, always explicitly label your measurements as "Internal" and "External" when ordering replacement hardware.

Why is lock overhang dangerous for home security?

If a euro cylinder protrudes more than 3mm past the exterior handle furniture, intruders can grip the protruding casing using specialized lock-snapping tools. Applying mechanical leverage snaps the cylinder body at its narrowest point, granting access to the internal lock mechanism in seconds.

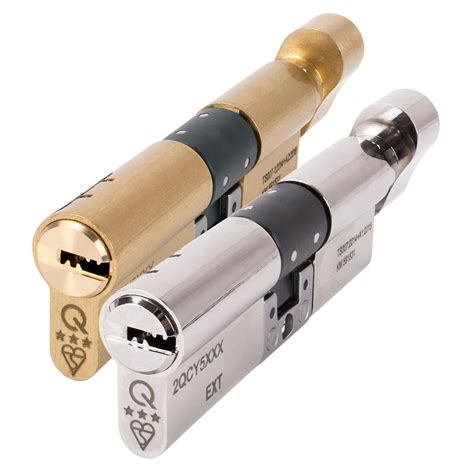

How do I measure a euro cylinder lock with a thumbturn?

Measure a thumbturn cylinder identically to a standard key-keyed cylinder: from the center of the fixing bolt hole out to the flat face of each side. Add a "T" to the internal measurement number that houses the thumbturn knob (for example, 35T/45mm) to ensure the manufacturer attaches the turn piece to the correct end.

What is the difference between a symmetrical and offset euro cylinder?

A symmetrical euro cylinder has equal lengths on both sides of the central retaining bolt hole (e.g., 35mm/35mm). An offset euro cylinder features unequal lengths (e.g., 35mm/45mm) to accommodate doors where the locking gearbox is not centered within the door leaf profile.

Upgrade Your Home Security with Perfectly Fitted Lock Cylinders

Precision measurements guarantee that your property remains fully protected against mechanical bypass techniques while ensuring smooth lock operation. Select a high-security TS007 3-Star or Sold Secure Diamond anti-snap cylinder that matches your exact calculated dimensions to achieve ultimate peace of mind.
