How To Measure Double Glazed Unit Thickness For Precise Glass Replacement

Measuring double glazed unit thickness requires precision to within a millimeter to ensure optimal thermal performance, acoustic insulation, and a secure fit within the window frame. Using specialized tools such as digital callipers or a glass thickness gauge allows you to calculate the precise dimensions of the glass panes and the internal spacer bar without removing the entire glazing unit from its rebate.

Pre-Operation & Equipment Checklist

Accurate measurement of an insulated glass unit (IGU) forms the bedrock of successful glass replacement. Errors as small as two millimeters can cause the glazing beads to pop out, compromise the weather seal, or prevent the unit from sitting securely on setting blocks. Preparation involves gathering the correct diagnostic tools and understanding the structural configuration of modern glazing systems.

• Essential Gear, Tools, and Materials:


  • Digital callipers (minimum 150mm range with 0.01mm resolution) for measuring overall rebate depth and single-pane thickness if accessible.
  • Laser distance measure or a specialized glass thickness gauge (such as a Glass Chek device) for non-invasive measurements through laminated or installed panes.
  • Stiff plastic putty knife or glazing chisel for safely removing wedge gaskets or glazing beads.
  • Steel tape measure for checking daylight opening dimensions (width and height).
  • Notepad, pen, and safety gear including cut-resistant gloves and protective eyewear.
• Mandatory Prerequisite Knowledge and Standards:


  • Familiarity with the standard notation for double glazed units, which always follows the sequence of Exterior Pane Thickness + Spacer Bar Width + Interior Pane Thickness (e.g., 4-16-4).
  • Understanding of EN 1279 standards regarding insulated glass units and manufacturing tolerances.
• Estimated Budget and Duration Benchmarks:


  • Tool acquisition cost: 20 to 100 USD depending on whether a dedicated optical thickness gauge is purchased.
  • Time required: 15 to 30 minutes per window assembly.

Step-by-Step Measurement Workflow

Step 1: Remove the Interior Glazing Beads

Begin by stripping away the interior glazing beads to expose the edges of the double glazed unit and the surrounding frame rebate. Insert a stiff plastic putty knife or a specialized glazing chisel into the horizontal or vertical joint between the bead and the frame, tapping gently if necessary to pop the bead out of its locking track. Always start with the longer beads first, keeping track of their exact original locations because they are cut to precise mitred lengths.

Warning: Never use metallic screwdrivers or sharp steel blades directly against the glass edges or vinyl/aluminum frames, as localized pressure points can cause instant thermal shock breakage or chip the fragile low-E coating edges.

Step 2: Access and Measure the Total Unit Thickness

With the edge of the double glazed unit exposed within the frame rebate, use your digital callipers to measure the overall thickness across the front and back panes including the hermetic seal. Carefully position the jaws of the callipers over the edge of the glass pack, ensuring the measurement is taken away from the corner keys where sealant build-up is often thicker. Take measurements at a minimum of three distinct points along each exposed edge to account for manufacturing variations or sagging.

Pro-Tip: If the unit is tightly wedged and you cannot fit callipers around the edge, measure the internal rebate depth of the frame and subtract the thickness of the backing setting blocks and the exterior glazing clearance to cross-reference your math.

Step 3: Determine Individual Component Dimensions

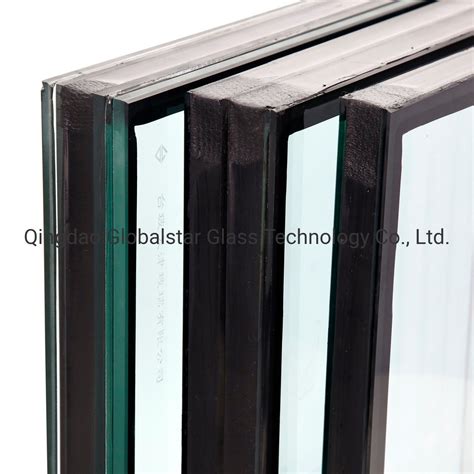

Calculate the individual layer thicknesses using a glass thickness gauge if the unit is installed, or by directly measuring an exposed broken pane with callipers. Standard residential double glazed units typically utilize 4mm or 6mm float glass, while commercial units may feature 8mm or 10mm panes or laminated safety glass configurations. Subtract the combined glass thickness from the total overall unit thickness to determine the precise size of the aluminum or warm-edge spacer bar.

Step 4: Verify Width, Height, and Squareness

Measure the daylight opening width and height from frame to frame, then subtract the manufacturer-specified edge clearance (typically 10mm to 12mm total, allowing 5mm to 6mm clearance on all four sides) to confirm the manufacturing dimensions of the glass. Cross-measure the diagonal corners of the frame opening to check for squareness, ensuring the difference between diagonals does not exceed 3mm to prevent installation binding.

Technical Comparison of Measuring Methods and Glass Configurations

Common Site Failures and Field Fixes

• Incorrect Spacer Bar Calculation:


  • Root Cause: Measuring only the outer glass panes and assuming a standard 12mm spacer without accounting for custom thermal configurations like 16mm or 20mm cavities.
  • Actionable Fix: Always verify the spacer width independently using a calibrated probe or optical gauge, ensuring the replacement unit matches the exact structural makeup (e.g., 4-16-4 vs 6-12-6).
• Glazing Bead Interference Post-Replacement:


  • Root Cause: Ordering a replacement double glazed unit that is even 1mm thicker than the original, preventing the internal PVC or aluminum beads from locking back into their tracks.
  • Actionable Fix: Double-check overall unit thickness specifications against the frame rebate depth chart, and consult with your glass fabricator to adjust spacer widths if necessary.
• Glass Slippage Due to Missing Setting Blocks:


  • Root Cause: Failure to measure the thickness of original setting blocks, leading to the use of incorrect shims that cause the glass weight to rest directly on the frame corners.
  • Actionable Fix: Measure existing setting blocks with callipers before removal and replace them with identical durometer-rated EPDM setting blocks positioned at the quarter points of the sill.

Frequently Asked Questions

Can I measure double glazed unit thickness without taking the window apart?

Yes, you can use a specialized optical glass thickness gauge that projects a laser beam through the glass at an angle, allowing you to read the thickness of each pane and the air gap on a digital scale. Alternatively, measuring the frame rebate depth and the glazing bead projection can provide a reliable estimation when optical tools are unavailable.

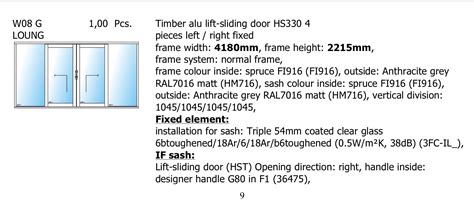

What does a notation like 4-16-4 mean when ordering glass?

This notation represents the structural buildup of the insulated glass unit in millimeters. It indicates a 4mm exterior glass pane, a 16mm air or gas-filled spacer cavity, and a 4mm interior glass pane, totaling a 24mm overall unit thickness.

Why is precise measurement crucial for double glazed units?

If a replacement unit is too thin, the glazing gaskets will not maintain adequate compression, leading to water infiltration and air drafts. If the unit is too thick, the glazing beads will not snap securely into place, exposing the sharp edges of the glass and compromising the security of the window.

How do I account for low-E coatings when measuring?

Standard low-emissivity (low-E) microscopic metallic coatings add negligible thickness (measured in nanometers) and do not affect the physical thickness measurements taken with digital callipers or optical gauges. However, you must identify which surface holds the low-E coating (usually surface #2 or #3) to ensure the replacement unit is oriented correctly within the frame.

What should I do if my window frame is out of square?

If your window frame is out of square, measure the width and height at multiple points and record the tightest dimensions. When ordering the replacement double glazed unit, base your sizing on the smallest rectangular dimensions that will fit into the opening while maintaining the required edge clearance for setting blocks.

Ensure your next glass replacement project goes off without a hitch by double-checking all unit dimensions and consulting certified glazing professionals for custom architectural installations.
