How To Measure Countersink Angle: A Professional Engineering Guide
Measuring a countersink angle requires precise geometric verification using either direct contact gauges or indirect optical metrology to ensure fastener seating compliance. Achieving high-tolerance results relies on calibrating your measurement tools against established ASME or ISO standard head-seating specifications to prevent fatigue failure in mechanical assemblies.
Essential Equipment and Calibration Requirements
Before initiating the verification process, ensure your environment is stabilized at a standard ambient temperature of 20 degrees Celsius. Thermal expansion in metallic workpieces can introduce micron-level errors that compromise the fit of high-precision aerospace or automotive fasteners.
- Essential Measurement Tools:
- Countersink Gauge (also known as a cone or "taper" gauge): Specifically designed with a precision-ground cone to contact the countersink wall directly.
- Digital Calipers with Knife-Edge Jaws: Required for measuring the major diameter of the countersink.
- Optical Comparator: The gold standard for non-contact measurement in high-volume production environments.
- Modeling Clay or Impression Material: Used for creating physical cross-section casts when the geometry is inaccessible to mechanical gauges.
- Precision Protractor or Sine Bar: Useful for secondary validation of the countersink tool geometry itself.
- Mandatory Standards:

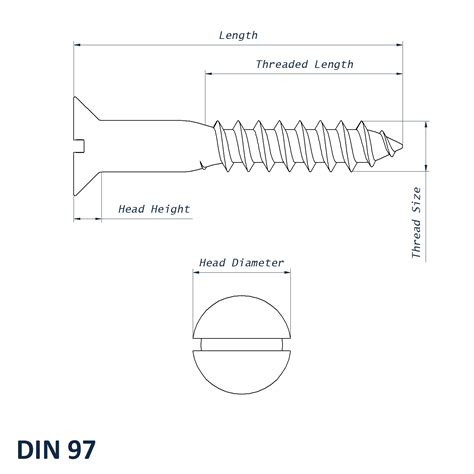

- Consult ASME B18.2.1 for standard fastener head dimensions.
- Verify if your target tolerance is based on the included angle (the full angle) or the half-angle, which is common in turning and machining setups.
Technical Procedures for Precision Measurement
Step 1: Cleaning and Deburring the Aperture
Before attempting any measurement, remove all burrs, loose chips, or cutting fluid residue from the countersink surface. Even a microscopic burr can cause a gauge to seat incorrectly, resulting in an angular reading error of several degrees. Use a fine-grade deburring tool or a light swipe with a precision file. Ensure the surface finish is consistent, as a jagged or torn edge prevents the gauge from establishing full contact with the countersink wall.
Step 2: Utilizing a Direct Contact Countersink Gauge
The most common method for shop-floor verification is the mechanical cone gauge. Insert the tapered gauge into the hole until it makes full contact with the internal walls of the countersink. Rotate the gauge slightly to ensure it is seated evenly. Read the calibrated depth scale provided on the tool. Because these gauges rely on the relationship between depth and diameter, ensure you cross-reference the depth reading with the manufacturer’s conversion chart specific to the gauge’s taper angle.
Pro-Tip: If your gauge provides a depth reading, use the trigonometric formula: Angle = 2 * arctan(Radius / Depth). For a standard 90-degree countersink, the radius of the opening should equal the depth of the countersink.
Step 3: Performing Indirect Measurement via Impression
In cases where the countersink is located in a blind hole or an awkward geometry, use a high-fidelity impression material. Inject the material into the countersink and allow it to cure according to the manufacturer's specifications. Once removed, the cured plastic provides an exact negative of the countersink. You can then measure this physical model using an optical comparator or a high-resolution bench micrometer to determine the precise included angle.
Step 4: Verification via Optical Comparator
For extreme precision, place the part on the stage of an optical comparator. Align the silhouette of the countersink with the screen’s reticle or protractor overlay. Rotate the staging table to align the crosshair with one side of the countersink angle, zero the angular readout, then rotate to align with the opposite side. This eliminates human error associated with mechanical gauge pressure and provides the most repeatable results for Quality Assurance protocols.
How To Measure Countersink Angle In Solidworks at Steve Stults blog
Measurement Method Comparative Analysis
| Method | Best Use Case | Accuracy | Primary Limitation |
|---|---|---|---|
| Mechanical Cone Gauge | Fast, rough-in shop checks | Moderate | Dependent on operator pressure |
| Digital Caliper/Depth | General machining | Low | Sensitive to edge sharpness |
| Optical Comparator | Final inspection/R&D | High | Requires specialized equipment |
| Impression Casting | Blind or hard-to-reach holes | Moderate to High | Time-consuming; cure wait times |
Common Measurement Errors and Field Remedies
- Erroneous Contact Patch: The gauge is measuring only the top edge of the hole rather than the full slope.
- Root Cause: The countersink tool is dull, creating a "rolled" edge rather than a clean chamfer.
- Actionable Fix: Re-sharpen or replace the countersink bit and re-machine the hole to establish a fresh, true edge before re-measuring.
- Thermal Distortion: The part is too hot from the machining process, causing the hole diameter to shrink as it cools.
- Root Cause: Measurement performed immediately after drilling/milling.
- Actionable Fix: Allow the component to reach equilibrium with room temperature for at least 15 minutes before verification.
- Gauge Taper Mismatch: The gauge angle does not match the intended countersink angle, leading to "point contact" only.
- Root Cause: Using a 60-degree gauge on a 90-degree hole.
- Actionable Fix: Verify gauge specifications against your engineering drawings. If no matching gauge is available, utilize the impression casting method to ensure full-surface contact.
Frequently Asked Questions
What is the most common countersink angle?
The most prevalent countersink angle in standard industrial and fastener applications is 90 degrees. This provides a balance between structural integrity and the self-centering characteristics required for flat-head screws.
Can I use a regular protractor to measure a countersink?
A standard protractor is rarely precise enough for machine shop tolerances. If you must use one, it should be a precision optical protractor or a high-end digital bevel gauge, but even then, the small surface area of a countersink typically renders these tools ineffective.
Why does my countersink measurement vary at different points?
This is typically caused by a "chattering" effect during the machining process, where the bit vibrated and created a non-concentric or lobed hole. This indicates that your cutting speed is too high or the tool is not rigidly held in the spindle.
How do I measure an 82-degree countersink versus a 90-degree?
The process remains identical, but the gauge or the reference template must be specific to 82 degrees. Since 82 degrees is the standard for most American-made machine screws, verify that your gauge is marked for this specific angle to avoid a mismatch that results in a loose screw head.
When should I use a countersink gauge vs. an optical comparator?
Use a mechanical gauge for rapid, in-process adjustments while the machine is running. Reserve the optical comparator for final inspection reports or when you need to certify that a part meets tight engineering tolerances for high-stress applications.
