How To Know If Your Solar Panels Are Working: The Complete Technical Audit Guide

To verify if your solar panels are functioning correctly, you must confirm that your inverter displays a solid green status light and that your monitoring software shows real-time power generation (measured in kilowatts) consistent with current sunlight conditions. A healthy system typically produces approximately 70-80% of its nameplate capacity during peak sun hours, accounting for standard conversion losses and ambient temperature derating.

Essential Tools and Performance Benchmarks for Solar Verification

Before conducting a technical audit of your photovoltaic (PV) system, you must gather specific data points and tools to ensure an accurate assessment. Checking if a system is "on" is fundamentally different from checking if it is "optimized." A system may be operational but underperforming by 30% due to micro-cracks, PID (Potential Induced Degradation), or simple soiling.

Mandatory Prerequisites and Gear

• System Documentation: Locate your "as-built" plan or contract to find the total DC system size (e.g., 6.4 kW) and the specific model of your inverter.
• Monitoring Credentials: Ensure you have active login access to your manufacturer’s portal (e.g., Enphase Enlighten, SolarEdge Monitoring, or SMA Sunny Portal).
• Diagnostic Tools: A high-quality digital multimeter (rated for CAT III or IV) for DC voltage testing and a handheld infrared (IR) thermometer for identifying localized hotspots.
• Safety Equipment: Insulated gloves and eye protection if you intend to open any combiner boxes or disconnect switches.
• Environmental Context: A clear understanding of "Peak Sun Hours" for your specific geographic location, which differs from total daylight hours.

Technical Performance Benchmarks

• Inverter Efficiency: Most modern string inverters operate at 97-99% efficiency.
• Standard Test Conditions (STC): Panels are rated at 25°C (77°F). For every degree above this, output typically drops by 0.3% to 0.5% (the Temperature Coefficient).
• Annual Degradation: Expect a 0.5% to 0.8% loss in efficiency per year as a standard industry baseline.

Step-by-Step Methodology for Verifying Photovoltaic Output

The following workflow transitions from the simplest visual indicators to complex electrical diagnostics. Following this sequence prevents unnecessary technical labor by identifying obvious "hard failures" early in the process.

Step 1: Analyze the Inverter Status Indicators

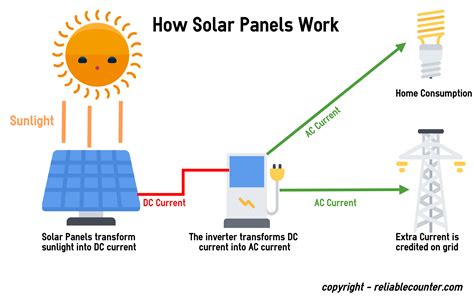

The inverter is the "brain" of your solar array, converting Direct Current (DC) from the panels into Alternating Current (AC) for your home. Almost all grid-tie inverters use a standardized LED signaling system.

1. Locate your inverter, usually mounted in the garage or on an exterior wall near the main electrical service panel.
2. Observe the LED color: A solid green light indicates normal operation and grid synchronization.
3. Identify "Fault" or "Error" lights: Red or flashing orange lights signify a system interruption.
4. Check the digital display: Many inverters cycle through screens showing "Pac" (AC Power currently being produced), "E-Today" (Total energy produced since sunrise), and "Vdc" (the voltage coming from the roof).

Warning: If the inverter display is completely blank during daylight hours, the system has likely tripped a dedicated solar circuit breaker or a DC disconnect switch has been engaged.

Step 2: Review Real-Time and Historical Monitoring Data

Hardware lights only tell you if the system is "alive." To know if it is working correctly, you must dive into the data. Software monitoring allows you to see the production curve, which should resemble a smooth bell curve on a clear day.

1. Log into your monitoring application.
2. Compare "Current Power" to the time of day. If it is noon and your 8 kW system is only producing 1.5 kW under a clear sky, an entire string of panels may be offline.
3. Analyze historical "Day-over-Day" production. Compare today's yield with a similar sunny day from the previous month or year.
4. Check for "Communication Faults." Sometimes the panels are working, but the monitoring gateway (Envoy, Zigbee, or Cellular kit) has lost its internet connection.

Pro-Tip: Look for individual panel performance if you have micro-inverters or DC optimizers. A single "black square" in a sea of green icons in the app indicates a specific hardware failure on that panel or micro-inverter.

Step 3: Conduct a Visual Physical Inspection

Environmental factors often cause performance dips that software cannot specifically diagnose as "broken." You must inspect the physical state of the hardware.

1. Debris and Soiling: Check for a "turbidity layer" of dust, bird droppings, or pollen. Heavy soiling can reduce output by up to 25%.
2. Shading Analysis: Look for new growth in nearby trees or new rooftop obstructions (like a satellite dish) that cast shadows. Even a small shadow on one corner of a panel can "choke" an entire string of panels if you are using a traditional string inverter without optimizers.
3. Physical Damage: Use binoculars to look for "snail trails" (brownish lines indicating micro-cracks) or shattered glass from hail or debris impact.

Step 4: Verify Utility Meter Synchronization

If your inverter says it is working but your electric bill remains high, the issue may lie in the communication between your system and the utility provider.

1. Examine your utility smart meter. Most digital meters cycle through different displays. Look for a screen that shows a negative sign (-) or an arrow pointing away from the house toward the grid.
2. Verify the "Net Metering" status. If you see the "Total kWh" value decreasing (or a separate "Export" register increasing), your system is successfully pushing surplus energy back to the grid.
3. Compare the "Total Produced" energy on your solar app with the "Total Exported" on your utility bill. The difference is what your home consumed directly ("Self-Consumption").

Step 5: Execute an Electrical String Test (Advanced)

If you suspect a specific string of panels is underperforming, you can measure the Open Circuit Voltage (Voc) at the DC disconnect or combiner box. This should only be performed by individuals comfortable with high-voltage DC.

1. Turn off the AC solar breaker and then the DC disconnect.
2. Open the DC enclosure to access the positive and negative strings.
3. Set your multimeter to the DC Voltage setting (at least 600V or 1000V depending on the system).
4. Measure the voltage of each string. A 10-panel string with panels rated at 40V Voc should read approximately 400V DC. If a string reads significantly lower (e.g., 320V), two panels in that string are likely bypassed or faulty.

Technical Benchmarks for Solar Component Performance

Common System Failures and Diagnostic Remediation

Even the most robust solar installations encounter technical friction. Identifying the root cause requires distinguishing between external grid issues and internal hardware faults.

• Scenario: The Inverter Displays a "Grid-Down" or "AC Voltage Out of Range" Error




  • Root Cause: The utility grid voltage is fluctuating outside the inverter's safety parameters, or a localized power outage has occurred. Rapid shutdown requirements force the system to turn off during outages to protect utility workers.
  • Actionable Fix: Check your home's main service panel for a tripped "Solar PV" breaker. If the breaker is on, contact your utility; the grid voltage may be too high for your inverter to safely inject power.

• Scenario: Software Shows "Micro-inverter Not Reporting"




  • Root Cause: The PLC (Power Line Communication) signal between the micro-inverter on the roof and the monitoring gateway is being blocked by "noise" on the home's electrical lines.
  • Actionable Fix: Ensure the gateway is plugged into a dedicated outlet away from large appliances or power strips with surge protectors, which can filter out the PLC signal.

• Scenario: Significant Mid-Day Production Drop-Off (The "clipping" effect)




  • Root Cause: If the curve is flat-topped, your panels are producing more DC power than your inverter can convert (DC-to-AC Ratio clipping). This is often an intentional design choice but can indicate an undersized inverter if it happens too frequently.
  • Actionable Fix: Check the "Max AC Output" rating of your inverter. If your 10kW array is flat-lining at 7.6kW, you likely have a 7.6kW inverter. This is usually normal, but if the flat-line occurs at a much lower level, check for overheating in the inverter's cooling fins.

• Scenario: Zero Production Despite Full Sun (Ground Fault Error)




  • Root Cause: "Isolation Fault" or "Ground Fault" (RISO). Moisture has likely entered a junction box or a wire's insulation has been nicked, causing electricity to leak to the mounting rail.
  • Actionable Fix: This is a safety hazard. Do not attempt to fix the wiring yourself. Shut down the DC disconnect and call a certified solar technician to perform a megger test on the DC strings.

Frequently Asked Questions

Why is my solar production lower in the summer than in the spring?

While summer has longer days, solar panels are less efficient as they get hotter. High ambient temperatures increase the internal resistance of the silicon cells, causing a voltage drop. Many systems achieve their "peak" instantaneous power on cool, crisp April days rather than in the sweltering heat of August.

Does rain wash my solar panels enough to keep them working?

Rain can remove light dust, but it often fails to clear heavy "bio-soiling" like bird droppings or "cementing" dust from construction. A professional cleaning or a gentle rinse with deionized water (to prevent mineral spots) can often restore 5-10% of lost production.

How do I know if my solar battery is working with my panels?

Check your monitoring app for "Flow Diagrams." You should see power moving from the panels to the battery (Charging) during the day and from the battery to the house (Discharging) after sunset. If your battery remains at 100% or 0% for several days, the internal Battery Management System (BMS) may require a firmware update or a hard reset.

Can a single dead cell stop the whole panel from working?

Modern panels use "bypass diodes" to prevent a single cell or a small shaded area from shutting down the entire module. However, if a bypass diode fails, the entire panel (or a significant third of it) may drop out of the string, significantly reducing the total voltage.

Ensure Your Solar Investment Continues to Perform

Regularly monitoring your system's digital footprint is the most effective way to safeguard your return on investment. If your technical audit reveals persistent underperformance, contact a certified NABCEP professional to perform a comprehensive thermal imaging scan and string analysis.
