Comprehensive Log Cabin Insulation: The Engineering Guide To Thermal Performance

Achieving year-round thermal comfort in a log structure requires a holistic "envelope" approach targeting the roof, floor, and walls to mitigate the inherent low R-value of timber. By integrating high-performance polyisocyanurate (PIR) boards, breathable membranes, and specialized "sliding batten" systems, you can achieve a U-value as low as 0.20 W/m²K while accounting for the significant hygroscopic movement of natural logs.

Logistics and Material Specifications for Thermal Envelope Upgrades

Before initiating an insulation project, you must account for the unique behavior of timber. Unlike masonry or steel frames, log cabins are dynamic structures that expand and contract based on atmospheric humidity. Failure to use "floating" fixtures during insulation will result in structural buckling or the opening of significant air gaps. Planning must prioritize the "envelope" hierarchy: 70% of heat loss occurs through the roof and floor, making these the highest-priority zones.

Essential Tool and Material Inventory

• Insulation Media: Foil-faced PIR boards (25mm to 100mm thickness), high-density Rockwool, or multi-foil reflective insulation.
• Vapor Management: 1000-gauge polyethylene vapor barriers and breathable non-woven membranes.
• Specialized Hardware: Sliding brackets (to allow for log settlement), C16 structural timber battens (25x38mm or 50x50mm), and low-expansion structural spray foam.
• Sealants: Flexible high-performance acrylic chinking and weather-grade silicone.
• Measuring Tools: Laser level, digital moisture meter (ensure logs are below 15% moisture content), and T-squares.

Project Benchmarks

• Estimated Budget: $15–$35 per square foot depending on the R-value requirements.
• Duration: 3–5 days for a standard 4m x 4m cabin.
• Standard Target: Aim for an R-value of R-30 in the roof and R-13 to R-19 in the walls for four-season occupancy in temperate climates.

The Five-Stage Protocol for Full-Envelope Cabin Insulation

Step 1: Foundation and Floor Sub-Structure Thermal Break

The floor is the primary source of "cold creep" from the ground. Insulation must be installed between the floor joists before the floorboards are laid. If the cabin is already built, this requires lifting the floorboards or insulating from a crawlspace.

1. Measure the internal distance between floor joists precisely.
2. Install 25mm to 50mm PIR insulation boards between the joists. Ensure a tight friction fit; any gaps larger than 3mm should be filled with low-expansion spray foam.
3. Support the boards using "saddle" clips or treated timber batten cleats nailed to the sides of the joists.
4. Apply a vapor barrier over the joists and insulation, overlapping seams by 150mm and sealing with foil tape. This prevents rising damp from infiltrating the cabin interior.
5. Install the floorboards directly over the vapor barrier, leaving a 10mm expansion gap around the perimeter.

Pro-Tip: If using mineral wool instead of PIR for the floor, ensure a 25mm air gap exists between the insulation and the ground to prevent moisture wicking.

Step 2: High-Efficiency Roof Encapsulation

Because heat rises, the roof is the most critical area for thermal retention. A "warm roof" configuration, where insulation is placed on top of the roof boards but beneath the final roofing material, is the most effective method for log cabins.

1. Install a breathable membrane over the existing roof deck to allow moisture to escape from the timber.
2. Fix a perimeter "eaves batten" the same thickness as your insulation (typically 50mm–100mm) to create a frame.
3. Lay PIR insulation boards tightly within the frame. Use staggered joints if applying two layers to eliminate thermal bridging.
4. Cover the insulation with a second waterproof, breathable membrane.
5. Install counter-battens (vertical) and tiling battens (horizontal) to create a ventilation path. This air gap is vital to prevent interstitial condensation.
6. Apply the final roofing material (shingles, EPDM, or metal sheets).

Step 3: Wall Insulation with Movement Compensation

Wall insulation is complex because logs must be allowed to "settle" (shrink in height) over the first two years of the cabin's life. Rigidly fixing insulation to the walls will cause gaps to open between logs as they shrink.

1. Install vertical "sliding battens." These are timber strips with elongated slots instead of circular screw holes. Screws are driven through the slots into the logs but not tightened fully, allowing the logs to slide up and down behind the battens.

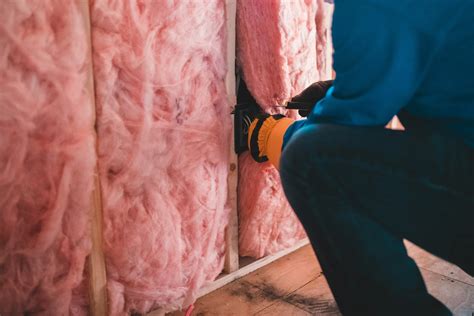

2. Place insulation (Rockwool or PIR) between these sliding battens.
3. Cover the assembly with a vapor barrier to protect the insulation from internal humidity (breathing, cooking, heating).
4. Fix the internal cladding (tongue-and-groove or plasterboard) to the sliding battens. This creates a "floating" internal wall that stays plumb and level while the exterior log shell moves.

Warning: Never use rigid adhesive to fix insulation directly to log walls. The structural movement will shear the adhesive bond or crack the internal finish.

Step 4: Chinking and Air-Infiltration Sealing

Even a well-insulated cabin will feel cold if "air changes per hour" (ACH) are too high due to drafts. Log cabins leak air at the corner notches and the longitudinal joints (tongue and groove).

1. Inspect all joints for visible daylight or air movement.
2. Apply backing rod (foam cord) into deep gaps.
3. Apply a high-quality elastic chinking compound over the backing rod. Unlike mortar, modern chinking stretches up to 100% of its original size, maintaining a seal as the logs move.
4. Focus specifically on the "saddle notches" at the corners, as these are primary points of thermal bypass.

Step 5: Glazing and Door Aperture Optimization

The transition points between timber and glass are frequent failure points for thermal integrity.

1. Ensure all windows are double-glazed with a minimum 16mm argon-filled gap.
2. Check the "architrave" or trim around windows. Remove the trim and fill the void between the window frame and the logs with specialized flexible "window and door" spray foam. Standard spray foam expands too forcefully and can bow the window frames.
3. Install heavy-duty EPDM weather stripping on door frames to ensure a compression seal when the door is latched.

Comparison of Thermal Conductivities and R-Values for Log Structures

The following table compares common insulation materials used in log cabin retrofits. Note that the "Required Thickness" column refers to the depth needed to achieve a standard residential-grade thermal break.

Note: Multi-foil R-values are highly dependent on the thickness of the adjacent air gaps.

Structural Movement Challenges and Thermal Bridge Remediation

Log cabins present unique maintenance challenges that can compromise insulation over time. Addressing these proactively prevents long-term structural decay and heat loss.

• Scenario: Internal Cladding Buckling




  • Root Cause: Internal battens were fixed rigidly to the logs without sliding brackets, preventing the logs from settling downward as they dried.
  • Actionable Fix: Remove the cladding, cut vertical slots into the battens, and re-install using "wafer head" screws with washers in the center of the slots to allow 25mm of movement in either direction.

• Scenario: Interstitial Condensation and Mold on Roof Deck




  • Root Cause: Insulation was installed directly against the roof shingles without a ventilation gap or breathable membrane, trapping moisture.
  • Actionable Fix: Reconstruct the roof layers to include a 25mm–50mm air gap between the insulation and the outer roof covering, ensuring soffit and ridge vents are unobstructed.

• Scenario: Log "Gapping" in Winter




  • Root Cause: Extreme low humidity causes logs to shrink more than anticipated, exceeding the expansion limits of the chinking.
  • Actionable Fix: Apply a secondary layer of wider-diameter backing rod and "Perma-Chink" or a similar high-elasticity sealant specifically rated for sub-zero temperatures.

• Scenario: Floor Cold Spots despite PIR Installation




  • Root Cause: Thermal bridging through the floor joists or gaps at the perimeter where the floor meets the wall.
  • Actionable Fix: Use closed-cell spray foam to seal the perimeter junction and ensure the vapor barrier is taped directly to the bottom wall log to create a continuous airtight seal.

Frequently Asked Questions

Does a log cabin need a vapor barrier if the wood is breathable?

Yes, a vapor barrier is essential when adding insulation. While logs are hygroscopic, internal moisture from human activity can condense inside the insulation layer (interstitial condensation), leading to hidden rot and reduced thermal performance. Always place the vapor barrier on the "warm side" of the insulation.

What is the minimum log thickness for year-round living without wall insulation?

Generally, logs should be at least 70mm to 90mm thick to provide enough thermal mass for seasonal use. However, even 90mm logs rarely meet modern building codes for permanent residences without supplemental insulation, which typically requires a total wall R-value of R-13 to R-21 depending on the climate zone.

Can I insulate my log cabin from the outside?

External insulation is possible and highly effective as it preserves the interior aesthetic and protects the logs from weathering. However, it requires a complete "wrap" of the building, followed by a new layer of siding or cladding, which significantly alters the traditional log cabin appearance and requires complex window/door casing extensions.

How do I stop drafts in a cabin that has already settled?

Focus on the "Top and Bottom" rule: seal the junction where the roof meets the walls and where the floor meets the walls. Use flexible gaskets or expanding foam tapes (like Compriband) that can accommodate the ongoing seasonal expansion and contraction of the timber.

Professional Log Cabin Thermal Optimization

Optimizing your log cabin’s thermal envelope is the single best investment for extending the structure's lifespan and reducing energy costs. By following these technical specifications for movement-conscious insulation, you transform a seasonal shed into a high-performance, climate-controlled living space.
