How To Install A Woodburning Stove: A Complete Professional Guide

Installing a woodburning stove requires rigorous adherence to building codes, precise structural clearance measurements, and airtight chimney connection protocols to ensure residential safety and optimal heating efficiency. Completing this multi-phase project successfully demands careful planning of hearth foundations, precise wall penetration techniques, and thorough post-installation draft testing before lighting the first fire.

Pre-Installation Planning and Regulatory Requirements

Executing a woodburning stove installation safely requires navigating strict municipal building codes, insurance mandates, and manufacturer installation manuals. Before purchasing materials, verify that your chosen appliance holds listings with recognized testing agencies such as Underwriters Laboratories or the EPA, which certifies compliance with particulate emission limits.

• Essential Tools & Materials: UL-listed woodburning stove, double-wall or triple-wall Class A insulated chimney pipe, support boxes, fire-rated mortar, cement backer board, non-combustible hearth extension pad, carbon monoxide detectors, framing square, plumb bob, tin snips, masonry bits, and high-temperature silicone sealant.
• Prerequisite Knowledge & Safety Standards: Familiarize yourself with NFPA 211 standards for chimneys, fireplaces, vents, and solid fuel-burning appliances. Ensure your local building authority issues a permit prior to breaking ground or cutting into roof structures.
• Budget & Duration Benchmarks: Plan for a total financial investment ranging from fifteen hundred to four thousand dollars, depending on whether you require extensive chimney routing. Expect the physical labor to span two to three full working days for a qualified DIYer or professional crew.

Step-by-Step Installation Procedure

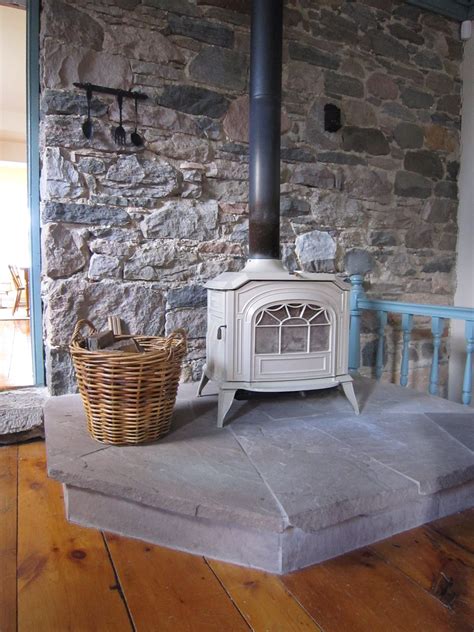

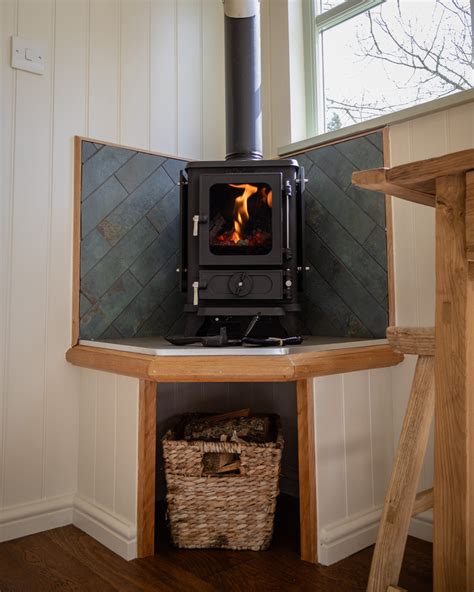

Step 1: Constructing the Non-Combustible Hearth Foundation

Before positioning the stove, you must build a structurally sound hearth that distributes the appliance's immense weight while protecting nearby combustible flooring from radiant heat and falling embers. Measure the stove's footprint and extend the non-combustible perimeter outward according to manufacturer specifications—typically sixteen inches to the front and eight inches to the sides and rear in North America. Lay down a base layer of cement backer board over wooden subfloors, and finish the surface with tile, stone, or a pre-cast hearth pad, ensuring it sits completely level.

Step 2: Determining Clearance to Combustibles and Positioning the Stove

Carefully consult the stove's owner manual to identify its specific clearance requirements from unprotected wooden walls and furniture. Place the stove onto your finished hearth and verify distances using a tape measure.

Warning: Never improvise or reduce manufacturer-mandated clearances unless you are installing an engineered, ventilated heat shield system that has been explicitly approved by the stove manufacturer and local building code officials.

Step 3: Planning and Cutting Wall or Ceiling Penetrations

Using a plumb bob dropped from the ceiling or a framing square pressed against the wall, map out the exact vertical path your chimney system will take. Your objective is to route the pipe straight up through the roof without intersecting ceiling joists or roof rafters whenever possible. If framing members must be cut to accommodate a ceiling support box, install proper header framing to restore structural load-bearing integrity. Maintain a mandatory two-inch airspace clearance between all combustible framing and the exterior surface of insulated chimney pipe.

Step 4: Installing the Chimney System and Roof Flashing

Assemble the chimney components from the stove collar upward, securing each slip-joint connection with locking bands or sheet metal screws as specified by the manufacturer. Pass the chimney through the ceiling support box, attic insulation shield, and roof penetration. Install a storm collar and rubber or metal roof flashing around the pipe on the exterior roof deck, sealing the upper edge underneath the shingles to prevent water infiltration. Cap the chimney with an approved rain cap and spark arrestor to protect the flue from weather elements and debris.

Step 5: Connecting the Connector Pipe and Final Sealing

Connect the interior stovepipe—usually twenty-four gauge black steel or double-wall stainless connector pipe—from the stove flue collar up to the ceiling support box adapter. Ensure a tight, secure fit at every joint, securing sections with three sheet metal screws per connection. Seal any minor joint gaps with high-temperature rated stove cement or silicone. Install magnetic stove thermometers on the connector pipe to monitor operating temperatures and prevent dangerous over-firing conditions.

Woodburning Stove Installation Parameters

Common Installation Failures and Field Fixes

• Root Cause: Insufficient draft upon initial lighting due to cold air trapped inside a newly installed, unheated chimney flue. Actionable Fix: Prime the chimney flue before lighting your main fire by holding a rolled-up piece of lit newspaper near the open damper or stove throat for thirty seconds to push a column of warm air upward.
• Root Cause: Smoke rollout into the living space when opening the stove door during operation. Actionable Fix: Ensure your home is not experiencing negative pressure caused by powerful kitchen range hoods or clothes dryers, and always crack the stove door slightly for five seconds to equalize pressure before opening it fully.
• Root Cause: Creosote accumulation caused by burning unseasoned, high-moisture firewood. Actionable Fix: Switch exclusively to seasoned hardwood with a moisture content below twenty percent, verified using a digital pin-type wood moisture meter.
• Root Cause: Water leaks appearing around the ceiling penetration during heavy rainstorms. Actionable Fix: Inspect the exterior roof flashing and storm collar, applying a generous bead of exterior-grade polyurethane or high-temperature silicone sealant along the upper counter-flashing edge.

Frequently Asked Questions

Do I need a building permit to install a woodburning stove?

Yes, nearly all municipal building departments require a permit and a subsequent post-installation inspection to verify that your setup complies with local fire and building codes. Failing to pull a permit can invalidate your homeowner's insurance policy in the event of a chimney fire.

Can I run a woodburning stove pipe horizontally through a wall?

Yes, you can run pipe horizontally through an exterior wall by utilizing an engineered through-the-wall kit that includes a wall pass-through module, a horizontal support tee, and an exterior chimney stack. However, vertical installations through the roof generally provide superior natural draft performance.

What is the best floor protection for under a wood stove?

Non-combustible materials such as slate, ceramic tile, brick, or engineered metal hearth pads placed over cement backer board provide the necessary thermal and ember protection. The assembly must have a low thermal conductivity rating to prevent heat transfer to the subfloor beneath.

How high must my chimney extend above the roof?

Your chimney must follow the ten-foot rule, meaning the top of the chimney must extend at least three feet above the highest point where it passes through the roof and at least two feet higher than any portion of the building within a ten-foot horizontal radius.

How do I cure high-temperature paint on a new stove?

Cure the factory-applied paint by building a series of three small, low-heat fires over the course of several days, allowing the stove to cool completely between each burn. This process hardens the coating and prevents noxious chemical fumes from overwhelming your living space during your first heavy winter burn.
