How To Install A Well Pressure Tank: A Complete Plumbing And Setup Guide

Installing a well pressure tank requires setting the internal air pre-charge pressure to exactly 2 PSI below your pressure switch cut-in setting, properly plumbing a brass tank tee equipped with safety valves, and wiring the pressure switch accurately. Correct installation prevents well pump rapid cycling, protects electrical components, and maintains stable water pressure throughout the plumbing system. Following standard plumbing codes and precise pressure calibration ensures maximum pump longevity and leak-free system operation.

Pre-Installation Planning and Equipment Checklist

Before beginning the installation, you must evaluate your property's water yield, existing electrical service, and space constraints. A well pressure tank stores pressurized water and utilizes an internal rubber diaphragm or bladder to maintain dynamic system pressure. This prevents the well pump motor from starting every time a household fixture opens.

To select the correct tank, evaluate your well pump's flow rate in gallons per minute (GPM). As a general industry rule, the tank's drawdown capacity (the volume of water delivered between pump shut-off and pump re-start) should match or exceed the pump's GPM rating for a minimum run cycle of one minute. For example, a 10 GPM pump requires a tank that provides at least a 10-gallon drawdown, which typically translates to a 30- to 35-gallon total tank volume depending on operating pressures.

Essential Gear, Tools, and Hardware

• Safety Equipment: Heavy-duty work gloves, ANSI-approved safety glasses, non-contact voltage tester, and digital multimeter.
• Plumbing Tools: Adjustable pipe wrenches (minimum 14-inch), tongue-and-groove pliers, PEX/pipe cutter, soldering torch (if copper), thread sealant (PTFE tape and anaerobic pipe dope).
• Pressure Calibration Tools: Tire pressure gauge (digital preferred), air compressor or bicycle floor pump.
• Core Components: NSF/ANSI 61 certified diaphragm or bladder pressure tank, solid brass tank tee (matched to tank inlet diameter, usually 1-inch or 1-1/4-inch NPT), 30/50 or 40/60 PSI pressure switch, 0-100 PSI liquid-filled pressure gauge, 1/2-inch or 3/4-inch boiler drain valve, and a 75 PSI spring-loaded pressure relief valve.

System Prerequisites & Operational Benchmarks

• Electrical Compliance: Must meet National Electrical Code (NEC) standards; double-pole circuit breaker (usually 15-amp or 20-amp, 240V service).
• Estimated Duration: 2 to 4 hours for standard replacement or new installation.
• Estimated Material Cost: $350 to $900 depending on tank capacity, stainless steel/brass manifold upgrades, and system piping material.

Step-by-Step Well Pressure Tank Installation Workflow

Step 1: Disconnect Electrical Power and Depressurize the System

Safety is paramount when working with high-voltage well pump controls and pressurized water lines.

1. Locate the dedicated circuit breaker for your well pump at the main electrical panel. Flip the breaker to the off position.
2. Tag the breaker panel to ensure no one re-energizes the system during maintenance.
3. Open a high-volume fixture, such as an outdoor hose spigot or lower-level laundry sink, to relieve static hydraulic pressure from the plumbing network.
4. Leave the valve open until water flow completely stops and the system pressure gauge reads 0 PSI.
5. Use a non-contact voltage tester inside the pressure switch terminal cover to confirm that power is fully disconnected before touching any wiring.

Warning: Never attempt to remove plumbing fittings or thread components while the system is under pressure. Trapped hydraulic pressure can eject heavy brass fittings at dangerous velocities, posing severe injury risks.

Step 2: Calibrate the Tank Pre-Charge Air Pressure

The air pre-charge inside the tank bladder must be calibrated before connecting the tank to the plumbing network. Adjusting pre-charge while the tank is full of water will produce an inaccurate reading.

1. Unscrew the protective plastic cap from the Schrader valve located on top of the pressure tank.
2. Attach a calibrated tire pressure gauge to check the factory air charge.
3. Identify your pressure switch settings. Standard factory switches are preset to either 30/50 PSI (cut-in at 30 PSI, cut-out at 50 PSI) or 40/60 PSI (cut-in at 40 PSI, cut-out at 60 PSI).
4. Calculate the target pre-charge pressure: target pre-charge equals the pressure switch cut-in pressure minus 2 PSI.


   • For a 30/50 PSI switch, set tank pre-charge to 28 PSI.
   • For a 40/60 PSI switch, set tank pre-charge to 38 PSI.
5. Use an air compressor to add air if the pressure is low, or depress the Schrader valve core to bleed off excess air until the exact target PSI is reached.
6. Replace and tighten the protective plastic valve cap.

Pro-Tip: Setting the pre-charge higher than the cut-in pressure causes a noticeable drop in household water pressure before the pump kicks on. Setting it lower than 2 PSI below cut-in risks tearing or over-stretching the internal rubber bladder over time.

Step 3: Assemble the Tank Tee Control Manifold

The tank tee is a multi-port brass manifold that centralizes all essential safety controls, switches, and drain outlets into a single compact assembly.

1. Wrap all male threaded brass fittings with 5 to 7 wraps of high-density PTFE thread tape, wrapping clockwise around the threads. Apply a thin, uniform layer of pipe dope over the tape.
2. Thread the main tank tee stem into the bottom union port of the pressure tank. Hand-tighten, then turn an additional 1.5 to 2 turns with a pipe wrench until seated firmly. Ensure side ports align horizontally.
3. Thread the 0-100 PSI pressure gauge into the top 1/4-inch NPT riser port.
4. Thread a 1/4-inch brass nipple into the secondary top port, then attach the pressure switch to this nipple. Hand-tighten and align the cover face for easy access.
5. Install the 75 PSI pressure relief valve into one of the designated side ports. Ensure the outlet points down or toward a floor drain line.
6. Install the boiler drain valve (hose bibb) into the remaining front/side port for system sampling and flushing.

[ Tank Schrader Valve ] || +----------+ | Pressure | | Tank | +----------+ || [Pressure Gauge] --- +--||--+ --- [Pressure Switch] [Boiler Drain] --- | Tank | --- [Relief Valve] | Tee | +------+ / \ [Inlet from Pump] [Outlet to House]

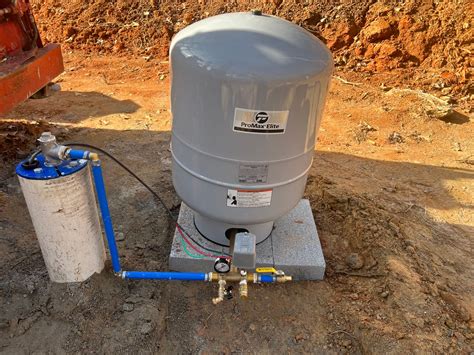

Step 4: Mount and Plumb the Tank to Main Water Lines

Positioning the tank correctly minimizes stress on connected pipe joints and prevents internal structural shifting.

1. Position the tank on a level, solid base (concrete floor or raised equipment pad). Use rubber isolation pads under the tank feet to dampen vibration.
2. Align the inlet port of the tank tee with the incoming main water line from the well pump.
3. Align the outlet port of the tank tee with the distribution main leading to the household plumbing.
4. Install union fittings on both the supply side and discharge side of the tank tee. Unions permit easy isolation and replacement of the tank in future service events.
5. Connect pipe materials using appropriate adapters (e.g., male NPT to PEX crimp, copper sweat adapter, or Schedule 80 PVC male thread adapters).
6. Secure piping within 12 inches of the tank tee using heavy-duty pipe clamps anchored to nearby framing.

Warning: Do not install a shut-off valve between the well pump supply line and the pressure switch port. Closing such a valve while the pump runs will isolate the pressure switch, preventing it from detecting system pressure, which can instantly burst pipes or burn out the pump motor.

Step 5: Wire the Pressure Switch and Execute System Re-Start

With plumbing sealed, complete the high-voltage electrical connections and commission the unit.

1. Remove the protective plastic cover from the pressure switch.
2. Route the incoming electrical feed line from the circuit breaker through a strain-relief conduit connector into the switch body.
3. Route the outgoing electrical load line from the well pump motor through the secondary strain-relief port.
4. Attach ground wires (green or bare copper) to the green grounding screws inside the switch housing.
5. Connect the two line power wires (typically black and red for 240V) to the outer line terminals labeled "LINE".
6. Connect the two pump load wires to the inner load terminals labeled "LOAD" or "MOTOR".
7. Re-verify wire tightness, inspect for loose strands, and reattach the plastic protective cover.
8. Close the boiler drain valve. Open one cold water faucet inside the home to allow trapped air to escape.
9. Switch the main circuit breaker back on. Observe the pressure gauge as the pump engages and charges the tank.
10. Verify that the well pump automatically shuts off when the system reaches the preset cut-out pressure (e.g., 50 PSI or 60 PSI).
11. Inspect all threaded and push/solder joints for fluid weeping or leaks.

Pressure Tank Sizing, Drawdown, and PSI Calibration Specifications

The following table provides accurate engineering parameters for standard residential diaphragm pressure tanks under typical operating switch windows:

Field Diagnostics and Common System Failures

Scenario 1: Rapid Cycling (Well Pump Turns On and Off Repeatedly)

• Root Cause: Rapid short-cycling typically points to a waterlogged pressure tank. This occurs when the internal rubber bladder ruptures, filling the air chamber with water, or when the air pre-charge bleeds out completely through a faulty Schrader valve core.
• Actionable Fix: Turn off power to the pump and drain the tank completely via the boiler drain. Check air pressure at the Schrader valve. If water spurts out of the air valve, the internal diaphragm has failed, and the pressure tank must be replaced. If no water escapes, recharge the air pressure to 2 PSI below the cut-in threshold and test the valve stem with soapy water for micro-leaks.

Scenario 2: Water Sputtering and Air Bursts at Faucets

• Root Cause: Excessive air pressure inside the tank pre-charge chamber (set higher than the cut-in setting), or air entering the pump intake line due to a low water table or leaking suction line check valve.
• Actionable Fix: Shut down power and drain the system to zero hydraulic pressure. Check the air valve with a digital pressure gauge. Bleed excess air until the setting rests exactly 2 PSI below the cut-in baseline. If air persists after correction, inspect the well drop pipe and underground suction line for vacuum leaks.

Scenario 3: Leakage Around Threaded Tank Tee Joints

• Root Cause: Insufficient thread sealant application, over-torquing that cracked plastic/brass fittings, or failure to wrap thread tape in the proper direction, causing tape to unravel during threading.
• Actionable Fix: Isolate power, drain system pressure, and disassemble the leaking threaded connection. Clean all male and female threads thoroughly with a wire brush. Re-apply 5 to 7 turns of PTFE tape clockwise, cover with a thin coating of non-hardening pipe dope, and re-torque until snug plus 1.5 turns.

Scenario 4: Continuous Pump Running Without Reaching Cut-Out Pressure

• Root Cause: Debris blocking the 1/4-inch pressure switch sensing nipple, a worn well pump impellor, or a cut-out pressure setting adjusted higher than the pump's mechanical lifting capacity.
• Actionable Fix: Turn off power, relieve pressure, and remove the pressure switch. Clear sediment and mineral scale out of the small brass nipple using a thin wire or drill bit. Inspect switch contact points for burning or pitting, and replace the switch if contacts are scorched.

Frequently Asked Questions

What should the air pre-charge PSI be set to for a well pressure tank?

The air pre-charge inside an empty tank must be set precisely 2 PSI below the cut-in pressure of your pressure switch. For a standard 30/50 PSI system, adjust pre-charge air pressure to 28 PSI. For a 40/60 PSI system, set the pre-charge air pressure to 38 PSI. Always measure and adjust pre-charge when the tank contains no water.

Do I need to install a check valve on the pressure tank tee?

No, you should not install a check valve directly on the pressure tank tee or anywhere between the pressure switch and the tank. Placing a check valve here masks system pressure changes from the switch, causing the pump to short-cycle or run continuously. Check valves should only be located at the pump output down in the well or on the primary suction line before the pressure controls.

How long does a well pressure tank typically last?

A high-quality diaphragm or bladder pressure tank lasts between 7 and 12 years under normal operating conditions. Factors that reduce tank lifespan include aggressive water chemistry (low pH, high iron), incorrect air pre-charge settings causing excessive bladder stretching, and undersized tanks that cause frequent pump cycling.

Can I install a larger pressure tank than my existing one?

Yes, installing a larger pressure tank is generally beneficial for your well system. A larger tank stores a higher volume of drawdown water, reducing the frequency of well pump motor starts per hour. Reducing pump cycles lowers electrical consumption, minimizes thermal stress on motor windings, and extends the overall operational lifespan of your submersible pump.

Master Your Well System Maintenance

Properly sizing, installing, and calibrating your well pressure tank ensures reliable hydraulic performance and safeguards your well pump motor against costly premature failures. If you encounter complex electrical setups, fluctuating well yields, or persistent pressure problems during installation, contact a licensed professional plumber or certified well system technician to inspect your configuration.
