Installing a wall-mounted pot filler requires running a dedicated 1/2-inch cold water supply line to a securely anchored drop-ear elbow behind the kitchen backsplash. Set the rough-in height between 12 and 18 inches above the highest cooktop burner, pressurize and leak-test the system at 60 PSI before closing the wall, and mount the articulated faucet body using thread sealant and a custom-fitted brass nipple. Adhering to standard IPC and UPC plumbing guidelines ensures maximum volumetric flow while preventing structural water intrusion behind finished cabinetry and tile.


--- Advertisement / Sponsored Links ---
Verified by SecureScan: No Viruses Detected
Format: Adobe PDF Downloads: 12,409 Size: 2.4 MB

Wall Anatomy, Pre-Installation Planning, and Tooling Checklist

Installing a pot filler requires both rough-in plumbing behind the wall and surface trim installation. Because an extended pot filler arm creates significant rotational leverage when filled with water or articulated, standard pipe straps alone are insufficient. You must install solid wood backing inside the stud cavity to support the weight of the brass faucet and resist mechanical fatigue over time.

Before opening drywall or running pipe, review local plumbing codes. Pot fillers are installed on cold water lines to avoid heating system sediment in culinary water. A dedicated shutoff valve placed upstream from the fixture—such as inside a adjacent cabinet or basement mechanical room—is recommended to allow isolation without shutting off water to the entire house.



Essential Gear, Tools, and Materials



  • Plumbing Supplies: 1/2-inch PEX (Type A or B) or Type L copper tubing, 1/2-inch female NPT brass drop-ear elbow, lead-free solder/flux (for copper) or crimp rings/tool (for PEX), 1/2-inch brass schedule 40 NPT nipple, thread sealing tape (PTFE), and anaerobic pipe thread sealant (pipe dope).
  • Structural & Framing Materials: 2x4 structural lumber (for backing block), 3-inch framing screws, non-corrosive wood-to-metal screws for the drop-ear flange.
  • Tools: Tubing cutter, pipe wrench, adjustable smooth-jaw wrench, laser or torpedo level, tape measure, drill/driver, 1/2-inch test plug, and pressure gauge kit.


Mandatory Prerequisites & Standards



  • Plumbing Code Compliance: Conformance with the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC).
  • Static Pressure Requirements: Supply line working pressure between 40 PSI and 80 PSI.
  • Backflow Prevention: Ensure the fixture height maintains a physical air gap of at least 1 inch above the rim of your largest vessel when resting on the stove grates.


Time and Budget Benchmarks



  • Execution Time: 3 to 5 hours for open-wall/new construction; 6 to 10 hours for retrofit installations through finished drywalled walls.
  • Estimated Project Cost: $200 to $600 for high-grade brass fixtures and rough-in plumbing supplies (excluding decorative backsplash tiling costs).

Precision Execution: Step-by-Step Pot Filler Rough-In and Trim Installation



Step 1: Determine Ergonomic Mounting Height and Wall Location

Locate the centerline of the cooktop. Measure from the top surface of the highest burner grate upward. Standard rough-in height places the center of the water outlet 12 to 18 inches above the grate. Place your largest stockpot onto the stove and measure its overall height; add 3 to 4 inches of clearance to allow effortless positioning without hitting the extended spout. Confirm the horizontal offset so the dual-articulating arms reach all burners without straining the brass joints.



Step 2: Install Solid Wood Blocking

Expose the wall cavity behind the cooktop. Cut a section of 2x4 structural lumber to fit tightly between the vertical wall studs at the targeted height. Mount the 2x4 flat against the rear wall plane or flush with the front stud faces, securing it with two 3-inch wood screws angled through each side into the studs. This block absorbs the dynamic load when the faucet arm is fully extended over the stove.

Warning: Never mount a pot filler drop-ear elbow directly to drywall, cement board, or unanchored copper piping. Unbacked drop-ear elbows will flex over time, breaking the mortar joint around the backsplash tile and causing internal wall leaks.



Step 3: Run the Cold Water Supply Line and Mount the Drop-Ear Elbow

Route a 1/2-inch cold water line from the nearest branch directly into the stud bay. Secure a heavy-duty brass 1/2-inch drop-ear elbow onto the face of your custom 2x4 wood block using stainless steel or brass screws. Connect the supply line to the drop-ear inlet using appropriate sweat, crimp, or press fittings. Ensure the face of the drop-ear elbow is level and set back far enough that, once tile and backer board are installed, the threads sit roughly 3/8 to 1/2 inch behind the finished wall face.

Pro-Tip: Wrap the threads of a temporary 1/2-inch steel or brass test nipple with PTFE tape and thread it firmly into the drop-ear elbow during framing. This prevents drywall mud, tile mortar, and grout from contaminating the internal NPT threads during wall finishing.



Step 4: Perform Hydrostatic Pressure Testing

Thread a 1/2-inch pressure gauge assembly into the rough-in stub-out. Turn on the water supply to pressurize the line to at least 60 PSI (or local code requirement) and inspect all soldered or crimped joints for moisture. Leave the line pressurized under observation for a minimum of 24 hours prior to closing the wall behind cement backer board. Any pressure drop indicates a slow leak that must be resolved immediately before tiling.



Step 5: Install Wall Coverings and Calculate Nipple Projection

Complete the installation of cement board, waterproofing membranes, and decorative backsplash tile around the stub-out pipe. Leave a clean round opening around the drop-ear elbow, ensuring the tile cutout does not obstruct the mounting footprint of the escutcheon plate. Once tile mortar and grout have fully cured, remove the temporary test plug.

Measure the depth from the outer face of the finished tile to the internal shoulder of the drop-ear elbow thread. Add the required thread engagement depth for your specific pot filler model (typically 1/2 inch into the fixture body). Select a solid brass schedule 40 1/2-inch NPT nipple of the exact calculated length so the fixture threads on tightly while bringing the escutcheon flush to the tile wall.

+--------------------------------------------------------------------------+ | CALCULATING PROPER NIPPLE LENGTH: | | | | [Depth from Tile Face to Drop-Ear Threads] | | + [Required Drop-Ear Thread Engagement (~0.5 in.)] | | + [Required Fixture Body Thread Engagement (~0.5 in.)] | | = TOTAL BRASS NIPPLE LENGTH | +--------------------------------------------------------------------------+



Step 6: Mount the Pot Filler Body and Escutcheon

Apply tape in a clockwise direction around both male ends of the brass nipple, then coat the threads with a smooth layer of non-hardening pipe dope. Thread the nipple into the wall drop-ear elbow and tighten it with a pipe wrench. Slide the decorative escutcheon plate over the brass nipple. Thread the main body of the pot filler onto the protruding nipple.

Use a smooth-jawed wrench (or wrap standard wrench jaws with electrical tape) to tighten the fixture until the body is snug against the wall and aligned vertically. Use a torpedo level placed against the main body shaft to guarantee plumb alignment. Secure any set screws on the underside of the escutcheon or wall flange using an Allen wrench.



Step 7: Flush System, Check Aerator, and Verify Flow

Remove the aerator from the end of the pot filler spout using the manufacturer-provided key or wrench. Turn on the upstream isolation valve, then slowly open both inline valves on the pot filler body (wall-side and spout-side handles). Allow cold water to discharge into a bucket for 60 seconds to flush out trapped air, pipe shavings, or residual thread sealant. Check all exposed wall connections for micro-weeping, re-install the aerator screen, and verify a smooth, non-splattering stream.


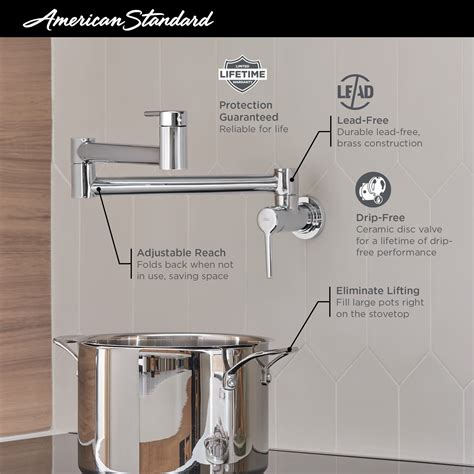

How to Install a Pot Filler and appropriate pot filler Height - Diana ...

How to Install a Pot Filler and appropriate pot filler Height - Diana ...

Technical Specifications and Piping Material Compatibility

Selecting the appropriate material combination for your internal rough-in directly impacts flow capacity, system structural integrity, and service life.



Parameter / Metric Type L Copper Pipe PEX-A / PEX-B Tubing Schedule 40 Brass Pipe
Nominal Inner Diameter (1/2") 0.545 inches 0.475 inches 0.622 inches
Max Working Pressure (at 73°F) 850 PSI 160 PSI 1,000+ PSI
Joining Method Lead-Free Sweat / ProPress Crimp / Expansion Rings Threaded NPT Connections
Flow Velocity Capability High (~4.0 GPM max) Moderate (~2.5–3.0 GPM max) Maximum (~4.5 GPM max)
Rigidity & Torque Resistance High structural stability Requires rigid drop-ear anchor Highest structural strength
Corrosion Resistance Prone to acidic pitting Impervious to scale/corrosion Superior dezincification resistance
Thermal Expansion Rate Low ($1.1 \times 10^{-5}\text{ in/in/}^\circ\text{F}$) High ($9.3 \times 10^{-5}\text{ in/in/}^\circ\text{F}$) Very Low ($1.0 \times 10^{-5}\text{ in/in/}^\circ\text{F}$)

Site Troubleshooting: Mechanical Failures and Remediation



Scenario 1: Escutcheon Plate Does Not Sit Flush Against Backsplash Tile



  • Root Cause: The brass nipple selected is too long, leaving exposed threads outside the wall surface, or the drop-ear elbow was mounted too far forward during rough-in framing.
  • Actionable Fix: Shut off the water supply and unthread the pot filler body. Measure the distance between the back edge of the escutcheon and the wall surface. Remove the nipple and replace it with a brass nipple that is precisely shortened by that measured distance (e.g., changing a 2-1/2-inch nipple to a 2-inch nipple). If the drop-ear elbow extends past the finished tile surface, you must trim the opening and set the drop-ear block deeper inside the stud bay.


Scenario 2: Persistent Dripping from the Spout Aerator



  • Root Cause: Solder flux, scale, or PTFE tape debris was carried into the valve body during initial line pressurized filling, scoring or propping open the internal ceramic disc cartridge seals.
  • Actionable Fix: Isolate the water supply at the upstream shutoff valve. Disassemble the handle assemblies using an Allen wrench to access the ceramic cartridges. Extract the cartridges, rinse them thoroughly under clean running water, clean out the internal brass valve seating with a soft brush, and reinstall. Replace damaged cartridges with original equipment manufacturer (OEM) replacements if scoring is visible on the ceramic face.


Scenario 3: Faucet Arm Droops or Flexes When Extended Full Length



  • Root Cause: Inadequate backing support behind the drop-ear elbow, or the mounting screws securing the drop-ear flange to the wood block have stripped out under dynamic load.
  • Actionable Fix: Remove the escutcheon to inspect the mounting flange. If the drop-ear elbow moves within the wall, access the stud cavity from the opposite side of the wall (e.g., through an adjoining room or pantry drywall) to install a solid 2x4 blocking arrangement. Anchor the drop-ear using heavy-gauge stainless steel wood screws.


Scenario 4: Low Water Output / Extended Fill Times



  • Root Cause: Debris buildup in the fine aerator screen, or restricted fluid dynamics caused by undersized PEX fittings or crimped supply lines inside the wall cavity.
  • Actionable Fix: Unscrew the aerator housing at the tip of the spout and clear away mineral deposits or pipe scale. If flow remains restricted with the aerator removed, check for a partially closed inline shutoff valve upstream. Ensure the main supply line was not kinked during installation behind the wall.

Frequently Asked Questions



Should a pot filler be connected to hot or cold water?

Pot fillers must be connected strictly to a cold water supply line. Feeding hot water through a pot filler can introduce sediment, rust particles, and dissolved metals that settle at the bottom of residential water heater tanks into cooking water.



What is the ideal installation height for a wall-mounted pot filler?

The standard height ranges between 12 and 18 inches above the top of the cooktop grates. Measure your tallest stockpot sitting on the stove, and ensure the bottom edge of the fully extended pot filler spout sits at least 3 to 4 inches above the top rim of the pot.



Do plumbing codes require a secondary shutoff valve for pot fillers?

While many local codes accept the dual internal valves built into the pot filler fixture, best plumbing practices and master installer standards strongly recommend installing an accessible shutoff valve upstream (such as in an adjacent cabinet). This allows quick isolation in the event of an emergency leak.



Can I install a pot filler on an exterior wall in cold climates?

Installing a pot filler on an exterior wall in freezing climates requires caution to avoid frozen and burst pipes. If an exterior wall installation is unavoidable, run the water line through interior framing or build out a insulated chase, placing continuous spray-foam or rigid board insulation behind the plumbing line between the pipe and the outer wall sheathing.

Professional Plumbing Support and Renovation Services

Installing a kitchen pot filler involves precise rough-in alignment, leak-proof fitting assembly, and rigid structural backing to ensure trouble-free operation over your cooktop. If you prefer to have a professional handle your wall-mounted kitchen fixtures, contact our team of master plumbers today to schedule a rough-in consultation or custom installation service.
