How To Install A Chimney Liner: Complete Step-by-Step DIY Guide

Installing a chimney liner is a critical structural upgrade that prevents combustible creosote buildup, protects masonry from acidic flue gases, and ensures compliance with NFPA 211 fire codes. This comprehensive guide covers measuring, selecting, and installing a flexible stainless steel chimney liner safely and effectively.

Pre-Operation & Equipment Checklist

A successful chimney lining project requires thorough preparation, adherence to international building codes, and specialized safety equipment. Before ascending to the roof, verify that your flue's dimensions match the heating appliance output specifications to prevent draft failures or carbon monoxide leakage.

• Essential Gear & Tools: Heavy-duty work gloves, safety glasses, a sturdy extension ladder, a scaffold or fall arrest harness, a wire chimney brush sized to the flue, tin snips, a power drill, masonry bits, a nose cone pulling cone, a pulling rope, and high-temperature silicone sealant rated to at least 500 degrees Fahrenheit.
• Materials: A UL-listed 304 or 316-ti stainless steel flexible liner kit (including the liner pipe, top plate, storm collar, and rain cap), rigid or flexible insulation blanket (if required by local code for zero-clearance), tee connector, and clean-out cap.
• Standards & Benchmarks: Must comply with NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances) and local municipal building codes. Always secure a local building permit before commencing work.
• Budget & Duration: Expect a material cost between 500 and 1,500 dollars depending on length and diameter, with a total execution time of 6 to 10 hours for a standard two-person crew.

Step-by-Step Chimney Liner Installation Workflow

Step 1: Inspect and Clean the Existing Chimney Flue

Before dropping any metal down the shaft, clear out all obstructions, soot, and hardened creosote. Ascend to the roof and lower a appropriately sized wire chimney brush down the flue repeatedly until the interior masonry walls are scraped clean. Access the smoke chamber and firebox from the bottom to shovel out the accumulated debris. Inspect the structural integrity of the clay tile liners for severe cracks, shifting, or major blockages that could snag the new stainless steel liner during descent.

Warning: Never attempt to install a liner over heavy creosote deposits or uncleaned flue tiles, as residual creosote remains a severe chimney fire hazard and can block smooth passage of the metal tubing.

Step 2: Measure the Flue Height and Determine Diameter

Accurate measurements dictate the success of your installation kit. Drop a weighted tape measure down from the very top of the chimney crown straight into the smoke chamber or fireplace damper shelf. Record the exact vertical distance to determine the required liner length, adding an extra 6 to 12 inches to account for trimming at the top and bottom terminations. Next, measure the interior dimensions of the existing clay tile or masonry opening to select the proper cross-sectional area, ensuring the new liner matches the appliance manufacturer's outlet collar requirements without constricting exhaust flow.

Step 3: Assemble and Wrap the Insulation Blanket (If Required)

If you are venting a wood-burning appliance or live in a cold climate where flue gas condensation is a primary concern, wrap the flexible stainless steel liner in an approved ceramic wool insulation blanket. Cut the insulation to match the exact length of your liner pipe, wrap it snugly around the exterior corrugations, and secure it tightly using aluminum foil tape or stainless steel binding straps provided in your insulation kit. Slide the protective mesh stocking (if included) over the insulated liner to prevent tearing as you guide the assembly down the masonry chase.

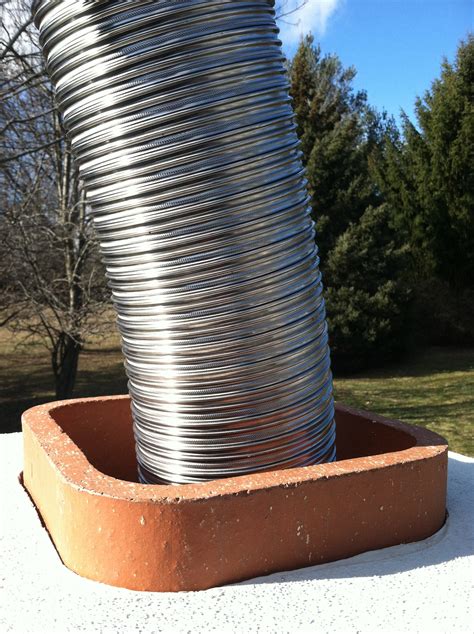

Step 4: Lower the Liner Down the Chimney Chase

Position one worker at the top of the chimney and another at the bottom near the fireplace smoke chamber or furnace connection point. Attach the pulling cone securely to the bottom end of the liner and tie a heavy-duty nylon rope to the nose cone eyelet. Gently feed the liner down from the roof while the ground crew guides the rope from below, carefully feeding the pipe to prevent sharp bends, kinks, or catching on internal masonry offsets. Maintain constant communication between the roof and the base until the bottom of the liner reaches the desired connection point in the firebox or utility room.

Pro-Tip: Wrap the top edge of the liner in heavy-duty duct tape temporarily before dropping it down the chimney to prevent sharp metal burrs from catching on mortar joints or tearing the insulation blanket.

Step 5: Install the Bottom Tee Connection and Support

Once the liner is seated at the base, disconnect the pulling cone and attach the tee connector or boot to the bottom of the flexible liner. Secure the tee snout through the masonry wall opening toward your wood stove, oil furnace, or gas appliance outlet. Install a support bracket or mounting legs beneath the tee assembly to bear the entire vertical weight of the liner, ensuring that the hanging load is transferred to the masonry foundation rather than resting entirely on the appliance flue collar.

Step 6: Secure the Top Plate, Storm Collar, and Rain Cap

Return to the roof and trim the top of the stainless steel liner using heavy-duty tin snips so that it extends approximately 3 to 4 inches above the top masonry crown. Apply a generous bead of high-temperature silicone sealant around the top clay tile or concrete crown. Lower the stainless steel top plate down over the protruding liner, pressing it firmly into the silicone bed to create a watertight seal. Secure the top plate to the masonry using masonry anchors. Slide the storm collar down over the liner until it rests snugly against the top plate, tighten the integrated clamping band, and seal the top seam with high-temperature caulk before attaching the rain cap securely.

Common Site Failures & Field Fixes

Even experienced installers encounter alignment and structural hurdles during a retrofit. Addressing these challenges immediately prevents costly callbacks and dangerous operational hazards.

• Root Cause: The liner gets firmly stuck halfway down the chimney chase against an offset or protruding mortar bulge.


  • Actionable Fix: Do not force or yank the pipe violently, as this will tear the metal corrugations. Pull the liner back up slightly, inspect the obstruction using a chimney camera or flashlight, and chip away the protruding mortar obstruction using a long masonry chisel or rotary hammer drill from above.
• Root Cause: Water leaks or pooling moisture observed on the smoke chamber floor after heavy rainfall.


  • Actionable Fix: The top plate seal has failed or the storm collar was improperly caulked. Reapply a heavy bead of exterior-grade, high-temperature silicone sealant around the storm collar and masonry joint, ensuring proper water runoff slope.
• Root Cause: Sluggish draft and persistent smoke roll-out upon appliance startup.


  • Actionable Fix: The liner cross-sectional area is either too large for the appliance output (causing rapid cooling of exhaust gases) or too small. Verify the flue sizing matches engineering specifications and insulate the chase thoroughly to maintain optimal internal flue gas temperatures.

Frequently Asked Questions

Can I install a chimney liner myself?

Yes, a capable DIYer with roofing experience, proper fall protection equipment, and basic masonry tools can install a flexible chimney liner kit over a weekend. However, always consult local building codes and schedule a professional inspection before lighting your first fire.

Do gas and oil furnaces require insulated chimney liners?

While rigid or flexible uninsulated 304 stainless steel liners are often sufficient for standard efficiency gas or oil appliances, heavily oversized masonry chimneys or exterior chimneys require insulated liners to prevent rapid condensation and acidic deterioration of the masonry.

What is the difference between 304 and 316-ti stainless steel liners?

Grade 304 stainless steel is ideal for standard wood-burning and gas appliances, whereas Grade 316-Ti (Titanium-stabilized) stainless steel offers superior resistance to extreme thermal stress and severe acid corrosion generated by coal, multi-fuel, and heavy wood-burning applications.

How often should a newly installed chimney liner be inspected?

Even with a brand new stainless steel liner, the National Fire Protection Association recommends having your chimney inspected and professionally swept at least once a year to clear soot, inspect for creosote glazing, and check structural seals.
