Comprehensive Guide To Inspecting Inner And Outer Tie Rods For Steering Precision And Safety
To inspect tie rods effectively, perform a dry park test by oscillating the wheel at the 9 and 3 o'clock positions to detect lateral play, followed by a visual check for ruptured grease boots or oxidized ball studs. Measurements exceeding 0.050 inches (1.27 mm) of axial movement or visible rhythmic deflection in the ball-and-socket joint typically indicate the need for immediate replacement to maintain steering geometry and prevent catastrophic component separation.
Essential Equipment and Safety Protocol for Steering System Analysis
Before initiating a steering linkage evaluation, the vehicle must be positioned on a level, stable surface. Because tie rod inspection requires both loaded (on-ground) and unloaded (raised) testing, access to a hydraulic floor jack and high-capacity jack stands is non-negotiable. Proper inspection goes beyond simply "shaking the wheel"; it involves understanding the load paths of the steering rack and the pivot points of the steering knuckles.

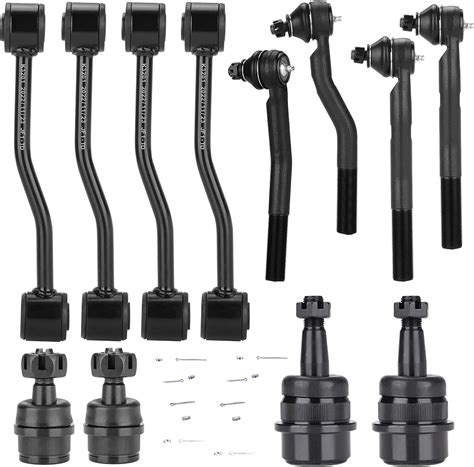

Technical proficiency requires an understanding of how the inner tie rod (connected to the steering rack or drag link) and the outer tie rod (connected to the steering knuckle) work in tandem to maintain the "Toe" setting of the vehicle’s alignment. Failure to identify a worn joint can result in rapid tire scrub, wandering steering, or total loss of directional control if the ball stud pulls out of its housing.
Mandatory Inspection Toolkit and Prerequisite Standards
- Lifting Equipment: 2-ton or 3-ton hydraulic floor jack and a pair of jack stands rated for the vehicle’s Curb Weight.
- Diagnostic Tools: A high-intensity LED flashlight, a 24-inch pry bar or "lady foot" bar, and a dial indicator for measuring precise axial play if tolerances are borderline.
- Safety Gear: ANSI Z87.1 rated safety glasses (to protect from falling debris and road salt) and heavy-duty nitrile gloves.
- Prerequisite Knowledge: Familiarity with the vehicle’s specific steering architecture—whether it utilizes a Rack-and-Pinion system or a Recirculating Ball/Parallelogram linkage (common in trucks and older SUVs).
- Time Benchmarks: 30 to 45 minutes for a comprehensive four-wheel or front-end inspection.
- Estimated Cost: $0 (DIY inspection) to $150 (professional diagnostic fee including a full digital vehicle inspection).
Systematic Workflow for Evaluating Tie Rod Integrity
The inspection process must be bifurcated into "Loaded" and "Unloaded" phases. A loaded test reveals play that occurs under the weight of the vehicle, while an unloaded test allows you to isolate the joint from the friction of the tire against the pavement.
Step 1: The Static Dry Park Stress Test
With the vehicle’s engine off and the wheels on the ground, have an assistant rapidly oscillate the steering wheel back and forth approximately 45 degrees in each direction. While the steering column is in motion, crouch down and observe the outer tie rod ends.
Look for "lost motion"—this occurs when the steering linkage moves, but the wheel does not immediately react. Place your hand over the tie rod ball joint (carefully avoiding pinch points). If you feel a "clunk" or "pop" through the metal, the internal ball and socket have worn past their service limit. This test is particularly effective for identifying early-stage wear in the inner tie rod, as the mechanical advantage of the steering rack will highlight internal slack.
Step 2: Unloading the Suspension and Securing the Chassis
Loosen the lug nuts slightly while the vehicle is on the ground, then raise the front of the vehicle using the designated jacking points. Place jack stands under the frame or the reinforced pinch welds.
Warning: Never conduct a steering inspection while the vehicle is supported only by a hydraulic jack. Hydraulic failure can occur without warning, leading to severe injury.
Once the vehicle is secure, remove the front wheels to provide an unobstructed view of the steering knuckles, inner tie rod bellows, and outer tie rod adjustment sleeves.
Step 3: Performing the 9 and 3 O’Clock Deflection Test
Grasp the brake rotor (or the tire if you chose to leave it on) at the 9 o’clock and 3 o’clock positions. Apply a rhythmic push-pull motion, alternating force between your left and right hands.
If you detect lateral movement, observe the outer tie rod end. If the ball stud remains stationary while the outer housing moves, the joint is defective. If the entire tie rod assembly (inner and outer) moves in and out of the steering rack housing, the fault lies with the inner tie rod joint or the steering rack mounting bushings.
Pro-Tip: Distinguish between wheel bearing play and tie rod play by having an assistant watch the steering knuckle. If the knuckle moves with the rotor, it is a steering component. If the rotor moves but the knuckle remains still, the wheel bearing (hub assembly) is the culprit.
Step 4: Assessing Inner Tie Rods and Bellows Boots
The inner tie rod is encased in a rubber or thermoplastic bellows boot to protect it from environmental contaminants. Squeeze the boot and check for the presence of power steering fluid; if the boot is full of oil, the internal seals of the steering rack have failed, which often necessitates a rack replacement rather than just a tie rod.
To test the inner tie rod specifically, use a pry bar to apply leverage between the inner tie rod housing and the steering rack body. There should be zero perceptible "in-and-out" play. If the joint feels "springy" or exhibits a metallic "click" under leverage, the internal socket is fatigued.
Step 5: Visual Inspection of Boots and Hardware
Examine the dust boots on the outer tie rods. These boots are designed to retain grease and exclude water. If the rubber is cracked, torn, or missing its retaining clip, the grease will eventually be replaced by road grit, leading to abrasive wear of the ball and socket.
Check the condition of the castle nut and cotter pin (or the prevailing torque lock nut). If the nut shows signs of backing off or if the cotter pin is sheared or missing, the joint is a major safety hazard. Furthermore, inspect the adjustment sleeve or jam nut for heavy oxidation. If the threads are completely seized by rust, an alignment technician will be unable to adjust the toe-in, necessitating replacement even if the joint itself is technically tight.
How To Tell If Your Car Needs Tie Rods at Raven Goetz blog
Comparative Specifications for Steering Component Health
The following table outlines the standard tolerances and physical indicators used by ASE-certified technicians to determine the serviceability of steering components.
| Component Feature | Standard/Healthy Condition | Failure Threshold/Wear Indicator | Required Action |
|---|---|---|---|
| Axial Play (In-and-Out) | 0.000" to 0.010" | > 0.050" or visible rhythmic movement | Immediate Replacement |
| Radial Play (Up-and-Down) | No perceptible movement | Any detectable vertical "slop" | Immediate Replacement |
| Dust Boot Integrity | Sealed, flexible, no grease leakage | Cracks, tears, or total absence of boot | Replace Joint or Boot |
| Steering Response | Linear, immediate wheel reaction | "Dead zone" or wandering at highway speeds | Diagnostic & Alignment |
| Turning Resistance | Smooth throughout 360° rotation | Binding, "notchy" feel, or heavy hard spots | Inspect Rack & Ball Joints |
| Hardware State | Torqued to OEM spec (e.g., 35-55 ft-lbs) | Missing cotter pins or rounded nuts | Replace Hardware & Re-torque |
Identifying Failure Scenarios and Field Rectifications
Understanding the etiology of tie rod failure allows for more accurate diagnostics and prevents the "parts cannon" approach to vehicle repair where components are replaced unnecessarily.
Scenario: Excessive "Feathered" Tire Wear
- Root Cause: A worn tie rod has allowed the wheel to deviate from the specified Toe-in setting. As the vehicle moves forward, the tire is essentially being dragged sideways across the asphalt, scrubbing the tread blocks in a diagonal pattern.
- Actionable Fix: Replace both the inner and outer tie rods (as wear is usually bilateral) and perform a professional four-wheel alignment to reset the steering geometry to factory specifications.
Scenario: Audible "Popping" During Low-Speed Maneuvers
- Root Cause: The grease inside the ball-and-socket joint has dissipated or dried out, leading to metal-on-metal galling. The ball stud "sticks" and then "slips" as the steering knuckle rotates, creating a resonant pop through the suspension.
- Actionable Fix: Replace the affected tie rod end. Do not attempt to inject grease into a sealed, non-serviceable joint that has already begun to make noise, as the internal geometry is already compromised.
Scenario: Steering Wheel Vibration (Shimmy) at 55+ MPH
- Root Cause: While often confused with wheel imbalance, a loose tie rod allows the wheel to oscillate or "flutter" at high speeds because the steering linkage can no longer provide sufficient dampening against road irregularities.
- Actionable Fix: Conduct a 9-and-3 o'clock test. If play is found, replace the tie rod. If no play is found, proceed to balance the tires and inspect the lower control arm bushings.
Scenario: Seized Adjustment Sleeves
- Root Cause: Galvanic corrosion between the steel tie rod threads and the adjustment sleeve (often worsened by road salt exposure) has fused the components together.
- Actionable Fix: Apply a high-quality penetrating oil and allow it to soak for 24 hours. If the sleeve remains seized, use controlled heat from an induction heater or oxy-acetylene torch to expand the sleeve before attempting to turn it with a pipe wrench. If threads are damaged, replace the entire assembly.
Frequently Asked Questions
Can I replace just the outer tie rod if the inner one is still tight?
Yes, it is possible to replace only the outer tie rod end; however, if one component has reached the end of its service life due to mileage, the other is likely close behind. Since an alignment is required after replacing either part, many technicians recommend replacing both the inner and outer ends simultaneously to save on long-term labor costs.
How long do tie rods typically last under normal driving conditions?
While there is no fixed mileage interval, most tie rods last between 70,000 and 100,000 miles. Longevity is heavily influenced by road conditions (potholes), climate (salt/humidity), and driving habits. Heavy-duty vehicles or those used for off-roading may require more frequent inspections and replacements.
Is it safe to drive with a loose tie rod?
Driving with a loose tie rod is extremely hazardous. A worn joint can fail completely, causing the wheel to flop outward or inward independently of the steering wheel's input, leading to an immediate and uncontrollable crash.
Do I always need an alignment after tie rod inspection or replacement?
Inspection does not require an alignment, but any replacement of the inner or outer tie rod does. Because the tie rod determines the "Toe" angle (the direction the tires point relative to the centerline), even a difference of one or two thread pitches during installation can cause severe tire wear and handling issues.
Ensure Your Vehicle Stays On the Right Path
Maintaining your steering system is a critical component of automotive safety and operational economy. If your inspection reveals any degree of mechanical play or boot degradation, prioritize the replacement of your tie rods and schedule a professional alignment to protect your tire investment and ensure predictable handling.
