How To Hang Art On Brick Wall Surfaces: The Complete Masonry Mounting Guide

Securely mounting artwork to brick requires matching the weight of the frame to the correct mechanical fastener or clamp system while accounting for substrate density. For objects under 30 pounds, spring-steel brick clamps or masonry expansion anchors installed into mortar joints provide optimal retention without fracturing the brick face. Heavier displays exceeding 50 pounds necessitate carbide-drilled pilot holes into solid brick or mortar, reinforced with heavy-duty sleeve anchors or concrete screws.

Pre-Hanging Tooling & Substrate Assessment

Before attempting to drive fasteners into brick masonry, you must evaluate the structural integrity of both the clay units and the surrounding mortar matrix. Historic clay bricks (commonly found in pre-1950s structures) are significantly softer and more porous than modern extruded brick, requiring lower torque settings and specialized soft-mortar sleeve anchors. Furthermore, you must choose between damage-free removable options (suitable for renters) and permanent mechanical anchor installations based on overall payload demands.

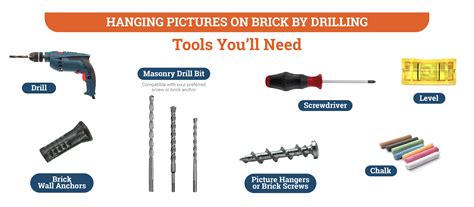

Equipment & Tooling Checklist

• Essential Hardware & Tools:


  • Hammer drill or high-torque variable-speed cordless drill
  • Carbide-tipped masonry drill bits (5/32-inch, 3/16-inch, and 1/4-inch diameter)
  • Conical plastic wall anchors, Tapcon masonry screws, or brass-plated expansion anchors
  • Spring-steel brick clamps (for non-destructive, surface-level mounting)
  • Compressed air duster or manual blow bulb (for hole evacuation)
  • Heavy-duty picture wire, D-rings, or French cleats
• Measurement & Alignment Gear:


  • 24-inch torpedo spirit level or laser level
  • Steel measuring tape and carpenter's pencil
  • Painter's tape (for surface marking and depth-stop flagging)
• Safety & Protective Gear:


  • ANSI-approved safety goggles
  • N95 respirator dust mask (silica dust protection)
  • Heavy-duty work gloves
• Benchmark Standards:


  • Estimated Execution Time: 20 to 45 minutes per art piece
  • Project Budget: $15 to $50 (depending on hardware and drill bit requirements)

Step-by-Step Masonry Art Installation Protocol

Step 1: Substrate Analysis and Weight Calculation

Weigh the framed artwork using a digital scale to determine the total load capacity requirement. For frames under 10 pounds, spring-steel brick clamps designed to clip onto protruding mortar joints offer a non-destructive mounting solution. For art pieces weighing between 10 and 30 pounds, target the mortar joints using standard plastic expansion plugs. For heavy mirrors, oversized canvases, or frames weighing over 30 pounds, plan to anchor directly into the brick face using concrete screws or steel sleeve anchors.

Warning: Never drill into historic soft brick or crumbling mortar joints without testing a non-consequential area first. Silica dust released during drilling is hazardous; always wear an N95 mask and protective eyegear during operations.

Step 2: Spatial Marking and Height Alignment

Determine the center height of the artwork. The standard gallery viewing height places the center point of the frame at 57 inches to 60 inches from the finished floor level.

1. Calculate the distance from the top of the art frame to the tensioned hanging wire or D-ring hook point.
2. Measure up 57 to 60 inches on the wall, add or subtract your wire tension displacement, and mark the anchor target point using painter's tape and a pencil.
3. Position your spirit level across the mark to ensure horizontally aligned dual-hook setups.

Step 3: Precision Drilling and Hole Evacuation

When drilling into masonry, select a carbide-tipped bit matching the outer diameter of your expansion anchor or concrete screw specification (typically 5/32-inch bit for 3/16-inch concrete screws).

1. Wrap painter's tape around the drill bit to mark the required depth (add 1/4-inch beyond the anchor length to accommodate masonry dust settlement).
2. Set your drill to hammer mode (or standard rotary mode for soft mortar) and position the bit perpendicular (90 degrees) to the masonry surface.
3. Apply firm, steady forward pressure while running the drill at medium speed until reaching the depth marker.
4. Insert a blow bulb or compressed air straw into the drilled hole and blow out all remaining silica dust.

Pro-Tip: Proper dust clearance is essential. Trapped masonry dust prevents expansion plugs from gripping the hole walls, reducing anchor holding capacity by up to 50 percent.

Step 4: Anchor Insertion and Hardware Drive

With the pilot hole clean and clear, prepare your chosen mechanical fastener system.

1. Align the plastic expansion anchor or brass sleeve with the opening.
2. Gently tap the anchor flush with the masonry surface using a rubber mallet or light hammer.
3. Thread the picture hook screw or concrete screw through your hanging bracket and into the anchor.
4. Drive the screw tightly until the anchor expands against the interior walls of the masonry hole. Avoid over-torquing, which can strip the internal threads of plastic anchors or crack fragile mortar.

Step 5: Frame Mounting and Level Calibration

Once the mechanical fasteners are firmly locked into place, mount the frame onto the hooks or cleat system.

1. Mount the hanging wire, D-rings, or French cleat onto the installed wall anchors.
2. Place a 24-inch spirit level across the top edge of the frame.
3. Make minor lateral adjustments to center the weight and achieve absolute horizontal alignment.

Mounting Method Performance & Material Specifications

Selecting the right mounting system prevents catastrophic hardware failures and structural damage to your masonry. Review the performance thresholds below to choose the correct approach for your artwork.

Structural Failures & Field Troubleshooting

Mortar Joint Spalling or Crumbling During Drilling

• Root Cause: The drill was set to high-impact hammer mode on aged, soft lime-based mortar, or the drill bit was dull, causing thermal and mechanical breakdown of the joint matrix.
• Actionable Fix: Switch off the hammer function and use standard rotary drilling mode with a brand-new carbide-tipped bit. If the hole has already blown out, scrape away loose material, fill the cavity with quick-setting hydraulic mortar patch compound, allow it to cure for 24 hours, and redrill the hole.

Brick Clamp Instability or Failure to Grip

• Root Cause: The mortar joint is flush with the brick face, lacking the minimum 1/4-inch square recess necessary for the clamp's tension teeth to grab the top and bottom edges of the brick.
• Actionable Fix: Do not force spring clamps onto flush mortar joints. Transition to hardwall masonry pin hooks for lightweight items (under 10 lbs), or drill a dedicated 3/16-inch anchor hole directly into the mortar line using a plastic expansion plug for heavier pieces.

Expansion Anchor Spinning inside the Hole

• Root Cause: The drill bit wobbled during operation, creating an oversized or out-of-round pilot hole, preventing the anchor casing from biting into the brick sidewalls.
• Actionable Fix: Remove the loose anchor. Insert two wooden toothpicks or a plastic anchor shim dipped in two-part masonry epoxy into the hole, then reinsert the expansion anchor flush. Allow the epoxy to cure fully before loading weight onto the fastener.

Art Piece Tilting Forward Away from Wall

• Root Cause: The picture wire attached to the back of the frame is slack, or the wall hook extends too far out from the masonry face.
• Actionable Fix: Shorten and retighten the picture wire across the back of the frame so it stays taut. Alternatively, swap out traditional hanging hooks for a flush-mount French cleat system secured directly to the brick face.

Frequently Asked Questions

Should I drill into the brick or the mortar joint?

Drilling into mortar joints is recommended for lightweight to medium art pieces (under 30 lbs) because mortar is softer, easier to drill, and simple to repair with mortar patch if the art is removed. However, for heavy artwork exceeding 30 to 50 lbs, drill directly into the solid face of the brick, as structural brick offers significantly higher pull-out and shear strength than aged mortar.

How do you hang heavy art on a brick wall without drilling holes?

You can use heavy-duty spring-steel brick clamps to hang art up to 25 pounds without drilling, provided your brick wall has recessed mortar joints at least 1/4-inch deep. Adhesive hooks and tapes generally fail on porous brick due to texture, dust, and temperature shifts, making clamps the only reliable non-drill option.

What bit type is required to drill into a brick wall?

Always use a carbide-tipped or diamond-tipped masonry drill bit. Standard high-speed steel (HSS) or wood bits will dull immediately upon contacting clay brick or mortar. For larger projects involving dense structural brick, use an SDS-Plus rotary hammer drill equipped with a dedicated carbide masonry bit.

Will double-sided mounting tape work on interior exposed brick?

Double-sided mounting tape is generally ineffective on raw interior brick surfaces. The rough, porous texture of brick prevents complete adhesive contact, and microscopic brick dust breaks down the adhesive bond over time, leading to sudden mounting failures.

How do you fill holes in a brick wall after removing artwork?

To repair holes drilled into mortar joints, clean out dust and pack the cavity with pre-mixed mortar repair sealant or acrylic mortar patch using a caulking gun, smoothing the surface with a damp finger. For holes drilled into the brick face, fill the opening with color-matched masonry filler or custom-tinted two-part epoxy paste matched to your brick's natural tone.

Elevate Your Interior Wall Displays

Mastering masonry attachment techniques opens up new possibilities for displaying fine art, heavy mirrors, and architectural features across exposed brick walls. Choose the appropriate anchor hardware based on your payload requirements to keep your artwork secure and your walls structurally sound.
