How To Flat Tow: The Complete Technical Guide To Dinghy Towing Behind An RV

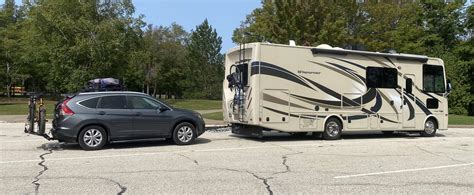

Flat towing, or "dinghy towing," is the process of pulling a vehicle behind a motorhome with all four wheels on the ground using a tow bar and a vehicle-specific base plate. To ensure safety and mechanical integrity, you must verify transmission lubrication requirements, install a supplemental braking system, and maintain a level tow bar height within a three-inch variance.

Essential Equipment and Vehicle Compatibility Assessment

Before attempting to flat tow, you must confirm that your "dinghy" vehicle is mechanically capable of being towed with all four wheels down. Many modern vehicles, particularly those with front-wheel drive and automatic transmissions, rely on the engine running to circulate transmission fluid. Towing these vehicles without modifications can lead to catastrophic transmission failure within miles. Always consult your vehicle's owner’s manual under the "Recreational Towing" section to verify compatibility.

Mandatory Equipment Checklist

• Vehicle-Specific Base Plate: A steel framework engineered to bolt directly to the towed vehicle’s chassis, providing the attachment points for the tow bar.
• Tow Bar: The mechanical link between the RV’s hitch receiver and the dinghy’s base plate, typically rated for 5,000 to 10,000 lbs.
• Safety Cables: Coiled or straight steel cables designed to keep the vehicle attached to the RV in the event of a tow bar failure.
• Supplemental Braking System: A secondary braking unit installed in the towed vehicle that activates its brakes in synchronization with the RV.
• Wiring Kit and Diodes: A system that integrates the RV's signal lights with the towed vehicle's tail lights.
• High-Low Adapter: A hitch extension used to ensure the tow bar remains level between the two vehicles.
• Battery Maintainer/Charge Line: A circuit that utilizes the RV’s alternator to keep the dinghy’s battery charged while the ignition is in the "ACC" or "ON" position.

Project Benchmarks

• Estimated Cost: $2,500 – $4,500 for professional installation of all components.
• Installation Time: 8–12 hours for a complete system integration.
• Technical Difficulty: High; requires knowledge of 12V DC electrical systems, torque specifications, and frame-mount mechanical assembly.

Comprehensive Flat Towing Execution Workflow

The process of flat towing involves both physical hardware connection and specific mechanical configuration of the towed vehicle's drivetrain. Failure to follow the sequence exactly can result in drivetrain damage or "runaway" vehicle scenarios.

Step 1: Verification of Drivetrain Lubrication

Before connecting hardware, you must understand how your vehicle stays lubricated while stationary. Manual transmissions and vehicles with a manual-shift transfer case are generally the best candidates. However, many modern SUVs use electronic transfer cases that require a specific button-press sequence to reach a "True Neutral" state.

1. Consult the owner’s manual for the exact "Recreational Towing" procedure.
2. For automatic vehicles not factory-approved for flat towing, you may need to install a transmission lube pump or a driveshaft disconnect.
3. Verify if the steering column locks. If it does, the ignition must remain in the "Accessory" position to allow the front wheels to track behind the RV during turns.

Step 2: Chassis-Mounted Base Plate Installation

The base plate is the foundation of the flat tow setup. Unlike a standard hitch, it is mounted to the front of the vehicle, often requiring the temporary removal of the front fascia and bumper core.

1. Align the base plate with the vehicle's frame rails.
2. Use Grade 8 hardware and red high-strength thread locker on all bolts.
3. Torque all fasteners to the manufacturer’s specific foot-pound requirements.
4. Ensure the attachment tabs are accessible through the grill or specialized cutouts in the fascia.

Step 3: Integrating the Lighting and Signal System

To remain road-legal, the towed vehicle must mirror the RV’s turn signals, brake lights, and running lights.

1. Use a diode-based wiring kit to prevent electrical backfeed from the RV into the towed vehicle’s sensitive Electronic Control Units (ECUs).
2. Tap into the factory tail light harness and run the 4-way or 7-way wire toward the front of the vehicle.
3. Install a dedicated plug-in mount on the front bumper for a clean umbilical cord connection.

Pro-Tip: If you prefer not to splice into factory wiring, magnetic LED light bars can be mounted on the roof or trunk, though this requires manual setup every time you tow.

Step 4: Connecting the Tow Bar and Safety Cables

With the hardware installed, you can now physically link the vehicles.

1. Park the RV and the dinghy on a level surface, roughly 3 to 4 feet apart.
2. Extend the tow bar arms and click them into the base plate tabs using the provided pins and linchpins.
3. Check the height difference between the RV hitch and the dinghy base plate. It must be within 3 inches of level to prevent "diving" during braking or "bucking" during acceleration. Use a high-low adapter if necessary.
4. Cross the safety cables in an "X" pattern under the tow bar. This creates a cradle that will catch the tow bar tongue if it ever disconnects from the hitch ball.

Step 5: Configuring the Supplemental Braking System

Most jurisdictions require a supplemental braking system for any load over 3,000 lbs. These systems generally fall into two categories: portable (drop-in) or permanent (hidden).

1. For portable systems, place the unit on the driver-side floorboard and attach the actuator claw to the brake pedal.
2. Adjust the sensitivity settings based on the weight of the dinghy.
3. Connect the "Breakaway Switch." This is a small pin-activated switch on the front bumper connected to the RV by a thin steel cable. If the vehicle completely detaches, the pin pulls out, triggering the dinghy's brakes to lock instantly.

Warning: Never tow without a functional breakaway switch. A detached vehicle traveling at highway speeds is a lethal projectile.

Step 6: Final Drive Sequence and Neutral Engagement

This is the most critical mechanical step. You must ensure the vehicle is rolling freely.

1. Start the engine of the dinghy.
2. Shift the transfer case into Neutral (N) according to the manufacturer’s specific sequence (often involves holding a button with a pen for 10 seconds).
3. Shift the transmission into Gear (Drive or Reverse) to ensure the vehicle does not move under its own power.
4. Shift the transmission into Park (for most automatics) or the designated gear specified in the manual.
5. Turn the engine off, but ensure the steering wheel remains unlocked if required.
6. Step out and verify that the tow bar arms have "locked" into their extended positions by slowly pulling the RV forward a few feet.

Technical Comparison of Towing Methodologies

Troubleshooting Common Flat Towing Failures

Scenario 1: The "Death Wobble" (Violent Front-End Shaking)

• Root Cause: This is most common in Jeep Wranglers and Grand Cherokees. It occurs when the front wheels lose their centering alignment due to road imperfections, causing a harmonic oscillation in the steering linkage.
• Actionable Fix: Install a heavy-duty steering stabilizer or a specialized "tow wiring kit" that keeps the electronic power steering (EPS) energized while towing. This provides the necessary damping to prevent oscillation.

Scenario 2: Dead Battery Upon Arrival

• Root Cause: Many vehicles require the ignition to be in the "ACC" position to keep the steering column unlocked, which drains the battery via the vehicle's computer systems and supplemental brake power draw.
• Actionable Fix: Install a 12V charge line from the RV’s 7-way plug to the dinghy’s battery with a 15-amp inline fuse. This ensures the RV’s alternator keeps the dinghy battery topped off during transit.

Scenario 3: Transmission Overheating or Fluid Spray

• Root Cause: The vehicle was towed in "Park" or "Drive" without the transfer case being properly shifted into Neutral, or the vehicle is not rated for flat towing.
• Actionable Fix: Immediately stop and check the transmission fluid color and smell. If it is burnt, do not continue towing. Re-verify the "Recreational Towing" section of the manual. You may need a flatbed trailer to transport the vehicle to a service center.

Scenario 4: Tow Bar "Binding"

• Root Cause: When the RV and dinghy are on uneven ground or at an angle, the internal locking pins in the tow bar arms can become jammed under tension, making it impossible to disconnect.
• Actionable Fix: Slightly move the RV forward or backward to release tension. Alternatively, use a "non-binding" tow bar which features a release lever designed to work even when the vehicle is under significant load.

Frequently Asked Questions

Can I back up while flat towing my vehicle?

No, you cannot back up a flat-towed vehicle. Because the front wheels of the dinghy are free-castering to follow the RV, reversing will cause the front wheels to snap to full lock in one direction, potentially bending the tow bar, damaging the base plate, or destroying the vehicle's tires and suspension. Always plan your route to ensure you have a clear pull-through exit.

Do I need a supplemental braking system if my RV is heavy?

Yes, supplemental braking is a legal requirement in nearly all U.S. states and Canadian provinces for vehicles over a certain weight (often 3,000 lbs). Beyond legality, it is a safety necessity. Without it, the weight of the dinghy pushes the RV during a stop, significantly increasing braking distances and potentially causing the RV's brakes to overheat and fail.

Will flat towing add miles to my odometer?

In most modern vehicles (manufactured after 2000), miles are recorded electronically via the transmission's output shaft sensor or wheel speed sensors. When the ignition is in the "Off" or "ACC" position as required for towing, the odometer does not register the distance traveled. However, you should check your specific make and model, as some older mechanical odometers will still count miles.

Is it better to tow in Neutral or Park?

This depends entirely on the vehicle's transfer case. For most 4WD vehicles with a manual or electronic neutral-capable transfer case, the transfer case is placed in Neutral, and the transmission is placed in Park. This prevents the internal components of the transmission from spinning while allowing the wheels to rotate freely. Never guess this step; always follow the manufacturer’s manual exactly.

Optimize Your RV Towing Configuration

Mastering the technical nuances of flat towing ensures your travels remain safe and your secondary vehicle stays mechanically sound. Invest in high-quality, non-binding hardware and a proportional braking system to provide the smoothest towing experience possible.
