How To Find A Leak In A Pool Liner: A Professional Diagnostic Guide

Locating a pool liner leak requires a systematic approach involving water level monitoring, physical inspection, and the application of concentrated dye tracers to confirm breach points. Success depends on isolating the hydraulic system from the shell to determine if water loss is occurring through the liner material or the plumbing infrastructure.

Preparing for Professional Leak Detection

Before initiating the diagnostic process, you must establish a baseline for water loss. Environmental factors such as evaporation and splash-out can mimic leak symptoms, leading to unnecessary repairs. Accurate identification requires that the pool chemistry is balanced and the equipment is fully operational.

• Essential Diagnostic Equipment:




  • Pool-grade pH neutral dye or food coloring (dark colors like red or blue are preferred).
  • Grease pencil or waterproof chalk for marking potential sites.
  • Underwater goggles or a dive mask with high-clarity lenses.
  • A simple bucket for the bucket test (10-quart capacity minimum).
  • Fine-grit sandpaper or a patch kit for immediate repair once located.
  • Duct tape or specialized pool putty for temporary isolation.

• Prerequisites and Benchmarks:




  • Ensure the water level is stable before starting the formal "Bucket Test."
  • Average diagnostic duration: 2 to 4 hours.
  • Estimated budget for materials: $20–$50.
  • Technical Standard: Water loss exceeding 1/4 inch per 24-hour period (accounting for local evaporation rates) indicates a structural or liner leak.

Sequential Detection and Isolation Procedure

Step 1: Conduct the Bucket Test

The bucket test isolates the effects of evaporation from an actual liner breach. Place a 5-gallon bucket on the top step of the pool, ensuring it is weighted with rocks so the rim sits at least 3 inches above the waterline. Fill the bucket to match the pool’s water level exactly. Mark the water level on the inside of the bucket and the outside of the pool wall. Allow this to sit for 24 hours. If the pool water level drops significantly more than the water inside the bucket, you have confirmed a physical leak.

Step 2: Hydraulic System Isolation

Shut down the pump and filtration system for 24 hours. Observe the water level. If the level stops dropping once the pump is off, the leak is likely located in the plumbing (return lines, skimmer housing, or main drain). If the water continues to drop at a constant rate, the leak is located in the liner itself.

Pro-Tip: Check the skimmer mouth and light niches first. These two areas account for over 80% of all vinyl liner leaks due to the stress placed on the liner during installation and the vibration of the pool equipment.

Step 3: Physical Inspection and Dye Testing

Don your goggles and swim the perimeter of the pool. Inspect every square inch of the liner, paying close attention to seams, corners, and areas around pool accessories. Look for small tears, punctures, or separation between the liner and the faceplate of the skimmer. Once you suspect a location, turn off all pool jets to ensure the water is perfectly still. Slowly release a small amount of dye near the suspect area. If there is a hole, the suction created by the water escaping the pool will pull the dye directly into the breach.

Warning: Never use strong chemicals or dyes that may stain the liner permanently. Always ensure the dye is non-toxic and water-soluble.

Step 4: Verification of Multiple Leaks

Do not stop after finding the first leak. High-pressure pool environments often create secondary pinholes as the liner stretches and settles over time. Continue the dye test around the entire bottom of the pool and along the vertical walls to ensure the system is fully sealed before proceeding to the patching phase.

Technical Comparison of Leak Diagnostic Methods

Troubleshooting Common Diagnostic Failures

• Root Cause: Difficulty Seeing Dye Movement.


  • Actionable Fix: Ensure the pump is completely off for at least 30 minutes before dye testing to create a dead-calm environment. If visibility remains poor, increase the concentration of the dye or use a high-contrast color like blue in a light-colored liner.
• Root Cause: Inability to Isolate Plumbing from Liner.


  • Actionable Fix: Use a professional-grade inflatable pipe plug to seal the returns and skimmer lines. If the water stops dropping after plugging these, the liner is intact and the issue is restricted to the PVC piping.
• Root Cause: False Positives at Seams.


  • Actionable Fix: Vinyl seams often look like holes due to small pockets of air trapped behind the material. Press the area gently; if it is a true leak, the dye will be sucked in. If it is merely a gap behind the liner, the dye will simply wash away.

Frequently Asked Questions

Is it possible to patch a liner leak underwater?

Yes, modern vinyl repair kits include specialized underwater adhesives that cure in wet conditions. Ensure the area around the puncture is cleaned of any algae or debris before applying the patch.

How big of a hole is considered unrepairable?

A hole or tear larger than 3 to 4 inches generally compromises the structural integrity of the vinyl. In these instances, patching is a temporary solution, and full liner replacement is the recommended industry standard to prevent underlying wall erosion.

Can high groundwater levels prevent me from finding a leak?

High groundwater pressure can actually hide a leak by pushing water back into the pool through the hole, effectively stopping the outward flow. If you suspect groundwater interference, you must lower the water table using a pump or wait for a drier season to conduct an accurate test.

How do I know if the leak is in the skimmer housing?

Apply dye around the plastic faceplate and the corners of the skimmer. Because the skimmer is a separate component bolted to the wall, the gaskets frequently fail. If the dye is sucked into the space behind the faceplate, you need to replace the gaskets and re-seal the housing.

Professional Maintenance and Liner Longevity

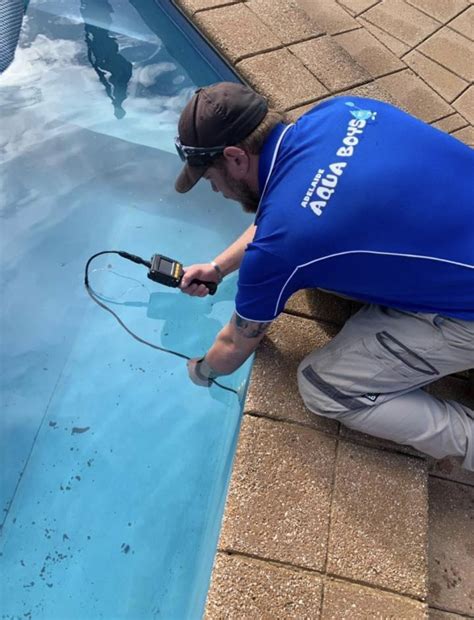

Maintaining proper water chemistry is the most effective way to prevent premature material degradation and seam failure. If you are unable to locate the source of the water loss through systematic dye testing, contact a certified leak detection specialist to utilize electronic acoustic equipment. Proactive monitoring ensures your pool remains a stable, watertight asset for years to come.
