Mastering The Craft: How To Cut Graphite Shafts Like A Professional Club Builder

Cutting a graphite golf shaft requires precision to maintain structural integrity and prevent carbon fiber delamination. By using high-speed abrasive cutting tools and applying protective masking tape, you can achieve a clean, square edge that preserves the shaft's intended flex profile and swing weight. Success hinges on a "light-pressure, high-RPM" approach to ensure the resin bond remains intact during the modification.

Precision Engineering: Tools and Environment for Graphite Modification

Before the first spark flies, you must understand that graphite shafts are not solid tubes; they are sophisticated layers of carbon fiber bonded with resin. Unlike steel shafts, which can be cut with a standard pipe cutter, graphite shafts are susceptible to crushing, splintering, and "broom-tailing" if subjected to the wrong mechanical forces. Proper preparation involves selecting tools that prioritize speed over torque.

Essential Equipment and Safety Gear

• High-Speed Abrasive Cutter: A dedicated club-building chop saw or a rotary tool (like a Dremel) equipped with a reinforced abrasive or diamond-coated wheel. Avoid toothed saw blades which catch and tear fibers.
• Protective Tape: High-quality 1-inch masking tape or painter's tape is mandatory for reinforcing the cut site.
• Measurement Tools: A 48-inch aluminum club ruler or a specialized shaft measuring gauge for 1/64-inch accuracy.
• Shaft Vise and Rubber Clamps: To secure the shaft without applying enough radial pressure to crack the walls.
• Personal Protective Equipment (PPE): N95 or P100 respirator mask (graphite dust is highly irritant), safety goggles, and nitrile gloves.
• Finishing Materials: 220-grit sandpaper or a fine-grit belt sander for deburring and "prepping" the tip for epoxy adhesion.

Prerequisite Standards and Benchmarks

• The 1/8-Inch Rule: Always remember that a grip cap adds approximately 1/8 of an inch to the final playing length. Failure to account for this results in a club that plays longer than intended.

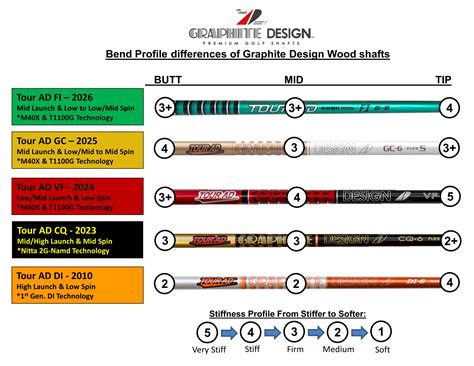

• Tip vs. Butt Trimming: Understand the manufacturer's trim chart. Tipping (cutting from the thin end) significantly increases stiffness, while butt trimming (cutting from the thick end) primarily adjusts playing length with minimal impact on the shaft's fundamental flex profile.
• Estimated Duration: 15–20 minutes per shaft, including measurement and finishing.
• Budget: DIY setups range from $50 (rotary tool) to $300+ (professional grade chop saws).

The Professional Workflow: Cutting Graphite Shafts Step-by-Step

Precision in club building is measured in millimeters. The following steps outline the industry-standard process for reducing the length of a graphite shaft while protecting the expensive composite materials.

Step 1: Determining and Marking the Cut Line

Measurement is the most critical phase. If you are cutting a raw shaft, you must cross-reference the manufacturer’s "Trim Code." For example, a driver shaft may require zero tipping, whereas a 3-wood shaft may require 1 inch of tipping to compensate for the heavier head weight.

1. Identify whether you are performing a "Tip Trim" or a "Butt Trim."
2. If butt trimming to a specific playing length, dry-fit the clubhead onto the shaft first.
3. Place the club in a standard lie-angle playing position and measure from the floor up the back of the shaft to the desired length.
4. Subtract 1/8 of an inch to account for the grip cap thickness.
5. Mark the shaft using a fine-point silver sharpie or by placing a piece of masking tape exactly at the cut line.

Pro-Tip: Wrap the tape tightly around the shaft 2-3 times, centering the cut mark on the tape. This provides lateral support to the carbon fibers, preventing them from "splintering out" as the blade exits the material.

Step 2: Securing the Shaft for Stability

Vibration is the enemy of a clean cut. If the shaft wobbles during the process, the abrasive wheel can bind, causing the shaft to shatter or the wheel to explode.

1. Place the shaft into a rubber vise clamp. Ensure the clamp is specifically designed for golf shafts to distribute pressure evenly around the circumference.
2. Position the clamp approximately 3 to 5 inches away from the cut line. This provides enough proximity for stability without interfering with the tool's path.
3. Tighten the vise only until the shaft cannot be rotated by hand. Excessive tightening can cause "crush failure" in thin-walled premium shafts.

Step 3: Executing the Abrasive Cut

When using a high-speed abrasive wheel, you are essentially grinding through the material rather than sawing it. This creates heat, so the speed of the cut is a balancing act.

1. Power on your cutting tool and allow it to reach full RPM before making contact.
2. Bring the wheel slowly toward the shaft. If using a handheld rotary tool, approach the shaft from the side.
3. The Rotation Technique: Do not try to cut straight through the shaft in one pass. Instead, make a shallow "score" around the entire circumference. Then, slowly deepen the cut while rotating the shaft (if using a chop saw) or moving the tool around the perimeter.
4. Maintain a light touch. Let the grit of the wheel do the work. If you see smoke, you are applying too much pressure or your blade is dull, which can lead to resin scorching.

Warning: Never use a tubing cutter (the tool with a triangular blade and rollers) on a graphite shaft. The concentrated radial pressure will collapse the internal architecture of the carbon fiber before it even begins to cut.

Step 4: Cooling and Inspection

Once the cut is complete, allow the shaft to air cool for a few seconds. Do not quench it in water, as rapid thermal contraction can stress the resin.

1. Remove the masking tape carefully, peeling it toward the cut end to avoid lifting any loose fibers.
2. Inspect the cut edge. It should be perfectly square and smooth.
3. Check for "delamination"—look for any separation between the layers of carbon. If the edge looks like the pages of a book being fanned out, the cut was too hot or the blade was too dull.

Step 5: Deburring and Finishing

The final step ensures the shaft fits perfectly into the clubhead or that the grip slides on without catching.

1. Use 220-grit sandpaper to lightly smooth the outer diameter (OD) of the cut edge. This creates a slight chamfer that prevents the edge from catching on the grip during installation.
2. Inspect the inner diameter (ID). Use a small round file or a rolled-up piece of sandpaper to remove any "burrs" or epoxy dams inside the tip.
3. For tip-trimming, you must also "prep" the surface by lightly sanding away the paint/clear coat on the area that will be inserted into the hosel. Stop as soon as you reach the dull grey/black graphite layer; do not sand into the fibers.

Material Properties and Tool Comparison Specs

Selecting the right tool depends on your volume of work and the value of the shafts being modified. The following table compares the most common methods used in the industry today.

Common Cutting Failures and Field Fixes

Even with the right tools, mistakes happen. Understanding the root cause of a failure allows you to salvage the component or adjust your technique for the next build.

• Failure: Longitudinal Splintering (Broom-tailing)


  • Root Cause: Using a toothed blade or failing to wrap the shaft in masking tape. The teeth "hook" the longitudinal fibers and pull them away from the resin matrix.
  • Actionable Fix: If the splintering is less than 1/4 inch, you may be able to trim an additional 1/2 inch (if the build specs allow) to reach clean material. If the splintering is extensive, the shaft is structurally compromised and must be discarded.
• Failure: Resin Scorching/Smell of Burning Plastic


  • Root Cause: The cutting wheel is dull or being pressed too hard into the shaft, creating friction heat that melts the epoxy resin holding the fibers together.
  • Actionable Fix: Immediately stop and let the shaft cool. Replace the abrasive wheel. Sand away the charred material. If the charring goes deeper than the surface, the tip may become brittle and snap during use.
• Failure: Out-of-Square Cut


  • Root Cause: Improperly aligned vise or shaky hand during a manual cut with a rotary tool.
  • Actionable Fix: Use a sanding block or a bench sander with a 90-degree guide to carefully square the end. Ensure you do not remove too much material, which would change the final playing length.

Frequently Asked Questions

Does cutting a graphite shaft change its flex?

Yes, cutting the tip of a graphite shaft (tipping) makes it play stiffer because you are removing the thinnest, most flexible part of the taper. Butt trimming also technically stiffens the shaft slightly by shortening the lever arm, but the effect is much less noticeable than tip trimming.

How much can I safely tip-trim a shaft?

Most manufacturers allow for 0 to 4 inches of tipping depending on the specific model. Always consult the manufacturer's trim chart; excessive tipping can move the "kick point" too high, resulting in a dead feel and a dangerously low ball flight.

Can I use a regular hacksaw to cut graphite?

While possible, it is not recommended. If you must use a hacksaw, use a "grit-edge" blade (which uses tungsten carbide grit instead of teeth) and apply very high speed with very low downward pressure to minimize the risk of catching a fiber.

Why is masking tape necessary if I am using a professional saw?

The tape acts as a sacrificial layer that holds the outer-most carbon fibers in place. As the blade exits the bottom of the shaft, the pressure tends to push the fibers outward; the tape provides the counter-pressure needed to keep the cut clean.

Do I need to re-weight the club after cutting the shaft?

Yes. Every 1/2 inch removed from the length of a club typically results in a loss of approximately 3 swing weight points. You may need to add lead tape to the head or use a heavier grip/weighted plug to restore the desired feel.
