Comprehensive Guide On How To Construct A Basketball Court

Constructing a high-performance basketball court requires precise site excavation, accurate sub-base grading to a 1% slope for drainage, and the installation of a fiber-reinforced concrete slab. Adhering to regulation dimensions—such as a 94-by-50-foot footprint for a full high school or collegiate layout—ensures structural integrity, eliminates water pooling, and provides an optimal playing surface.

Pre-Operation and Equipment Checklist

Building a durable basketball court demands meticulous pre-planning, heavy machinery operation, and strict adherence to civil engineering principles. Before breaking ground, you must evaluate local zoning laws, setback requirements, and utility locations to prevent costly pipeline strikes or permit violations.

• Essential Heavy Equipment and Tools: Caterpillar excavator, smooth-drum vibratory roller, laser level, plate compactor, concrete screed, magnesium floats, and heavy-duty line-stripping machines.
• Core Construction Materials: 3/4-inch crushed aggregate stone for the sub-base, Class II road base, 4,000 PSI fiber-reinforced concrete mix, expansion joint material, and acrylic sport coating systems.
• Mandatory Prerequisites: Geotechnical soil testing to verify subgrade load-bearing capacity, utility clearance via 811 services, and establishment of a precise 1% to 1.5% surface drainage slope.
• Time and Financial Benchmarks: Average project duration spans 3 to 5 weeks depending on weather conditions, with total material and labor investments scaling based on slab thickness and finishing systems.

Step-by-Step Construction and Installation Workflow

Step 1: Site Excavation and Earthwork Execution

Begin by clearing all topsoil, vegetation, and organic matter from the designated footprint, extending the excavation boundary at least 2 feet beyond the final court dimensions. Excavate to a depth that accommodates both the aggregate sub-base (typically 4 to 6 inches) and the concrete slab (4 to 6 inches), ensuring total depth reaches roughly 8 to 12 inches below finished grade. Proof-roll the exposed subgrade using a vibratory roller to identify and stabilize any soft, yielding spots.

Warning: Never lay aggregate over uncompacted organic topsoil, as differential settling will cause catastrophic cracking in the concrete slab within the first winter cycle.

Step 2: Sub-Base Installation and Compaction

Spread 3/4-inch crushed angular stone across the excavated subgrade in lifts no deeper than 3 inches, ensuring each lift is thoroughly compacted with a heavy plate compactor or vibratory roller. Achieve a minimum Proctor density of 95% across the entire sub-base layer to prevent future shifting. Grade the aggregate layer carefully to establish a consistent 1% slope running lengthwise or widthwise to facilitate rapid water runoff away from the playing surface.

Step 3: Formwork, Reinforcement, and Vapor Barrier

Construct robust wood or steel forms around the perimeter of the court, utilizing a laser level to verify exact elevations and pitch. Lay down a heavy-duty 6-mil polyethylene vapor barrier across the compacted aggregate to block capillary moisture migration through the concrete. Install a grid of #3 or #4 steel reinforcing rebar spaced 16 inches on center, elevated on plastic chairs to guarantee the steel sits squarely in the middle third of the future concrete slab.

Step 4: Concrete Pouring and Finishing

Order 4,000 PSI exterior-grade concrete infused with synthetic fibers for enhanced tensile strength and micro-crack resistance. Pour, screed, and float the concrete continuously to achieve a smooth, uniform surface while maintaining the engineered 1% drainage slope. Apply a light broom finish to provide optimal traction for athletic footwear once the acrylic surfacing is applied, and immediately install saw-cut control joints at designated intervals to direct inevitable thermal cracking.

Pro-Tip: Apply a specialized liquid curing compound immediately after finishing the concrete to retain moisture and maximize compressive strength during the critical 7-day hydration window.

Step 5: Surface Coating and Line Striping

Allow the concrete slab to cure for a minimum of 28 days before applying any coatings, then perform an acid wash or shot-blasting to remove efflorescence and open the concrete pores. Apply an acrylic resurfacer layer to fill microscopic voids, followed by multiple coats of pigmented acrylic color finish designed specifically for athletic courts. Mask the lines according to official regulation dimensions—such as high school, NCAA, or NBA standards—and apply textured line-marking paint using professional spray equipment.

Technical Specifications of Basketball Court Materials

Common Site Failures and Field Fixes

• Birdbaths and Water Puddles:


  • Root Cause: Inadequate slope grading or improper screeding during the concrete pour, leaving depressions greater than 1/16 inch.
  • Actionable Fix: Apply an acrylic patch binder mixed with fine silica sand to level low spots before applying the final color coats.
• Reflective Cracking:


  • Root Cause: Movement in the concrete slab due to thermal expansion transferring directly up through the rigid acrylic coating system.
  • Actionable Fix: Rout out the crack, clean thoroughly, fill with a flexible elastomeric crack sealant, and touch up with matching court paint.
• Surface Delamination:


  • Root Cause: Moisture vapor pressure pushing upward through the concrete slab or applying coatings over dirty, unetched concrete.
  • Actionable Fix: Scrape away loose material, mechanically grind or acid-etch the exposed concrete, prime with a moisture-tolerant bonding agent, and recoat.

Frequently Asked Questions

What are the official dimensions of a standard basketball court?

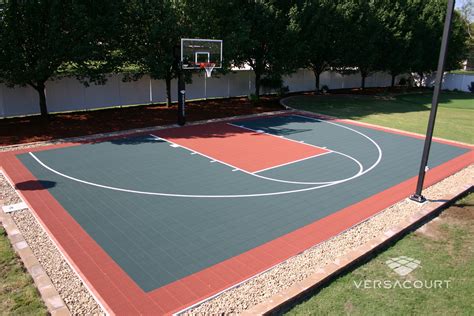

A regulation full-size basketball court measures 94 feet long by 50 feet wide for high school, collegiate, and professional play. For residential backyards or limited spaces, popular scaled-down dimensions include half-court layouts measuring 30 by 30 feet or 45 by 50 feet.

Can I build a basketball court over asphalt instead of concrete?

Yes, asphalt is a viable sub-base material that offers a slightly softer feel and lower initial installation cost than concrete. However, asphalt is prone to softening in extreme heat and developing edge-cracking, requiring more frequent maintenance and seal-coating than a properly reinforced concrete slab.

How long must I wait to play on a newly poured concrete slab?

You must allow the concrete slab to cure for a full 28 days to achieve its maximum structural compressive strength before heavy athletic use. Applying acrylic sport coatings too early traps curing moisture, leading to blistering and premature delamination of the surface layers.

What direction should the court be oriented for outdoor play?

Outdoor courts should ideally be oriented with the long axis running north to south. This orientation prevents either team from facing the low morning or evening sun directly in their eyes during gameplay.
