How To Clean TENS Unit Pads: The Ultimate Guide To Electrode Maintenance And Longevity

Maintaining the conductivity and adhesion of TENS unit pads requires a precise protocol involving distilled water rehydration and the removal of epidermal debris. By following a structured cleaning regimen every 3–5 uses, you can extend the lifecycle of self-adhesive hydrogel electrodes from the standard 10 applications to upwards of 30, ensuring consistent electrical impedance and therapeutic efficacy.

Pre-Procedure Requirements and Electrode Assessment

Before attempting to restore the adhesive properties of your Transcutaneous Electrical Nerve Stimulation (TENS) electrodes, it is vital to understand the material science at play. Most modern TENS pads utilize a specialized hydrogel—a network of polymer chains that are hydrophilic, meaning they are designed to hold water. This gel serves two primary functions: it acts as the adhesive agent and the conductive medium that transfers electrical pulses from the lead wires into the dermal layers. Over time, skin oils (sebum), dead skin cells (stratum corneum shed), and environmental dust accumulate on the surface, creating a resistive barrier that increases electrical impedance and decreases stickiness.

Essential Equipment and Preparation Checklist

• Cleaning Agents: Use only distilled water or specialized electrode reconditioning sprays. Distilled water is preferred over tap water because it lacks minerals and chlorine, which can chemically degrade the hydrogel’s polymer structure.
• Application Tools: A lint-free microfiber cloth or a soft-bristled nylon brush (such as a clean toothbrush). Never use paper towels or cotton balls, as they leave behind fibers that further compromise adhesion.
• Environment: A clean, dust-free surface for air-drying, away from direct sunlight or high-heat sources like hair dryers.
• Prerequisite Knowledge: Verify the pad type. This guide applies to self-adhesive hydrogel pads. If you are using carbon rubber electrodes with separate conductive gel, the cleaning process involves a complete soap-and-water wash, which differs from the "rehydration" method needed for sticky pads.
• Estimated Duration: 5 minutes for cleaning; 20–30 minutes for air-drying and setting.

Comprehensive Step-by-Step Electrode Restoration Workflow

The goal of cleaning TENS pads is not just "washing" them, but rather carefully removing surface contaminants while reintroducing moisture into the hydrogel matrix.

Step 1: Systematic Power-Down and Disconnection

Begin by ensuring the TENS unit is completely powered off. Disconnect the lead wires from the electrode pins. Attempting to clean pads while they are connected to an active or even a powered-down unit carries a risk of moisture entering the device’s internal circuitry or the lead wire jacks, which can lead to corrosion or short-circuiting. Once disconnected, gently peel the pads from their plastic storage film by lifting from the corner. Never pull on the lead wire tail (the "pig-tail") as this can detach the internal silver/carbon conductive layer from the adhesive gel.

Step 2: Mechanical Removal of Surface Contaminants

Before applying moisture, inspect the pad for visible debris like hair or lint. If the pad is heavily soiled with skin oils, use a tiny drop of unscented, lotion-free dish soap on your fingertip.

1. Dampen your fingertip with distilled water.
2. Gently rub the surface of the hydrogel in a circular motion.
3. For stubborn debris, use a soft-bristled brush to lightly agitate the surface.
4. Focus on the edges, where oils from handling tend to accumulate most significantly.

Warning: Do not submerge the pads in water. Excessive saturation can cause the hydrogel to swell and detach from its fabric or plastic backing, rendering the electrode useless.

Step 3: Targeted Rehydration of the Hydrogel

If the pads are clean but have lost their "tackiness" due to dryness, they require rehydration.

1. Apply 2–3 drops of distilled water directly onto the adhesive side of the pad.
2. Spread the water evenly across the surface using a clean finger.
3. Allow the water to sit for 15–20 seconds to be absorbed into the polymer matrix.
4. If the pad still feels dry, repeat the process with one drop at a time until the surface feels slightly "slimy" or tacky to the touch.

Pro-Tip: If you live in a very dry climate, adding a single drop of distilled water to the pads before placing them back on their plastic film after every use can prevent the hydrogel from becoming brittle and cracking.

Step 4: Managed Evaporation and Air-Drying

Place the pads on a clean, flat surface with the adhesive side facing up. Do not place them back on the plastic storage film while they are soaking wet, as this can trap moisture and encourage the growth of bacteria or mold. Allow the pads to air-dry naturally. The surface should transition from "wet" to "tacky." This usually takes between 10 and 20 minutes depending on ambient humidity. Avoid using any mechanical drying methods; high heat will break down the chemical bonds of the adhesive.

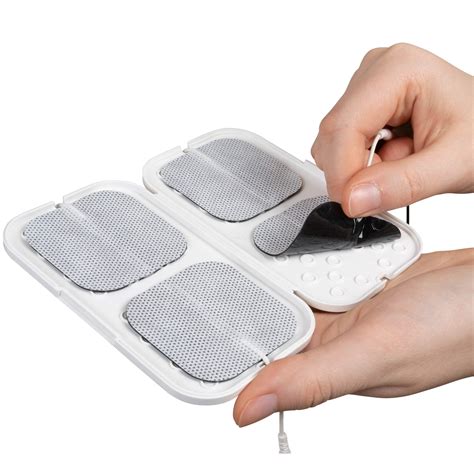

Step 5: Secure Storage and Film Re-application

Once the pads have regained their tackiness, place them back onto the "ON" side of their original plastic backing (usually marked to indicate which side the adhesive should touch). Ensure there are no air bubbles trapped between the pad and the film, as air exposure will dry the gel out over time. Seal the backing and pads inside a localized, airtight Ziploc bag. Store them in a cool, dark place. Some clinical practitioners suggest the refrigerator (not the freezer) for long-term storage to maintain moisture levels, though this is optional.

Technical Specifications and Material Performance Comparison

The frequency and method of cleaning depend largely on the material composition of the electrode. The following table outlines the technical thresholds for the most common TENS pad varieties found in clinical and home-use settings.

Troubleshooting Common Electrode Failures and Fixes

Even with regular cleaning, TENS pads will eventually reach their "end-of-life" phase. Identifying whether a pad needs a cleaning or a total replacement is essential for patient safety and treatment quality.

• Scenario: The TENS unit feels "stinging" or "biting" rather than a smooth pulse.




  • Root Cause: This is often caused by "hot spots." As the hydrogel dries out or becomes dirty, the electrical current is forced through a smaller surface area where the pad still makes good contact. This increases current density to painful levels.
  • Actionable Fix: Perform a full rehydration with distilled water. If the stinging persists, the internal conductive silver layer may be fractured, and the pad must be discarded immediately to avoid skin burns.

• Scenario: The pads slide off the skin during a 20-minute session.




  • Root Cause: Excessive accumulation of skin oils or use of body lotion prior to application.
  • Actionable Fix: Clean the pads with a drop of mild dish soap to emulsify the oils. More importantly, pre-clean the skin site with an alcohol prep pad or soap and water before the next application to ensure a clean interface.

• Scenario: The hydrogel is turning yellow or brown.




  • Root Cause: Chemical oxidation or significant bacterial buildup from prolonged use without cleaning.
  • Actionable Fix: This indicates the polymer has degraded chemically. Cleaning will not restore the pad. Discard the electrodes to prevent skin irritation or infection.

• Scenario: The unit shows an "Open Circuit" or "No Connection" error.




  • Root Cause: The connection between the lead wire pin and the electrode socket is loose, or the gel has become so dry it no longer conducts electricity.
  • Actionable Fix: First, ensure the pin is pushed firmly into the pad's tail. If the connection is tight, rehydrate the pad. If the error remains, the internal wiring of the pad has likely failed.

Frequently Asked Questions

Can I use rubbing alcohol to clean my TENS pads?

No, you should never use rubbing alcohol (isopropyl alcohol) on the adhesive side of TENS pads. Alcohol is a solvent that breaks down the chemical structure of the hydrogel, causing it to lose its stickiness permanently and significantly increasing electrical resistance. Use alcohol only to clean your skin before applying the pads, ensuring the skin is completely dry before placement.

How do I know when it is time to throw away my TENS pads?

You should replace your pads if the hydrogel is peeling away from the cloth backing, if there is a permanent discoloration, or if you have to turn the intensity of your TENS unit significantly higher than usual to feel the same sensation. These are signs that the impedance has reached an unsafe level.

Why won't my TENS pads stick even after I cleaned them?

If cleaning doesn't restore stickiness, the hydrogel polymer chains have likely reached their limit of moisture absorption or have been "clogged" by too many microscopic skin cells. At this stage, the material has lost its structural integrity and the pads must be replaced with a fresh set to ensure effective therapy.

Can I use a hair dryer to dry the pads faster?

Never use a hair dryer, heater, or direct sunlight to dry your TENS pads. High temperatures cause the hydrogel to shrink and become brittle. Air-drying at room temperature is the only safe way to preserve the moisture balance required for medical-grade conductivity.

Optimize Your Electrotherapy Results

Investing in high-quality replacement electrodes and a dedicated reconditioning spray can further enhance the performance of your TENS device. Proper maintenance ensures that every session provides the precise electrical stimulation needed for effective pain management and muscle recovery.
