How To Test A Fuel Pressure Regulator: Diagnostic Step-by-Step Guide

Testing a fuel pressure regulator requires inspecting the vacuum reference line for liquid gasoline, measuring static and dynamic fuel pressure with a mechanical gauge, and conducting a residual pressure hold test. A functioning regulator maintains system specification—typically 35 to 65 PSI for electronic port injection—and immediately increases pressure by 3 to 10 PSI when the vacuum reference hose is disconnected. Excess pressure loss exceeding 5 PSI within 45 minutes of engine shutdown indicates a ruptured diaphragm, stuck valve seat, or faulty check valve.

Diagnostic Safety Precautions and Equipment Checklist

Diagnosing a fuel pressure regulator involves working directly with flammable gasoline under hydraulic pressures ranging from 10 to nearly 100 PSI. Before breaking any hydraulic fuel connection, you must depressurize the fuel system, isolate electrical spark sources, and equip appropriate personal protective gear.

Modern electronic fuel injection (EFI) systems utilize two primary configurations: return-style systems (which mount the regulator on the fuel rail and utilize a vacuum reference line along with a return line to the tank) and returnless systems (which house the regulator inside the fuel tank module). The following checklist outlines the essential gear, technical specifications, and resource allocations required to execute a complete diagnostic evaluation on either system type.

Essential Diagnostic Gear & Tools

• Mechanical fuel pressure gauge kit featuring a 0–100 PSI bourdon-tube gauge, release valve, drain hose, quick-connect fittings, and inline Schrader valve adapters.
• Handheld manual vacuum pump equipped with an integrated pressure/vacuum gauge and flexible rubber adapter cones.
• Chemical-resistant nitrile gloves (15-mil thickness minimum) and ANSI Z87.1-approved impact/splash safety goggles.
• Line-clamping pliers (smooth-jawed fuel line pinch clamps designated for flexible rubber lines only).
• Automotive shop towels, fuel-rated containment tray, and a rating 10-B:C dry chemical or CO2 fire extinguisher placed within arm's reach.

Mandatory Prerequisite Standards & Specs

• Vehicle-specific factory service manual detailing exact Key-On Engine-Off (KOEO) and Key-On Engine-Running (KOER) target fuel pressure numbers.
• Standard engine manifold vacuum baseline reading (typically 17 to 21 inches of mercury [in-Hg] at sea-level idle).
• Fuel system safety depressurization protocol: Removal of the fuel pump relay or fuse followed by cranking the engine until it stalls.

Benchmark Metrics & Resource Allocations

• Estimated Diagnostic Duration: 45 to 60 minutes for return-style fuel rails; 60 to 90 minutes for returnless in-tank systems.
• Average Diagnostic Tool Investment: $45 to $130 for a professional-grade multi-port fuel injection pressure test kit.

Step-by-Step Fuel Pressure Regulator Diagnostic Workflow

Step 1: Perform the Vacuum Reference Hose Inspection

1. Turn off the ignition switch, set the parking brake, and pop the vehicle hood to access the engine bay.

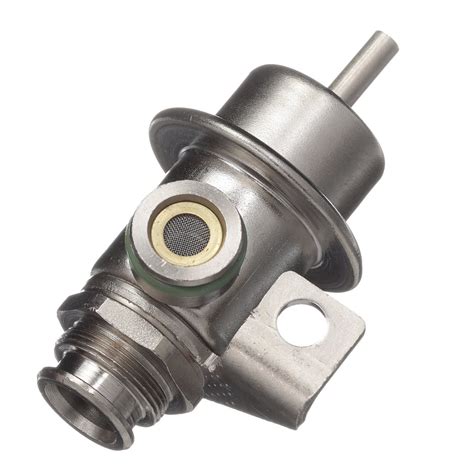

2. Locate the fuel pressure regulator. On return-style systems, it is mounted directly on the metallic fuel rail surrounding the intake manifold, featuring a rubber vacuum hose attached to its top housing.
3. Grasp the rubber vacuum reference hose at the regulator port and gently twist while pulling to disconnect it.
4. Inspect the inside of the vacuum hose and the regulator's vacuum port nipple using a flashlight. Check for liquid gasoline, dampness, or a strong raw fuel odor.
5. If liquid fuel drips from the vacuum port or is present inside the vacuum line, the internal rubber diaphragm has ruptured. Gasoline is being sucked directly into the engine intake manifold via vacuum.

Warning: Liquid fuel inside the vacuum reference hose confirms a structural failure of the internal diaphragm. Do not run the engine further under this condition, as severe cylinder wall washing, oil dilution, catalytic converter damage, and engine fire can occur. The regulator must be replaced immediately.

Step 2: Safely Connect the Fuel Pressure Test Gauge

1. Relieve residual hydraulic pressure in the fuel line. Locate the engine fuse box, pull the fuel pump relay, start the engine, and allow it to run until it starves and stalls. Crank the engine for an additional 5 seconds to bleed remaining pressure, then turn off the key.
2. Reinstall the fuel pump relay.
3. Locate the fuel rail test port, which is typically equipped with a Schrader valve resembling a tire valve stem. If no Schrader valve is present, install an inline tee-adapter between the main fuel feed line and the fuel rail.
4. Clean surrounding debris from the port area to prevent contaminant ingress into the injectors.
5. Thread the mechanical fuel pressure gauge hose adapter tightly onto the Schrader port. Ensure the internal valve depressor within the hose coupling engages the Schrader valve pin.
6. Route the gauge hose away from hot exhaust manifolds, cooling fans, and rotating serpentine belts. Position the gauge dial face so it can be easily read from the driver's seat or engine bay.

Pro-Tip: Place a shop towel beneath the Schrader valve fitting while threading the gauge line to catch minor fuel drops. Ensure the bleed line from your fuel pressure gauge is inserted into an approved container to safely vent trapped air out of the test hose before recording baseline numbers.

Step 3: Execute the Key-On Engine-Off (KOEO) Static Pressure Test

1. Insert the key into the ignition switch and turn it to the "ON" (RUN) position without cranking the starter motor.
2. Listen for the fuel pump to prime, which typically lasts 2 to 3 seconds. Watch the needle on the fuel pressure gauge rise during this priming window.
3. Record the peak static pressure value displayed on the dial once the pump stops priming.
4. Turn the ignition key to "OFF," wait 10 seconds, and turn back to "ON" to cycle the pump a second time. This ensures the line achieves maximum static pressure.
5. Compare your reading against the manufacturer's KOEO specification. Standard electronic port fuel injection systems should register between 35 and 65 PSI, whereas throttle-body injection (TBI) systems operate at much lower static pressures (10 to 15 PSI).
6. If the static pressure is significantly below specification, a restricted fuel filter, a weak fuel pump, or a fuel regulator valve stuck in the open position is indicated.

Step 4: Execute the Key-On Engine-Running (KOER) Dynamic Pressure Test

1. Start the engine and allow it to settle into a stable idle speed at normal operating temperature.
2. Observe the reading on the mechanical fuel pressure gauge. Note the continuous dynamic pressure at idle.
3. Under normal engine idle conditions, high intake manifold vacuum (17–21 in-Hg) pulls against the internal spring of a return-style regulator, opening the bypass valve slightly to return excess fuel to the tank.
4. As a result, the dynamic KOER idle pressure reading should drop approximately 5 to 10 PSI lower than the KOEO static pressure reading obtained in Step 3.
5. If the dynamic idle pressure does not drop below the static pressure reading, the regulator valve may be stuck closed, the return line may be crushed, or the regulator is not receiving an adequate vacuum signal.

Step 5: Perform the Vacuum Disconnect and Manual Vacuum Sweep Test

1. While the engine continues to idle with the pressure gauge connected, carefully detach the vacuum reference hose from the regulator port once again.
2. Cover the disconnected open end of the rubber vacuum hose with your finger or a plastic vacuum cap to prevent an unmetered engine vacuum leak.
3. Observe the mechanical fuel pressure gauge instantly as the vacuum line is removed.
4. The fuel pressure on the gauge must immediately jump upward by 3 to 10 PSI, matching or closely approaching the KOEO static pressure recorded in Step 3. This occurs because losing the vacuum signal allows the internal regulator spring to push the valve closed, restricting return flow and raising rail pressure.
5. Connect a handheld manual vacuum pump directly to the regulator's metal vacuum port.
6. Apply 5 in-Hg, 10 in-Hg, and 15 in-Hg of vacuum manually using the pump while watching the fuel gauge. The fuel pressure reading should drop smoothly and linearly in direct proportion to the vacuum applied (roughly 0.5 PSI drop per 1 in-Hg applied).
7. If the fuel pressure does not change when the vacuum hose is removed or when manual vacuum is applied, the internal spring mechanism or control valve inside the regulator has seized.

Pro-Tip: If fuel pressure spikes dramatically beyond maximum factory specifications when the engine is running, disconnect the fuel return line downstream of the regulator and direct it into a gas-can. If pressure drops back to normal, your regulator is fine and the vehicle's metal fuel return line is clogged or dented.

Step 6: Conduct the Fuel System Pressure Hold and Bleed-Down Test

1. Turn the engine off while keeping the fuel pressure gauge connected to the rail.
2. Start a timer immediately upon engine shutdown and monitor the gauge needle for 15 to 45 minutes.
3. System pressure will naturally drop slightly as the fuel cools, but a healthy regulator and check valve assembly should hold at least 80% of operating system pressure for a minimum of 20 minutes.
4. If pressure drops rapidly to zero PSI within 1 to 5 minutes, an internal leak path exists.
5. To isolate a faulty regulator from a leaking fuel injector or a failed fuel pump check valve, repeat the KOEO prime step. Immediately pinch off the rubber fuel return hose using smooth-jawed line-clamping pliers just as the pump stops.
6. If the rapid pressure drop stops when the return line is pinched shut, the fuel pressure regulator seat is leaking internal pressure back into the return line. If pressure continues to drop rapidly with the return line clamped, the issue lies in a leaking fuel injector or the fuel pump tank module check valve.

Fuel Pressure Regulator Diagnostic Specifications & Baseline Metrics

The table below outlines standard operational thresholds, expected pressures, and diagnostic behaviors across different automotive fuel injection architectures. Use these metrics to cross-reference your gauge readings.

Real-World Regulator Failure Modes and Field Diagnostic Fixes

Scenario 1: Fuel System Pressure Is Unusually High Across All Tests

• Root Cause: A stuck-closed internal regulator valve or a severe restriction (kinked, crushed, or debris-clogged line) within the fuel return pipe returning to the gas tank. Excess fuel cannot escape the fuel rail, forcing the pump to over-pressurize the injectors.
• Actionable Fix: Disconnect the fuel return hose downstream from the regulator outlet. Attach a temporary rubber fuel line to the regulator outlet port and route it directly into a gas container. Start the engine. If fuel pressure drops to factory specifications, clean or blow out the vehicle's hard metal return line using compressed air. If pressure remains high despite bypassing the line, replace the fuel pressure regulator assembly.

Scenario 2: Engine Runs Rich, Black Smoke from Tailpipe, Fuel in Vacuum Line

• Root Cause: Ruptured internal synthetic rubber diaphragm within the pressure regulator. Engine manifold vacuum actively draws raw fuel out of the rail through the reference line directly into the intake plenum, completely bypassing the controlled fuel injectors.
• Actionable Fix: Replace the fuel pressure regulator immediately. Remove and inspect spark plugs for carbon fouling or fuel saturation; clean or replace them as needed. Drain the engine oil pan and refill with fresh oil and a new filter, as raw fuel inevitably washes down cylinder walls and dilutes the crankcase oil, risking rod bearing destruction.

Scenario 3: Engine Exhibits Hard Hot Starts and Rapid Pressure Loss After Shutdown

• Root Cause: The regulator's internal ball valve or diaphragm seat has become pitted, worn, or coated in varnish deposits, preventing a positive hydraulic seal when the engine is shut off. Pressure bleeds past the seat into the return line, causing fuel in the rail to vapor lock when exposed to engine heat.
• Actionable Fix: Perform a isolation clamp test. Prime the fuel system, then instantly pinch the soft rubber return hose with smooth-jawed line pliers upon pump shutoff. If the pressure holding test normalizes and maintains pressure above 30 PSI for 30 minutes with the line clamped, replace the pressure regulator.

Scenario 4: Fuel Pressure Drops Dramatically Under Hard Acceleration

• Root Cause: A weakened internal regulator coil spring, or a regulator diaphragm that is sticking open when fuel flow demand increases. (Note: A clogged fuel filter or starving pump can mimic this issue).
• Actionable Fix: Monitor your fuel pressure gauge while performing a snap-throttle test (rapidly depressing the throttle pedal to 3,000 RPM in neutral) or while driving under load. When vacuum drops during sudden acceleration, regulator pressure must instantly rise. If pressure drops below idle baseline during throttle snaps, first change the fuel filter. If low pressure under load persists, perform a fuel pump volume/flow rate test before replacing the regulator.

Frequently Asked Questions

What are the most common symptoms of a failing fuel pressure regulator?

The most common symptoms include long engine cranking times, rich engine running conditions accompanied by black exhaust smoke, poor fuel economy, low engine power under load, and gasoline present inside the rubber vacuum reference line. You may also encounter Diagnostic Trouble Codes (DTCs) such as P0172 (System Too Rich) or P0171 (System Too Lean).

Can a bad fuel pressure regulator damage my engine?

Yes, a failed regulator can cause substantial secondary engine damage. A ruptured diaphragm pulls raw fuel into the intake, leading to cylinder wall washing, contaminated engine oil, damaged oxygen sensors, and melted catalytic converters. Conversely, a regulator stuck open causes a lean air-fuel mixture, leading to severe spark knock, high combustion temperatures, and burned valves.

How do I test a returnless system fuel pressure regulator?

Because returnless fuel systems house the regulator inside the fuel tank on the pump module without a vacuum line, you cannot test it via vacuum disconnection. You must measure dynamic fuel pressure at the rail Schrader port, then perform a volume flow test and an isolated pressure hold test at the fuel tank outlet to determine if the internal relief valve is dumping pressure early.

Can I test a fuel pressure regulator without a mechanical pressure gauge?

While a visual inspection of the vacuum line can confirm a ruptured diaphragm (if raw fuel is present), you cannot accurately diagnose pressure spring calibration, pressure bleed-down rates, or system delivery without a mechanical fuel pressure gauge. Guessing based on symptoms often leads to replacing functional fuel pumps or injectors unnecessarily.

Why does my fuel pressure drop immediately after turning the ignition key off?

Immediate fuel pressure bleed-down is caused by one of three component failures: a worn internal valve seat within the fuel pressure regulator allowing fuel to return to the tank, a leaking fuel injector dropping fuel directly into a engine cylinder, or a failed one-way check valve inside the fuel pump module assembly.
