How To Adjust Caster Alignment: Complete Professional Guide

Caster alignment determines the forward or backward tilt of the steering axis when viewed from the side of the vehicle, directly influencing straight-line stability, high-speed tracking, and steering wheel returnability. Adjusting caster requires a precise alignment rack or turnplates, bubble gauges or digital angle finders, and systematic manipulation of upper control arm shims, strut rods, or eccentric cam bolts to bring measurements within factory specifications—typically ranging from 2 to 5 degrees positive for modern passenger cars.

Pre-Operation & Equipment Checklist

Properly executing a caster adjustment demands meticulous preparation, stable workspace conditions, and strict adherence to suspension geometry principles. Before touching any suspension fasteners, you must verify that the vehicle's chassis, steering linkage, and wheel bearings are entirely free of excessive wear or play. Any worn ball joints, tie rod ends, or control arm bushings will introduce measurement drift and render your caster adjustments inaccurate or unstable under road loads.

• Essential Gear, Tools, and Materials:


  • Professional four-post alignment rack or certified turnplates paired with rear slip plates.
  • Digital angle finder or magnetic bubble caster/camber gauge equipped with a wheel adapter.
  • Heavy-duty floor jack and jack stands rated for vehicle weight.
  • Comprehensive socket and wrench set (including metric and SAE deep impact sockets).
  • Torque wrench capable of handling high-torque chassis fasteners (up to 150 lb-ft or more).
  • Suspension shim assortment or eccentric cam bolt kits specific to the vehicle make and model.
  • Penetrating oil, wire brush, and threadlocker (such as medium-strength blue Loctite).
• Mandatory Prerequisite Knowledge and Standards:


  • Working knowledge of vehicle suspension types (double wishbone, MacPherson strut, multilink, or solid axle with radius arms).
  • Understanding of positive versus negative caster angles and cross-caster specifications designed to counteract road crown.
  • Factory service manual access for target ride height specifications and OEM alignment value ranges.
• Estimated Budget and Duration Benchmarks:


  • DIY time investment: 2 to 4 hours depending on fastener corrosion and suspension type.
  • Professional equipment cost (if purchasing home garage gauges and turnplates): $200 to $600.
  • Shop professional rate equivalent: $100 to $250 per alignment service.

Step-by-Step Caster Adjustment Workflow

Step 1: Vehicle Preparation and Ride Height Verification

Begin by parking the vehicle on a completely flat, level surface or drive it onto the alignment rack turnplates. Ensure the fuel tank is full or adequately balanced, and check that tire pressures match the manufacturer placard specifications down to the exact PSI, as improper pressure directly alters vehicle attitude and suspension geometry. Bounce each corner of the vehicle three times to settle the suspension bushings, then verify that the ride height measures equally left-to-right according to factory service guidelines.

Warning: Never attempt to measure or adjust alignment angles with the vehicle suspended on a frame lift, as drooped suspension alters control arm angles and invalidates all caster and camber readings.

Step 2: Initial Measurement and Sweep

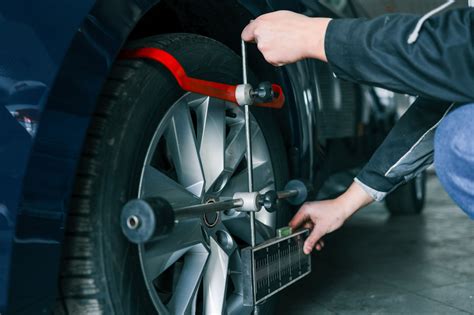

Attach the magnetic digital angle finder or mechanical bubble gauge directly to the wheel hub face or wheel rim lip using the provided adapter. Lock the steering wheel in the dead-center position using a steering wheel holder tool. Zero your digital gauge on the turnplate. To measure caster, turn the front wheels inward by exactly 20 degrees (utilizing the turnplate scale), zero the gauge or note the baseline angle, then turn the steering wheel outward by 20 degrees in the opposite direction. Calculate the mathematical difference between these two readings to establish your baseline caster angle. Repeat this process for both the left and right front wheels.

Step 3: Mechanical Adjustment Based on Suspension Design

Locate the specific adjustment mechanism engineered into your vehicle's suspension. For double wishbone or unequal-length control arm systems featuring shim stacks on the upper control arm cross-shaft, remove or add shims to alter the fore-and-aft position of the spindle. Adding a shim to both front and rear positions alters camber, but adding a shim exclusively to the front while removing one from the rear shifts the upper ball joint backward, thereby increasing positive caster. For strut-type suspensions utilizing slotted strut towers or eccentric cam bolts on the lower control arms, loosen the mounting hardware and slide the control arm or strut mount along its adjustment axis until the target angle is achieved.

Pro-Tip: When shifting upper control arm shims, remember the golden rule: moving an equal thickness of shims from the front bolt to the rear bolt increases positive caster without significantly altering camber.

Step 4: Fastener Torquing and Final Sweep Verification

Once the desired caster specification is locked in, use a calibrated torque wrench to tighten all control arm bolts, eccentric cams, or shim-stack retention nuts to the exact manufacturer torque specifications. Lower the vehicle off the turnplates or roll it backward and forward twenty feet to relax the tires and suspension bushings, then roll it back onto the turnplates. Perform a final measurement sweep to confirm that tightening the fasteners did not cause the adjustment components to slip out of position. Document your final before-and-after readings for future reference.

Suspension Adjustment Mechanisms and Parameters

Common Alignment Failures and Field Fixes

• Root Cause: Frozen, rusted, or seized upper control arm shims or lower eccentric cam bolts that refuse to turn or slide.


  • Actionable Fix: Apply a heavy-application penetrating fluid (such as Kroil or PB Blaster) to the threaded studs and mating surfaces, let it sit for 30 minutes, and apply gentle heat with a propane or acetylene torch if working on non-rubber-bushed steel brackets. Replace severely corroded hardware with new OEM-spec zinc-coated fasteners.
• Root Cause: Persistent steering pull to one side despite caster and camber reading within nominal factory specifications.


  • Actionable Fix: Check for radial tire pull by swapping the left and right front wheel assemblies. If the pull follows the tire, the issue is tire construction (ply steer), not alignment geometry. Additionally, verify cross-caster settings; ensure the side with less positive caster is on the passenger side to compensate for standard road crown.
• Root Cause: Alignment slips out of specification shortly after driving over bumps or potholes.


  • Actionable Fix: Inspect alignment hardware for missing lock washers, stripped threads, or torque values below factory thresholds. Ensure eccentric cam lobes are resting against positive stop tabs rather than floating freely in slotted subframe channels.

Frequently Asked Questions

What is the difference between positive and negative caster?

Positive caster tilts the upper steering axis backward toward the driver, which naturally centers the steering wheel and improves high-speed directional stability. Negative caster tilts the steering axis forward toward the front bumper, making steering extremely light and twitchy while reducing stability, which is rarely used outside of specific industrial or vintage applications.

Why is cross-caster important during an alignment?

Cross-caster is the numerical difference between the left and right side caster measurements. Technicians intentionally dial in slightly more positive caster on the right front wheel compared to the left front wheel to counteract the natural slope or crown of standard roads, preventing the vehicle from drifting toward the shoulder.

Can I adjust caster without specialized alignment equipment?

While you can approximate caster angles using a simple smartphone digital angle finder and a plumb bob, achieving factory-tolerance precision is exceptionally difficult without turnplates to measure steering angles accurately through a 40-degree sweep. Professional alignment racks or portable laser alignment systems are strongly recommended for accurate adjustments.

How does changing caster affect my tire wear?

Caster has a minimal direct impact on tire tread wear compared to toe and camber. However, incorrect caster can cause wandering, which leads to driver corrective steering inputs that indirectly accelerate shoulder wear and increase rolling resistance.
