How To Access Battery On Serengeti 48 Volt Ebike Manual: Step-by-Step Removal And Safety Guide

Accessing and removing the integrated 48V battery on a Serengeti electric bike requires disengaging the frame lock cylinder, depressing the secondary safety catch, and carefully sliding the pack along its internal frame rail. Following proper electrical isolation, terminal inspection, and physical handling procedures prevents structural rail binding and guards against short circuits across the 54.6V peak charge terminals. This technical guide outlines the complete mechanical and electrical protocol for accessing your Serengeti 48V battery safely.

Pre-Operation Safety Protocols and Tool Checklist

Accessing the 48-volt lithium-ion battery on a Serengeti e-bike is a fundamental routine maintenance procedure required for off-board charging, winter storage, or electrical troubleshooting. Serengeti 48V e-bikes generally utilize an integrated or semi-integrated downtube battery architecture. In this design, the battery housing fits flush inside the aircraft-grade aluminum frame to lower the center of gravity and protect the internal cells from environmental impacts.

Because a 48V battery pack operates at a nominal 48 volts and reaches a maximum charge potential of 54.6 volts across its internal 13S (13 series cell) configuration, short circuits or improper handling present significant electrical and thermal risks. Before attempting to unlock or extract the battery assembly, you must prepare a clean, dry workspace and verify that the drive system is entirely de-energized.

Essential Gear, Tools, and Prerequisites

• Original Ignition/Lock Keys: Standard high-security barrel or tubular keys matching the frame's lock cylinder serial code.
• Digital Multimeter (CAT III 600V rated): Required for verifying terminal voltage and checking state-of-charge (SOC) accuracy.
• Electrical Contact Cleaner Spray: Fast-evaporating, non-conductive solvent spray designed for high-amp electrical pins.
• Dielectric Grease (Silicone-based): Inhibits oxidation, moisture intrusion, and micro-fretting corrosion on male/female terminal connectors.
• Microfiber Towels & Soft Bristle Brush: For clearing dirt and trail debris from the frame recess, locking pin hole, and guide rails.
• Nitrile Safety Gloves & Eye Protection: Mandatory personal protective equipment when handling high-capacity lithium-ion power sources.

Execution Benchmarks

• Estimated Task Duration: 10 to 15 minutes for standard extraction and terminal maintenance.
• Target Voltage Range: 41.0V (100% depleted / BMS low-voltage cutoff limit) to 54.6V (100% fully charged state).
• Environmental Operational Thresholds: Perform extraction between 50°F and 77°F (10°C to 25°C). Avoid battery manipulation in freezing environments or direct ambient temperatures exceeding 104°F (40°C).

Step-by-Step Guide to Removing and Accessing the Serengeti 48V Battery

Step 1: Powered System Shutdown and Key Insertion

1. Locate the digital handlebar display (SW900, KD21C, or equivalent color LCD console used on Serengeti models) and press and hold the primary Power Button for three seconds to shut down the controller.
2. Verify that all auxiliary electrical draws, including integrated LED headlamps and tail lamps, are fully powered off.
3. Locate the key cylinder switch on the side of the lower downtube, typically positioned near the head tube junction on the left side of the frame.
4. Insert the OEM key fully into the lock cylinder keyway. Ensure no sand or grit prevents the key from seating to its full depth.

Warning: Never attempt to unlock or remove the 48V battery pack while the display unit is powered on or while the battery charger is actively plugged into the charging port. Extracting a live circuit can cause electrical arcing across the main discharge blades, pitting the copper contacts and damaging the internal Battery Management System (BMS) discharge MOSFETs.

Step 2: Disengaging the Frame Lock Cylinder

1. Push the key inward slightly while turning it clockwise (or counter-clockwise depending on the specific Serengeti frame model year, usually 180 degrees) toward the "UNLOCK" position.
2. Listen for an audible mechanical click, which indicates that the solid metal locking pin has fully retracted out of the battery casing's retention notch.
3. Keep gentle pressure on the key if your specific cylinder lock uses an internal spring-return mechanism, ensuring the locking pin remains clear of the battery shell.

Pro-Tip: If the key feels tight or resists turning, do not apply excessive rotational force; doing so can snap the key inside the lock core. Instead, apply gentle inward pressure on the top cap of the battery pack with your free palm to relieve friction binding between the internal lock deadbolt and the battery case latching point.

Step 3: Depressing the Secondary Anti-Drop Safety Latch

1. Support the weight of the battery pack with your primary hand. Serengeti e-bike frames feature a built-in mechanical anti-drop safety catch designed to prevent the heavy 48V pack from falling onto the ground when the key lock is turned.
2. Locate the secondary safety release lever or press-button tab. On integrated Serengeti models, this is located underneath the upper edge of the downtube or integrated directly into the upper battery handle recess.
3. Depress and hold the safety catch tab inward to pull the secondary retention hook away from the frame structure.

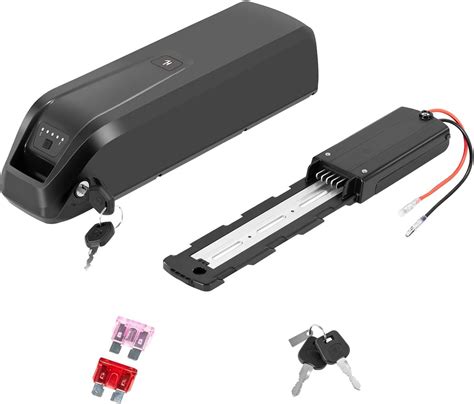

Step 4: Extracting the Battery Assembly from the Frame Rail

1. While maintaining pressure on the secondary safety catch, pivot the top section of the battery pack outward away from the downtube frame channel by approximately 15 to 20 degrees.
2. Lift the entire battery casing upward and away at an angle to unhook the lower alignment tabs from the bottom frame shoe and controller junction socket.
3. Use two hands to support the pack once it clears the frame. A typical Serengeti 48V 13Ah–17.5Ah battery pack weighs between 7.5 lbs and 9.5 lbs (3.4 kg to 4.3 kg).
4. Place the extracted battery horizontally on a clean, stable, non-conductive surface such as a wooden workbench or rubber mat.

Warning: Do not drop or subject the lithium-ion pack to sudden mechanical impacts. Mechanical shock can fracture internal spot-welded nickel strips connecting the 18650 or 21700 cylindrical cells, leading to internal short circuits and potential thermal runaway events.

Step 5: Inspecting and Servicing the 48V Interface Terminals

1. Direct a flash light into the cavity of the frame downtube to inspect the bottom discharge terminal connector (commonly a 4-pin or 5-blade male interface).
2. Inspect the female terminal ports on the base of the removed battery pack for signs of arc pitting, corrosion, bent pins, or thermal discoloration (darkening/melting of the plastic housing).
3. Spray non-conductive electrical contact cleaner onto a microfiber cloth and clean the contact surfaces of both the male frame pins and the battery female receiver slots.
4. Apply a thin layer of dielectric silicone grease over the metal blade connections using a clean cotton swab to seal out water, prevent oxidation, and reduce friction during future dockings.

Technical Specifications & Electrical Thresholds for Serengeti 48V Battery Packs

The following reference matrix outlines the electrical, mechanical, and physical parameters governing standard 48V battery systems installed across the Serengeti e-bike model range. Refer to these thresholds when conducting diagnostics or purchasing replacement components.

Troubleshooting Common Battery Removal and Power Access Issues

Key Turns, But Battery Remains Stuck in Downtube Rail

• Root Cause: Thermal expansion, dirt build-up along the aluminum slide rails, or structural binding between the battery casing rubber seals and the internal frame cavity.
• Actionable Fix: Apply moderate downward palm pressure to the top face of the battery pack while simultaneously turning the key. This compresses the lower rubber vibration dampers and releases tension on the lock deadbolt. If accumulated grit is binding the side channels, spray a small amount of silicone lubricant spray along the fine gap between the battery shell and the aluminum frame edge, wait two minutes, and gently pry outward using a non-marring nylon trim tool.

Lock Cylinder Key Fails to Turn or Feels Completely Seized

• Root Cause: Oxide corrosion inside the pin-tumbler mechanism, road grit entering through an uncovered key slot, or a slightly bent key.
• Actionable Fix: Flush the keyway using dedicated electrical contact cleaner or lock lubricant. Inject Teflon-based dry powder lubricant or dry graphite spray directly into the key slot. Do not use petroleum-based lubricants like standard WD-40, as they attract road dust and create a gummy residue inside the cylinder tumblers over time. Allow the lubricant to penetrate for three minutes, reinsert the key, and gently tap the key head with a light rubber mallet while attempting micro-rotations to free stuck tumblers.

Battery Unlatches, But System Fails to Power On After Reinstallation

• Root Cause: Incomplete terminal engagement, oxidized contact blades, tripped BMS safety circuit, or blown main blade fuse.
• Actionable Fix: Remove the pack and re-inspect the bottom terminal block. Ensure that no debris is blocking the female pin slots. Reinsert the battery pack firmly until you hear the clear latching sound of both the safety catch and key lock pin. If power is still absent, locate the rubber cover on the underside of the battery housing concealing the inline blade fuse. Remove the fuse and inspect the internal filament for a break; replace it with a matching 30-amp automotive fuse if blown. To reset a sleeping BMS, connect the original battery charger to the wall and plug it into the battery port for 10 seconds to wake the internal circuit board.

Moisture or Corrosion Visible on 4-Blade Terminal Block

• Root Cause: Riding in heavy rain without protective sealing, high-pressure washing of the frame, or storing the e-bike in high-humidity environments.
• Actionable Fix: Immediately isolate the battery system by removing the pack. Disconnect all external power sources. Use a 99% isopropyl alcohol solution on a nylon bristle detail brush to scrub away green or white copper-oxide build-up from the connector blades. Allow the assembly to air-dry completely for at least one hour. Coat the clean metal surfaces lightly with dielectric silicone compound before re-engaging the pack with the frame connector shoe.

Frequently Asked Questions

How do I charge my Serengeti 48V e-bike battery once it is removed from the frame?

Place the removed battery horizontally on a non-flammable surface away from direct sunlight. Plug the 3-prong or coaxial output barrel of your factory-supplied 48V (54.6V max output) charger into the battery charging port first, then plug the charger’s AC power cable into a standard grounded 110V/220V wall outlet. Verify that the indicator LED on the power brick changes from green to solid red, confirming that the charging cycle has begun.

What should I do if I lost the keys to my Serengeti e-bike battery lock?

Check the metal face of the lock cylinder or your original owner's documentation for a key code stamp (typically a 3-digit or 4-digit code). Contact Serengeti customer support or an authorized e-bike dealer to order a replacement key cut to that code. If no code is present, a certified locksmith can decode the lock tumblers on-site, or the lock cylinder assembly must be drilled out using a 1/8-inch cobalt drill bit through the core center and replaced with a new locking mechanism kit.

Can I run my Serengeti e-bike on a different voltage battery, such as a 52V pack?

Modifying your Serengeti drive system to operate on a 52V battery is not recommended unless your specific controller and display firmware explicitly support a 60V maximum input voltage limit. Operating a standard 48V motor controller on a 52V system (which reaches 58.8V at full charge) can trigger high-voltage error codes, overheat the controller capacitors, invalidate your manufacturer warranty, and potentially damage the motor logic board.

How should I store the Serengeti 48V battery during winter or extended periods of disuse?

Remove the battery pack from the bike frame and store it in a temperature-controlled environment between 50°F and 68°F (10°C to 20°C). Charge or discharge the battery to a nominal storage level of roughly 50% to 70% state-of-charge (approximately 47.0V to 49.0V on a multimeter). Do not leave the battery at 100% full charge or completely drained (0%) for extended periods; check and top off the voltage every 45 days to maintain cell longevity.

Optimize Your E-Bike Performance

Proper maintenance of your Serengeti 48V battery frame lock and terminal interfaces ensures consistent power delivery and protects your drive system investment over thousands of miles. For technical assistance, authentic factory replacement parts, or upgrade support, consult your authorized Serengeti service manual or contact an certified e-bike technician.
